Products / GNSS Antenna Module

GNSS Antenna Module

ASA-1513U7 Series

ASA-1513U7 Series in the ASA-1513 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
ASA-1513U7 Series

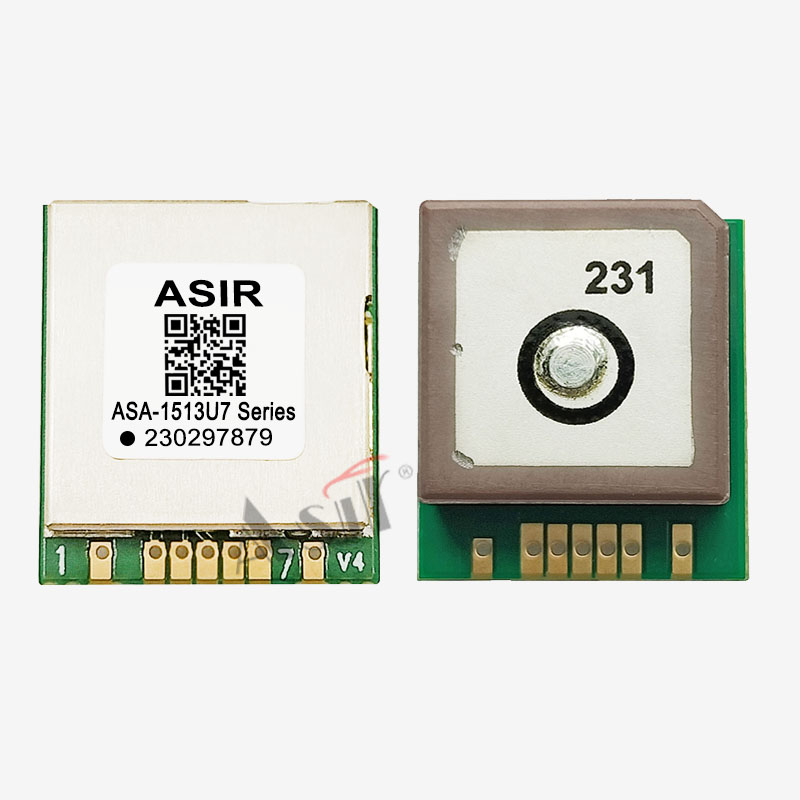

ASA-1513U7 Series view 1
ASA-1513U7 Series view 2
ASA-1513U7 Series view 3

Quick Selection Notes

  • Main chip: Ublox UBX7020

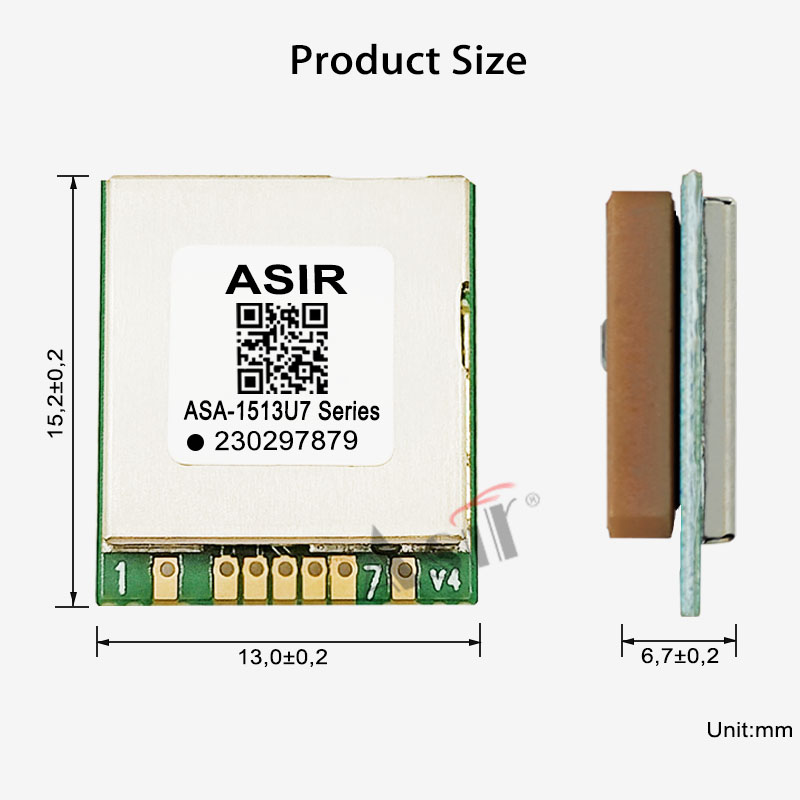

  • Size: 15.2 mm x 13.0 mm x 6.7 mm
  • Built in LNA achieves high sensitivity
  • Built in sound table filter to enhance anti-interference performance
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
  • Support high update rate

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipUblox UBX7020
Size15.2 mm x 13.0 mm x 6.7 mm
FeatureBuilt in LNA achieves high sensitivity
FeatureBuilt in sound table filter to enhance anti-interference performance
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
FeatureSupport high update rate

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

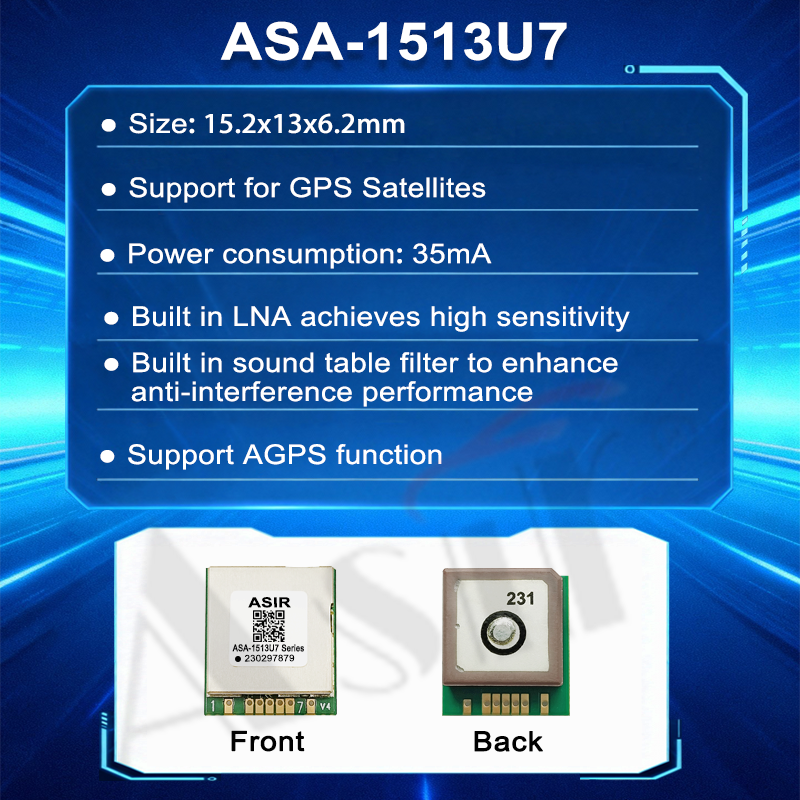

ASA-1513U7 Series technical detail 1
ASA-1513U7 Series technical detail 2
ASA-1513U7 Series technical detail 3
ASA-1513U7 Series technical detail 4

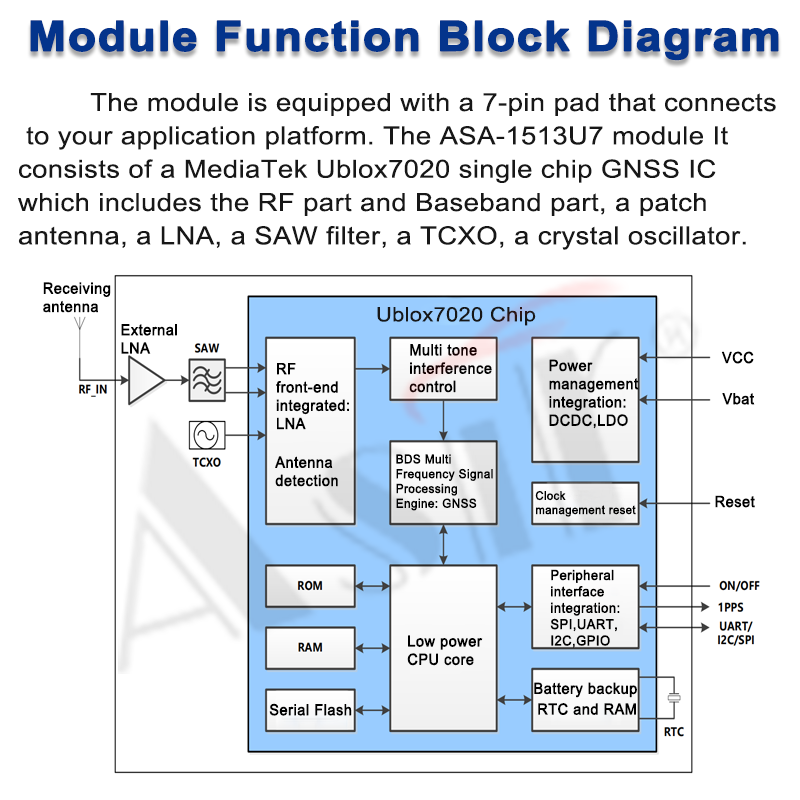

ASA-1513U7 Series technical detail 5

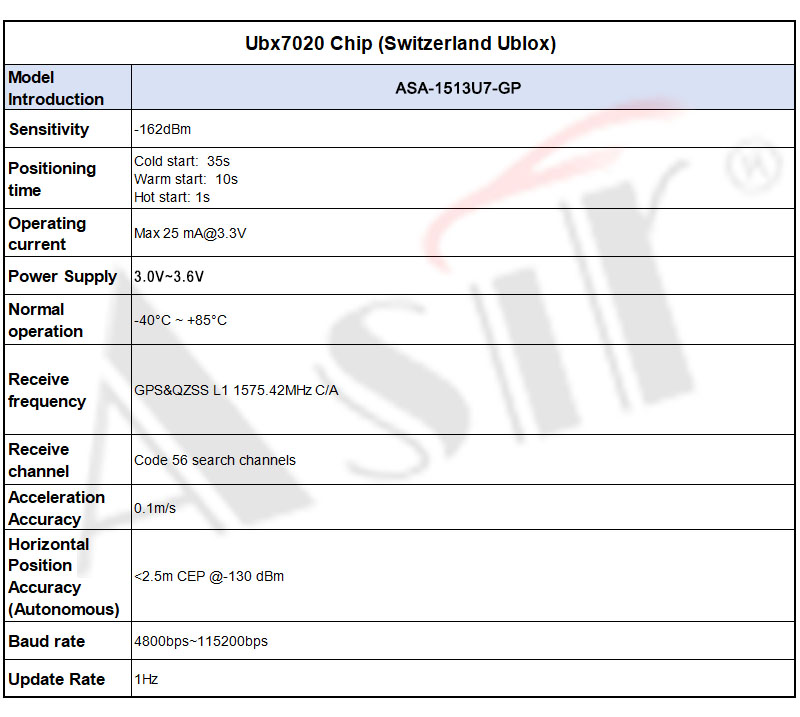

ASA-1513U7 Series technical detail 6

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-1513U7 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.
