Products / GNSS Antenna Module

GNSS Antenna Module

ASA-1818M1F Series

ASA-1818M1F Series in the ASA-1818 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
ASA-1818M1F Series

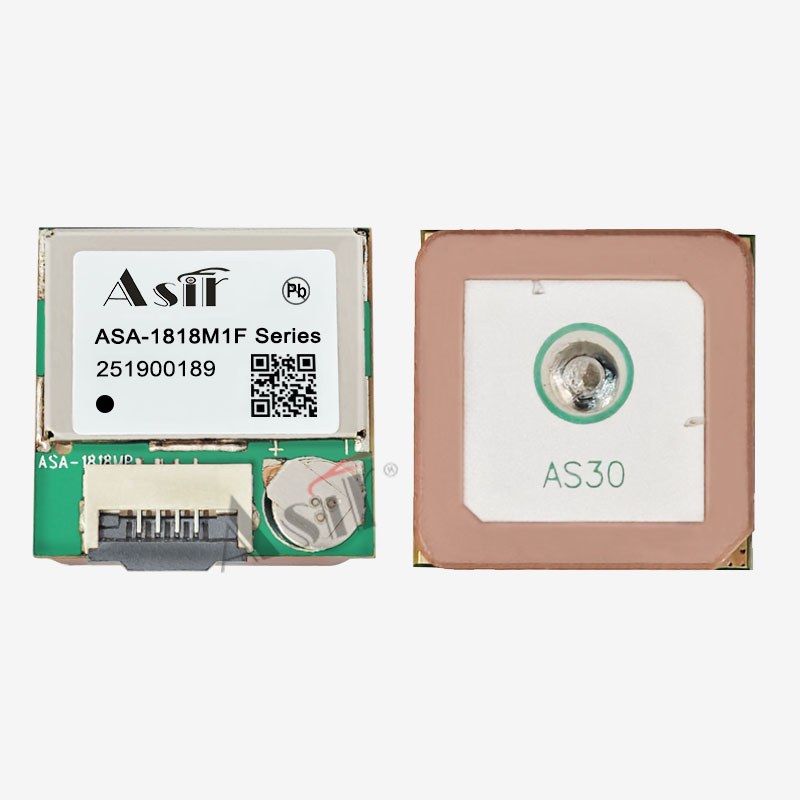

ASA-1818M1F Series view 1
ASA-1818M1F Series view 2
ASA-1818M1F Series view 3
ASA-1818M1F Series view 4

Quick Selection Notes

  • Main chip: MTK AG3331
  • Size: 19.4 mm x 18.2 mm x 7.2 mm
  • Supply voltage: 3.0V~3.6V
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
  • Built in sound table filter to enhance anti-interference performance
  • Built in LNA achieves high sensitivity

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK AG3331

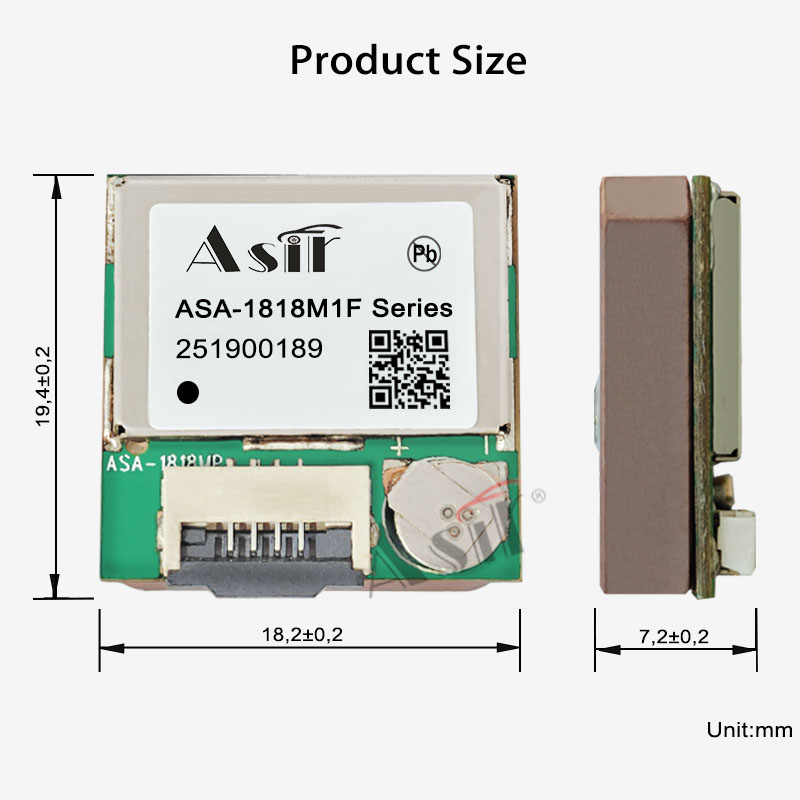

Size19.4 mm x 18.2 mm x 7.2 mm
Supply voltage3.0V~3.6V
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
FeatureBuilt in sound table filter to enhance anti-interference performance
FeatureBuilt in LNA achieves high sensitivity

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

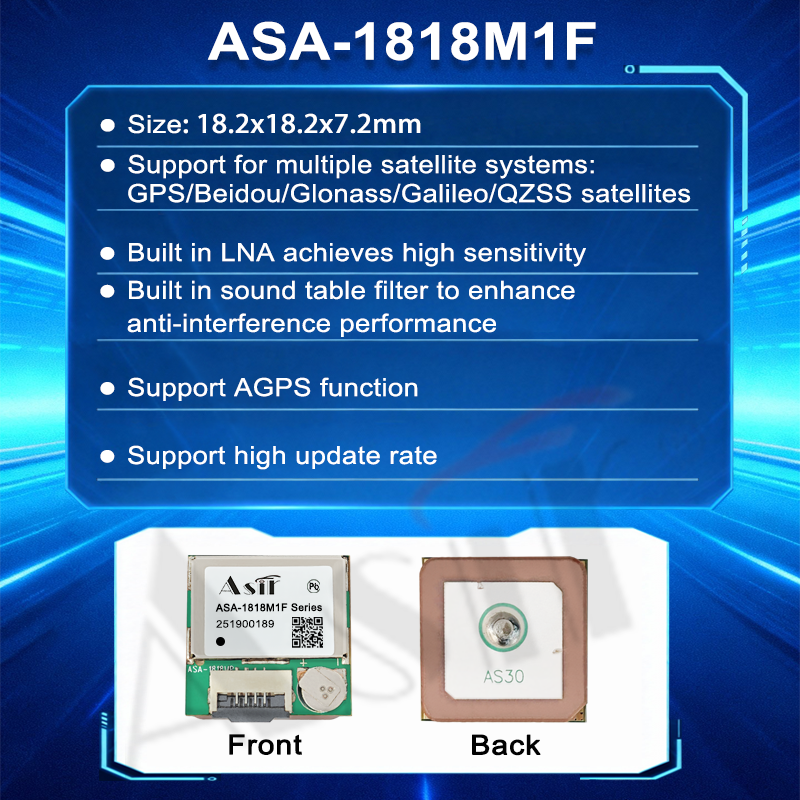

ASA-1818M1F Series technical detail 1
ASA-1818M1F Series technical detail 2

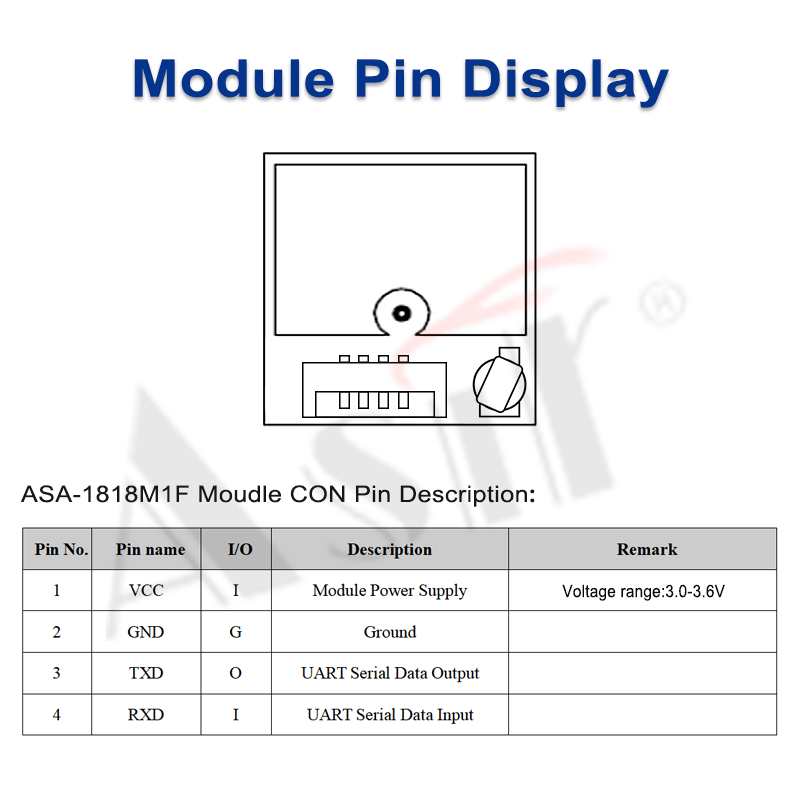

ASA-1818M1F Series technical detail 3
ASA-1818M1F Series technical detail 4

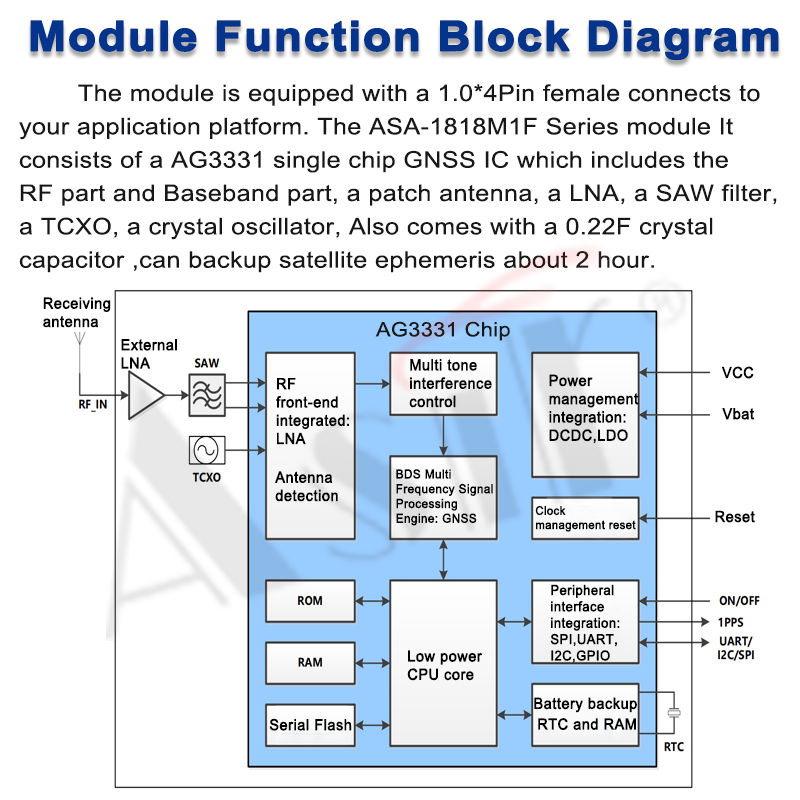

ASA-1818M1F Series technical detail 5

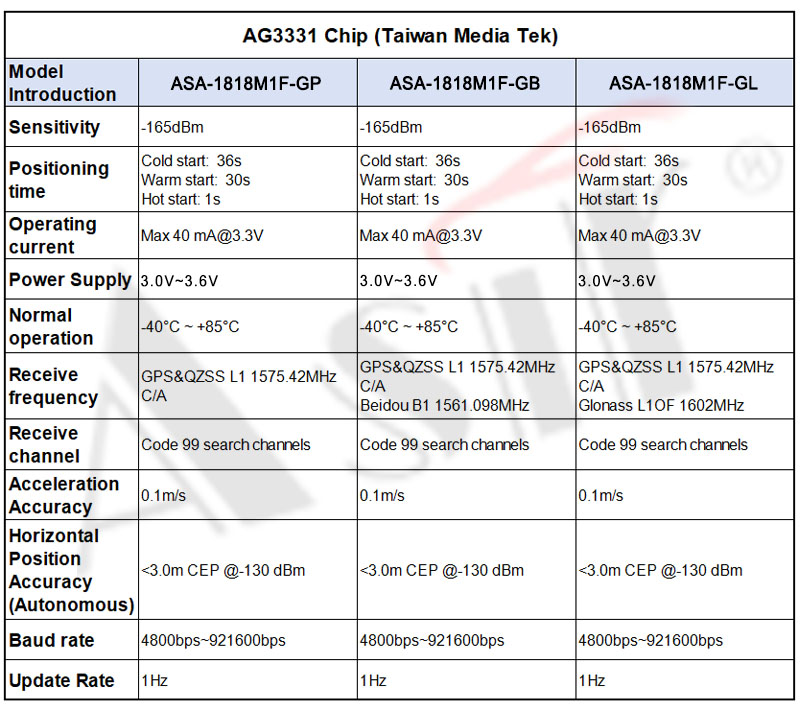

ASA-1818M1F Series technical detail 6

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-1818M1F Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
