Quick Selection Notes
- Main chip: BK1662

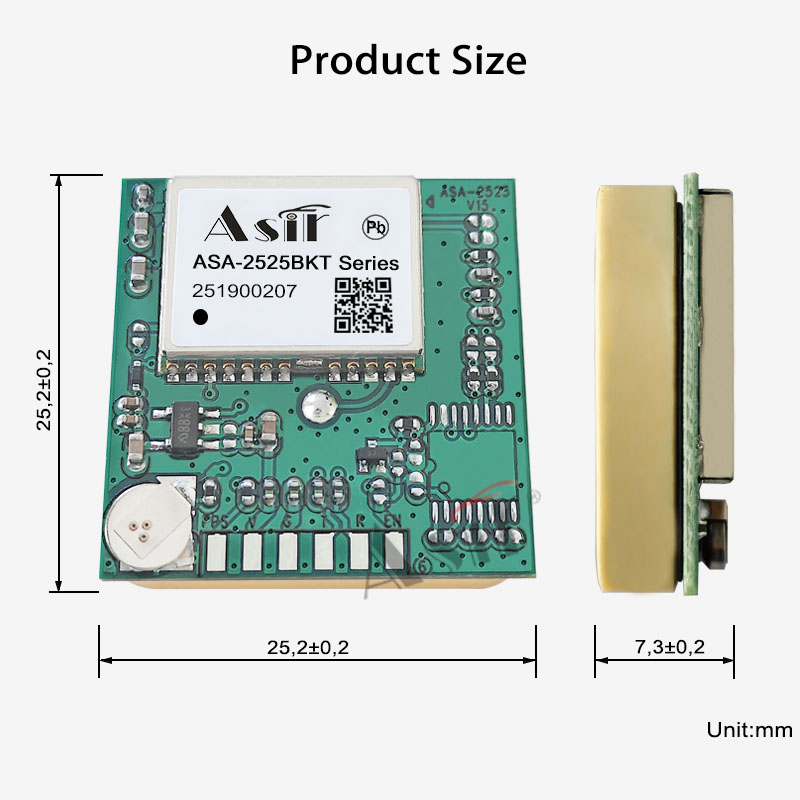

- Size: 25.2 mm x 25.2 mm x 7.3 mm
- Supply voltage: 3.0V ~ 5.5V
- Supports TTL/RS232 output
- Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, IRNSS, QZSS satellites
- Support AGNSS function
Authorized Export DistributorProducts / GNSS Antenna Module
GNSS Antenna Module

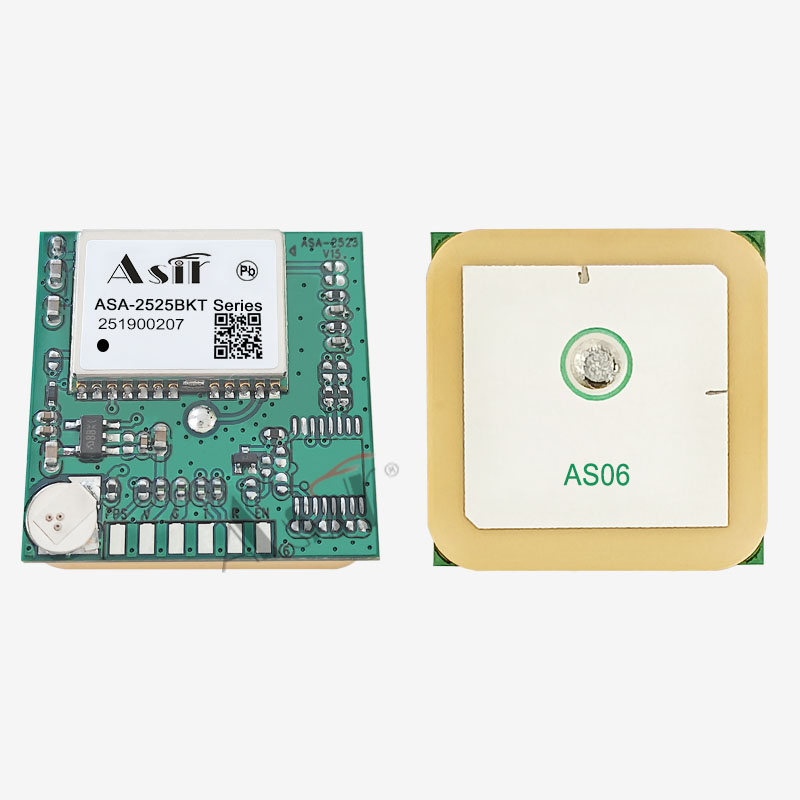

ASA-2525BKT Series
ASA-2525BKT Series in the ASA-2525 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.
Typical Applications
- Vehicle terminals
- Portable GNSS equipment
- Asset trackers
- Navigation products

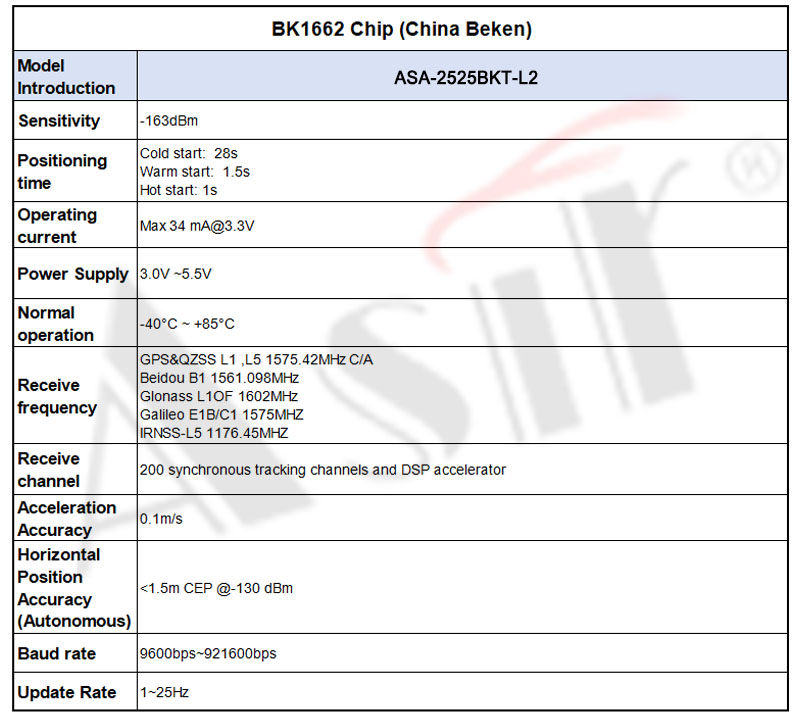

Technical details
Specifications to confirm before order
Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.
Main chipBK1662
Size25.2 mm x 25.2 mm x 7.3 mm
Supply voltage3.0V ~ 5.5V
FeatureSupports TTL/RS232 output
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, IRNSS, QZSS satellites
FeatureSupport AGNSS function
Product details

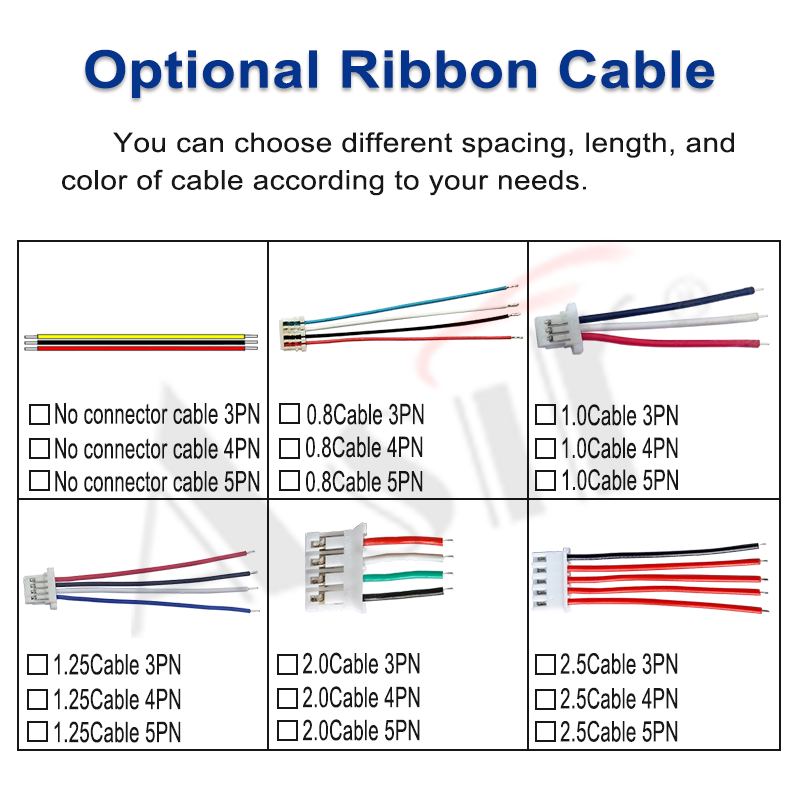

Additional images and drawings
Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.
Procurement checklist
What to include in your inquiry

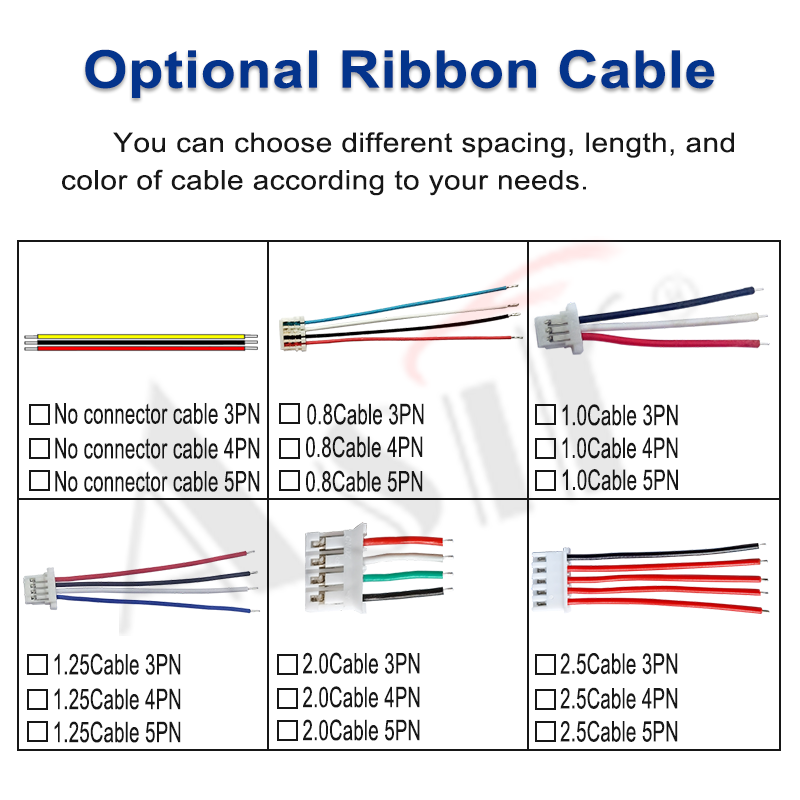

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request
RFQ for ASA-2525BKT Series
Ask for price, sample, stock and datasheet
Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.
