Products / GNSS Antenna Module

GNSS Antenna Module

ASA-2727M2Z Series

ASA-2727M2Z Series in the ASA-2727 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
ASA-2727M2Z Series

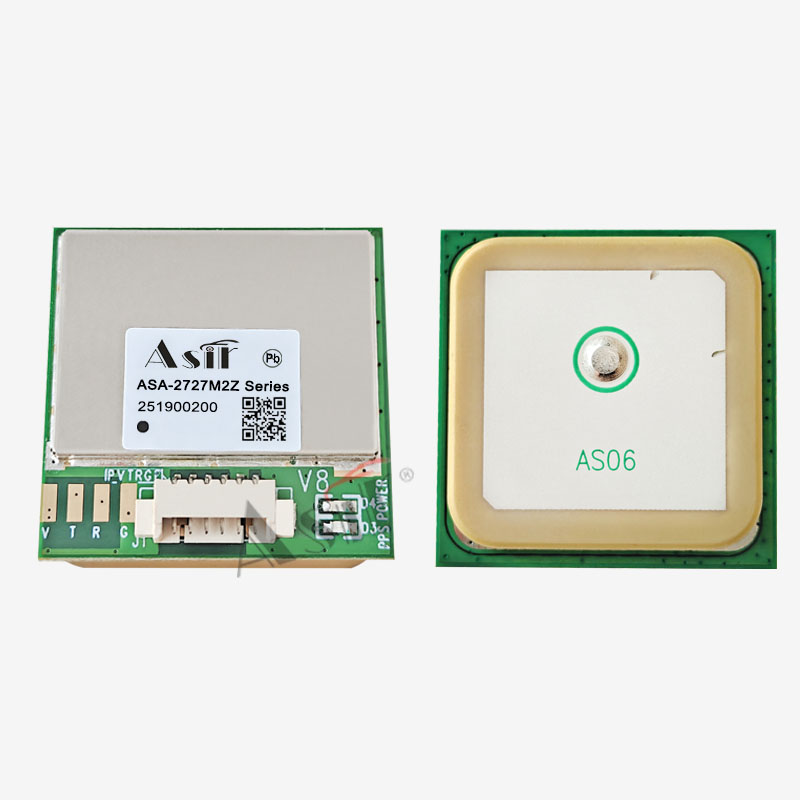

ASA-2727M2Z Series view 1
ASA-2727M2Z Series view 2
ASA-2727M2Z Series view 3
ASA-2727M2Z Series view 4
ASA-2727M2Z Series view 5
ASA-2727M2Z Series view 6

Quick Selection Notes

  • Main chip: MTK AG3352

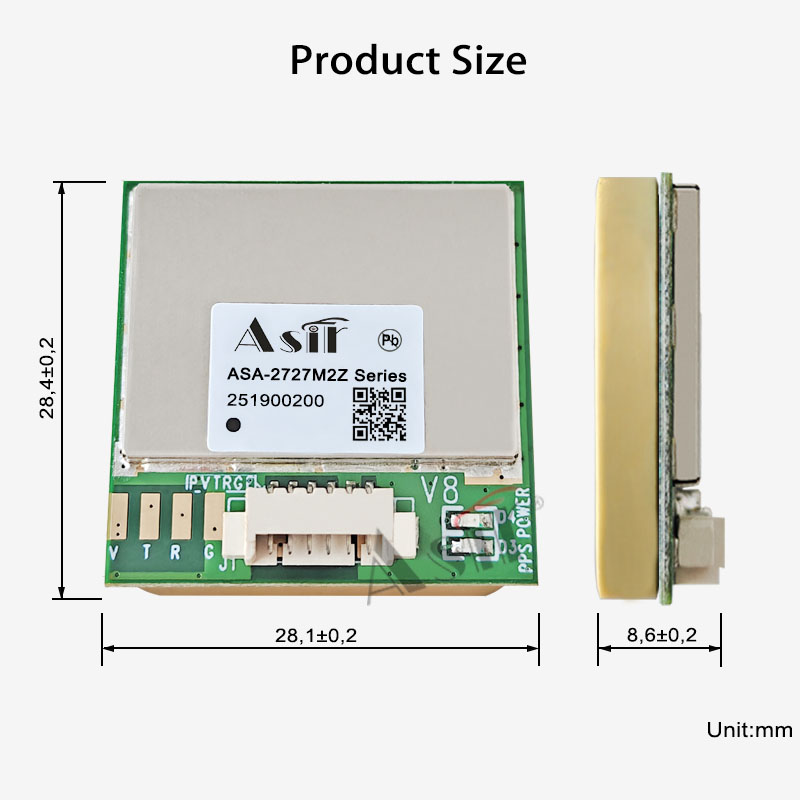

  • Size: 28.1 mm x 28.4 mm x 8.6 mm
  • Supply voltage: 3.0V ~ 5.5V
  • The PCB is optional with or without the connector socket
  • Supports USB/TTL/RS232 output
  • The accuracy of 1.5 meters is better, performs better under weak signals, and is less prone to disconnection

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK AG3352
Size28.1 mm x 28.4 mm x 8.6 mm
Supply voltage3.0V ~ 5.5V
FeatureThe PCB is optional with or without the connector socket
FeatureSupports USB/TTL/RS232 output
FeatureThe accuracy of 1.5 meters is better, performs better under weak signals, and is less prone to disconnection

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

ASA-2727M2Z Series technical detail 1
ASA-2727M2Z Series technical detail 2
ASA-2727M2Z Series technical detail 3
ASA-2727M2Z Series technical detail 4
ASA-2727M2Z Series technical detail 5

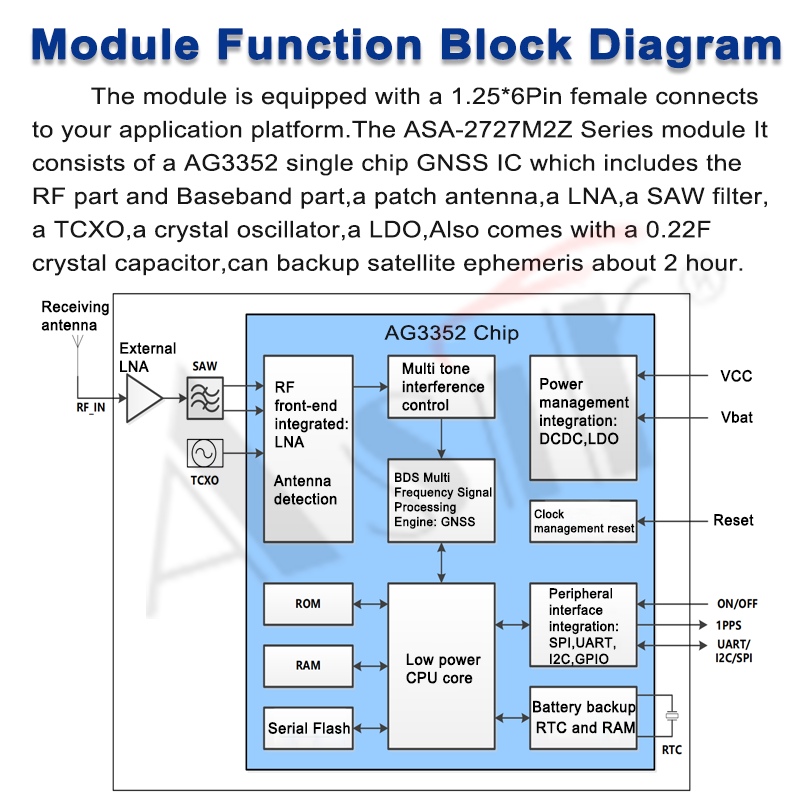

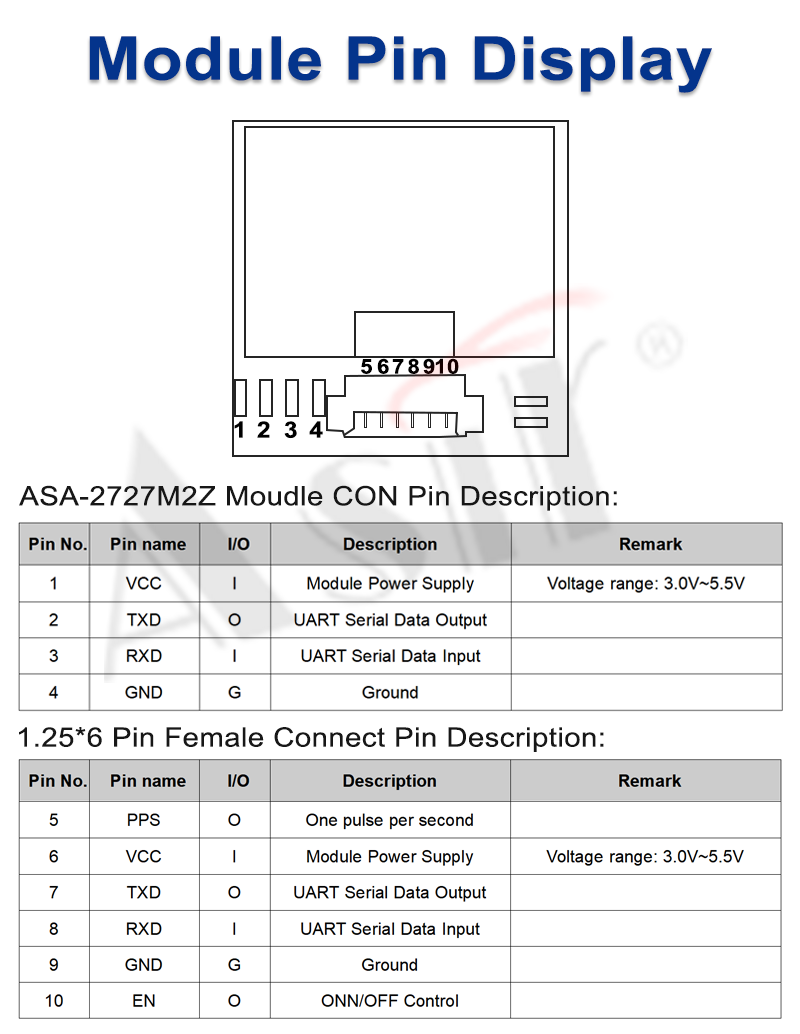

ASA-2727M2Z Series technical detail 6

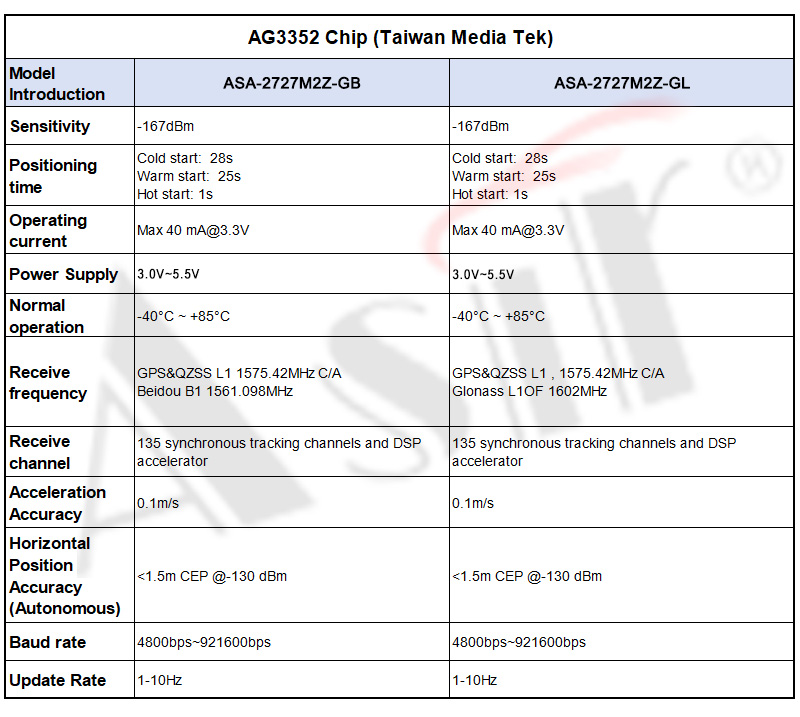

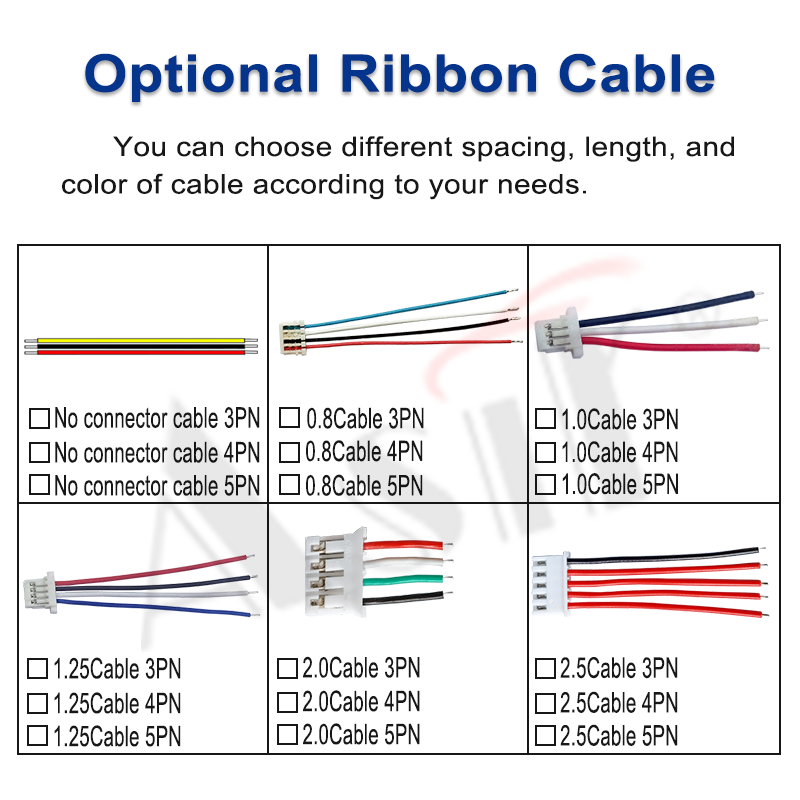

ASA-2727M2Z Series technical detail 7
ASA-2727M2Z Series technical detail 8

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-2727M2Z Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
