Products / GNSS Antenna Module

GNSS Antenna Module

ASA-2727U8Z Series

ASA-2727U8Z Series in the ASA-2727 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet

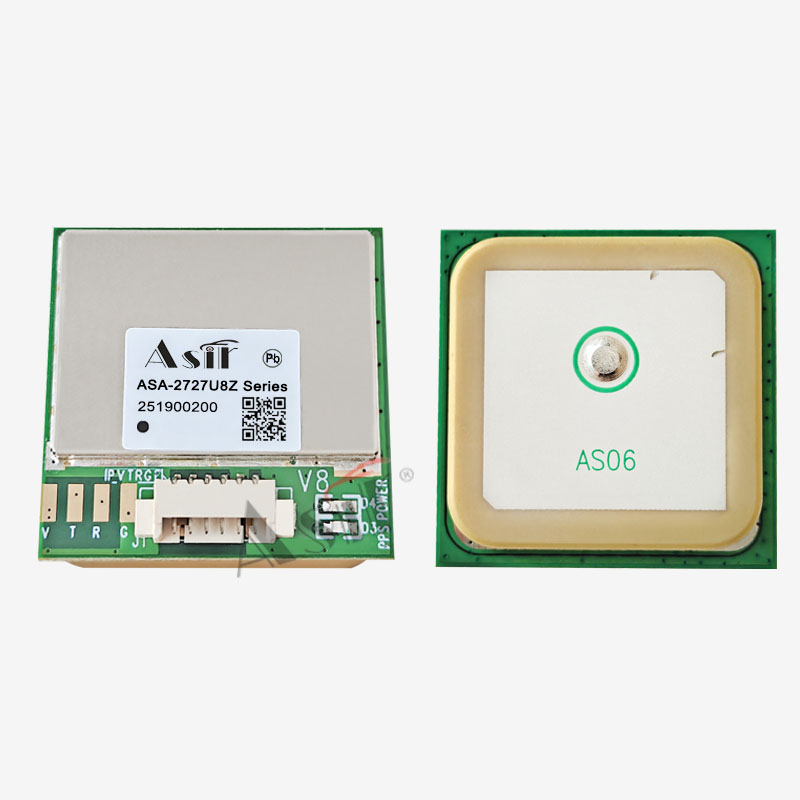

ASA-2727U8Z Series
ASA-2727U8Z Series view 1

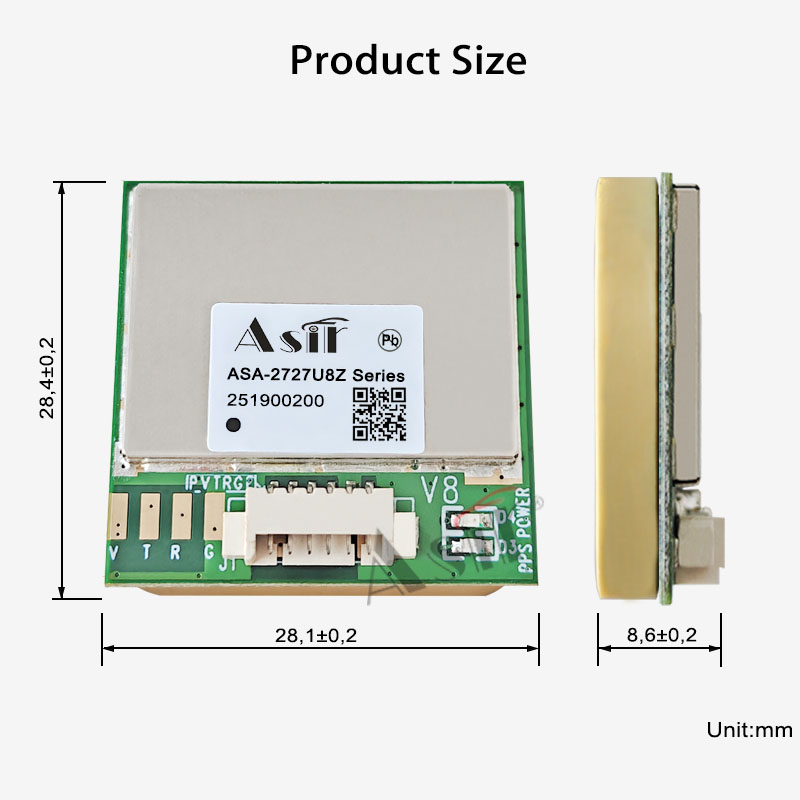

ASA-2727U8Z Series view 2

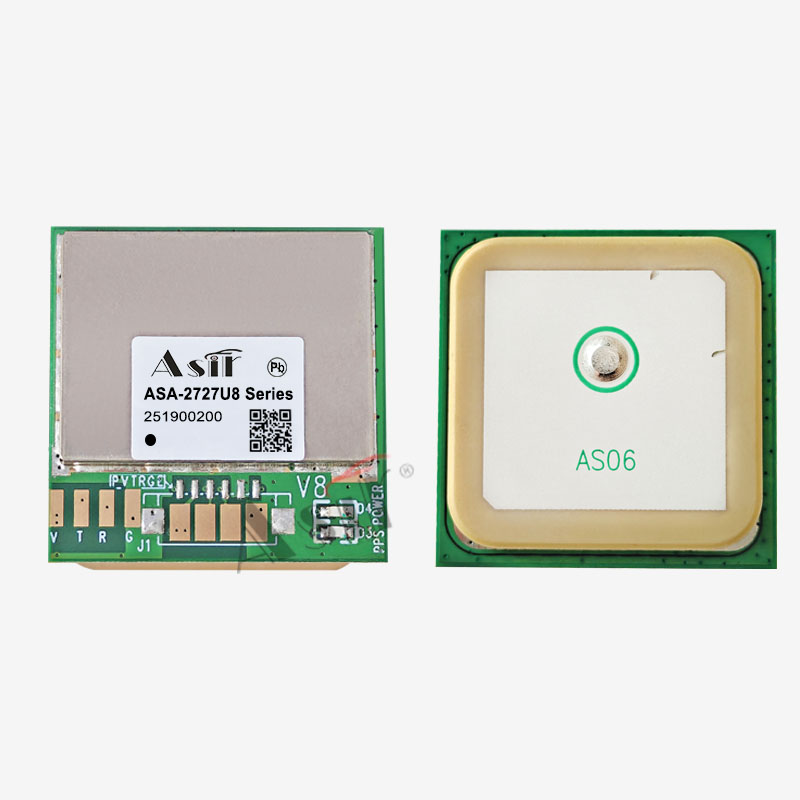

ASA-2727U8Z Series view 3
ASA-2727U8Z Series view 4
ASA-2727U8Z Series view 5

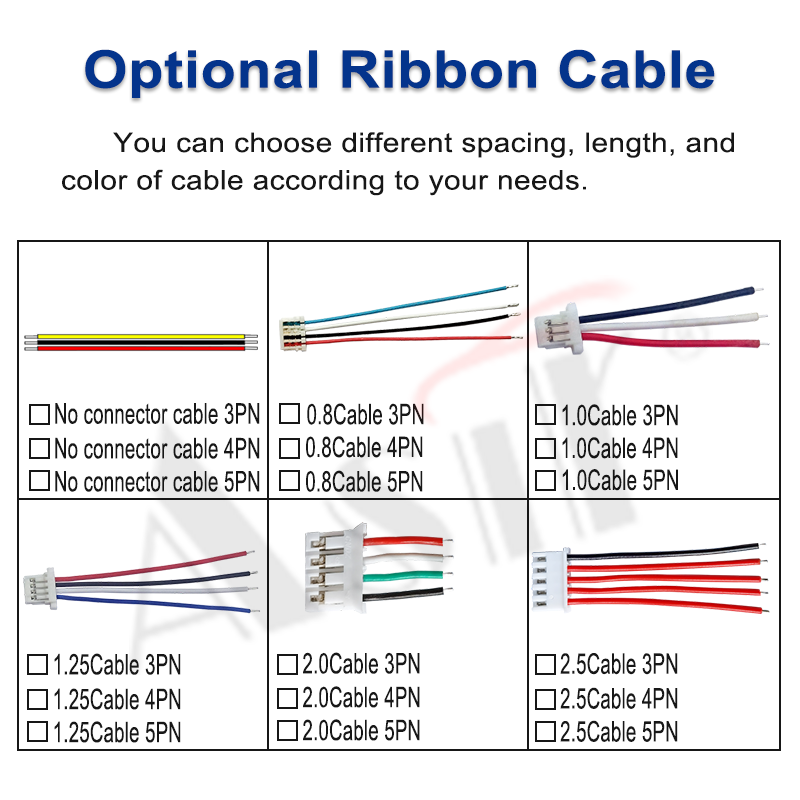

ASA-2727U8Z Series view 6

Quick Selection Notes

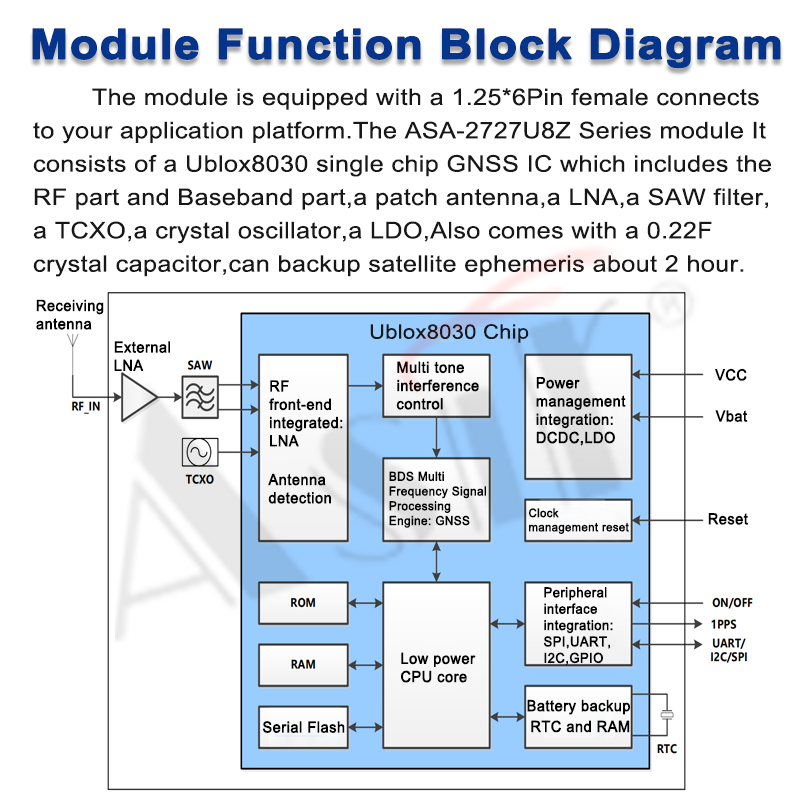

  • Main chip: Ublox UBX-8030
  • Size: 28.1 mm x 28.4 mm x 8.6 mm
  • Supply voltage: 3.0V ~ 5.5V

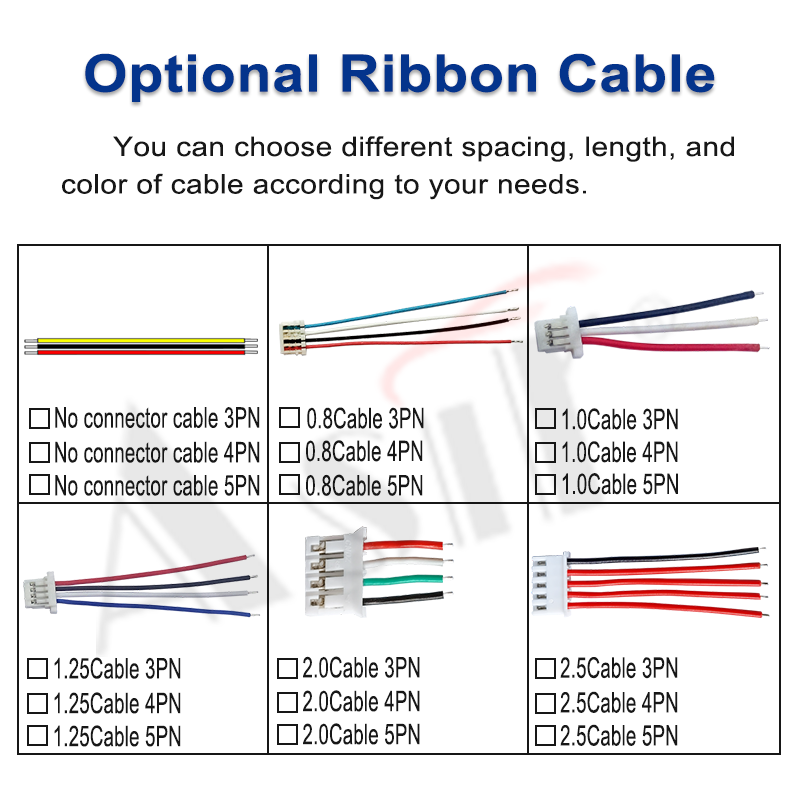

  • The PCB is optional with or without the connector socket

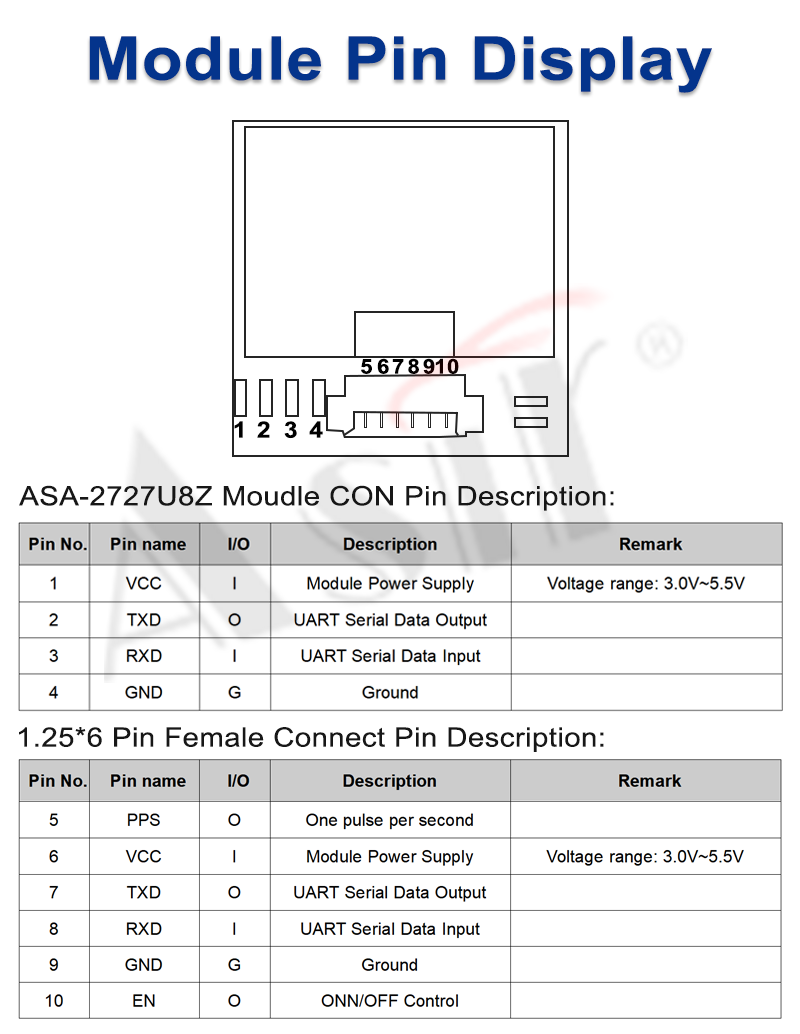

  • Supports USB/TTL/RS232 output

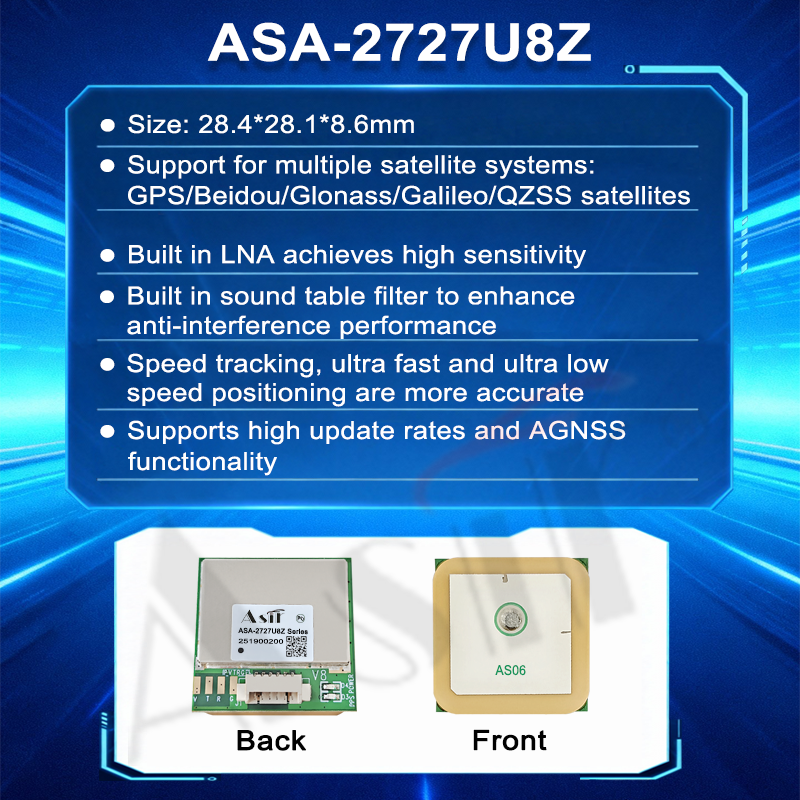

  • Support for multiple satellite systems: GPS, Beidou , Glonass, QZSS satellites

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

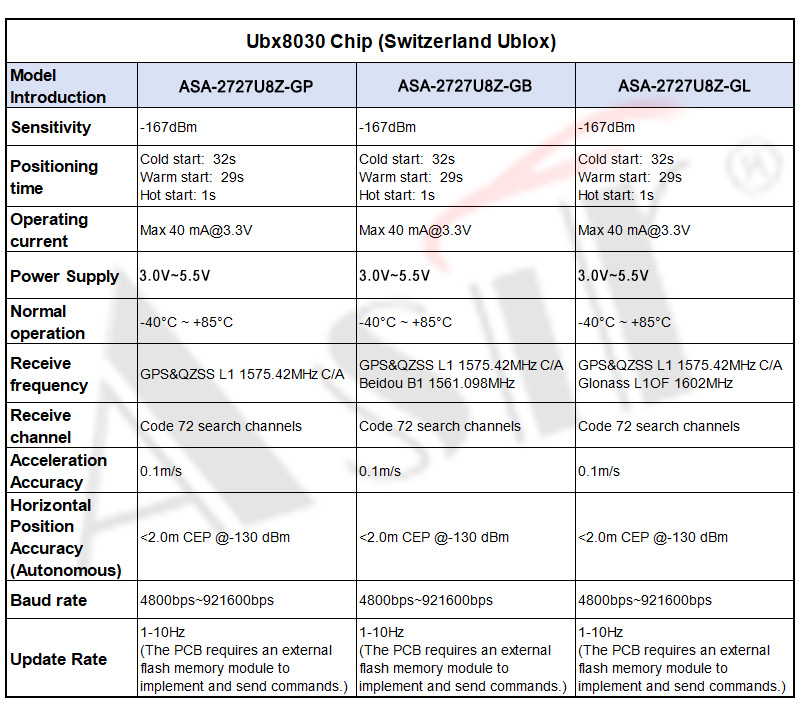

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipUblox UBX-8030
Size28.1 mm x 28.4 mm x 8.6 mm
Supply voltage3.0V ~ 5.5V
FeatureThe PCB is optional with or without the connector socket
FeatureSupports USB/TTL/RS232 output
Support for multiple satellite systemsGPS, Beidou , Glonass, QZSS satellites

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

ASA-2727U8Z Series technical detail 1
ASA-2727U8Z Series technical detail 2
ASA-2727U8Z Series technical detail 3
ASA-2727U8Z Series technical detail 4
ASA-2727U8Z Series technical detail 5
ASA-2727U8Z Series technical detail 6
ASA-2727U8Z Series technical detail 7

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request
