Products / GNSS Antenna Module

GNSS Antenna Module

ASA-2825M3Z Series

ASA-2825M3Z Series in the ASA-2825 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet

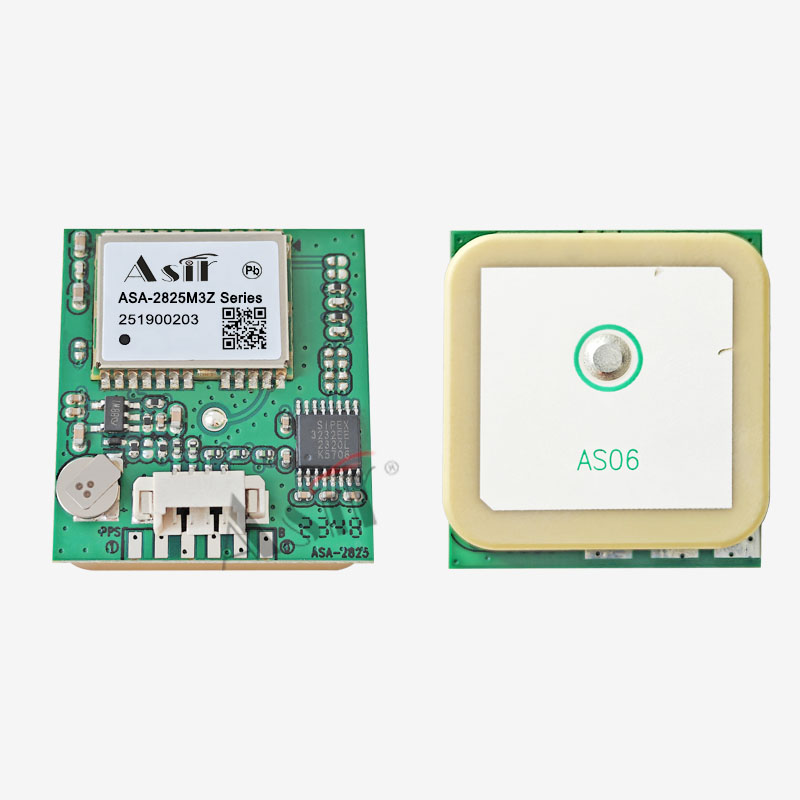

ASA-2825M3Z Series
ASA-2825M3Z Series view 1

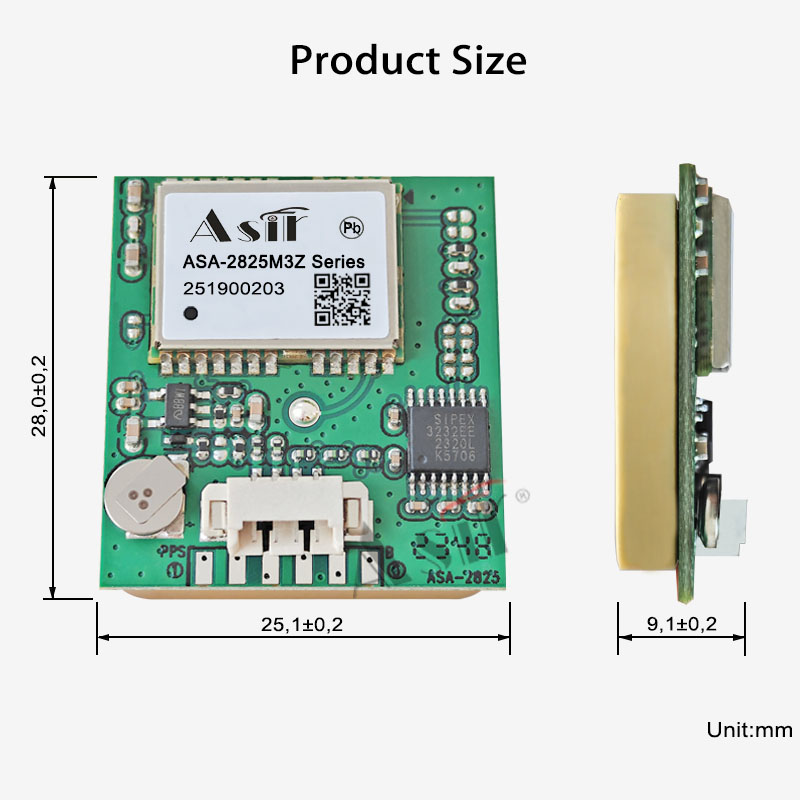

ASA-2825M3Z Series view 2

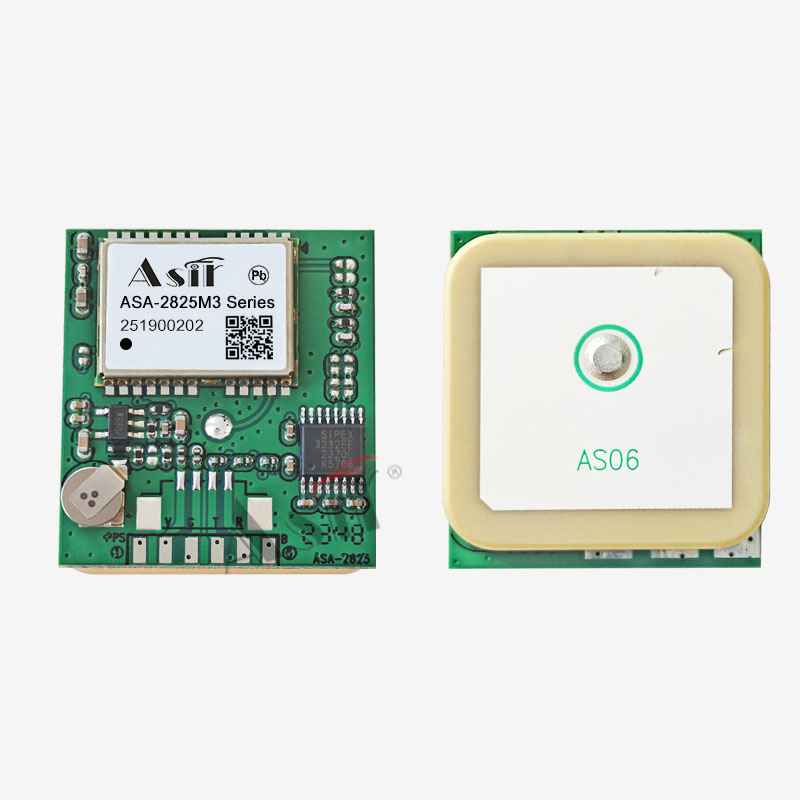

ASA-2825M3Z Series view 3

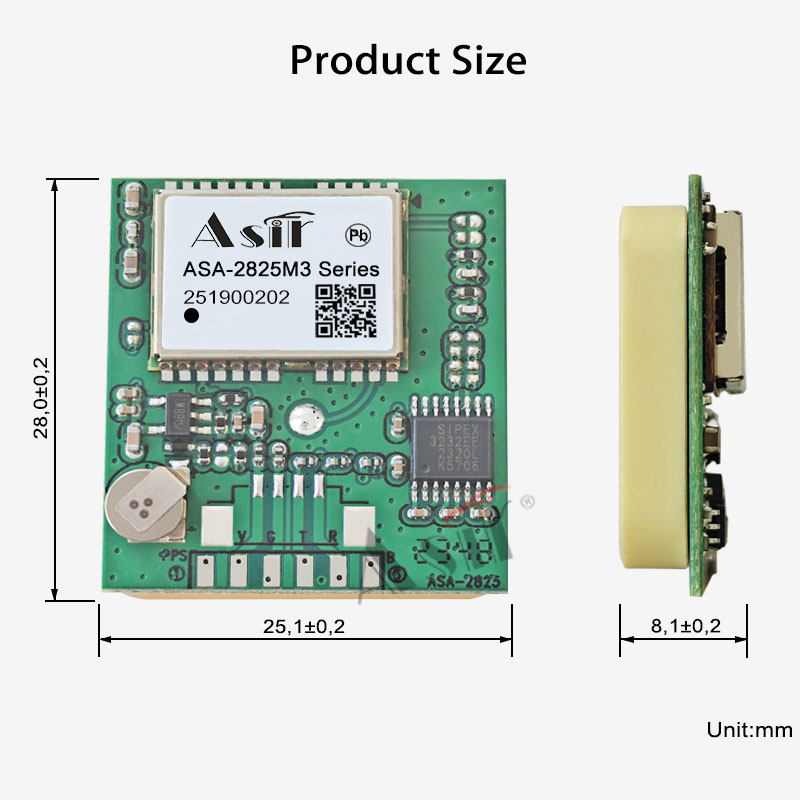

ASA-2825M3Z Series view 4
ASA-2825M3Z Series view 5

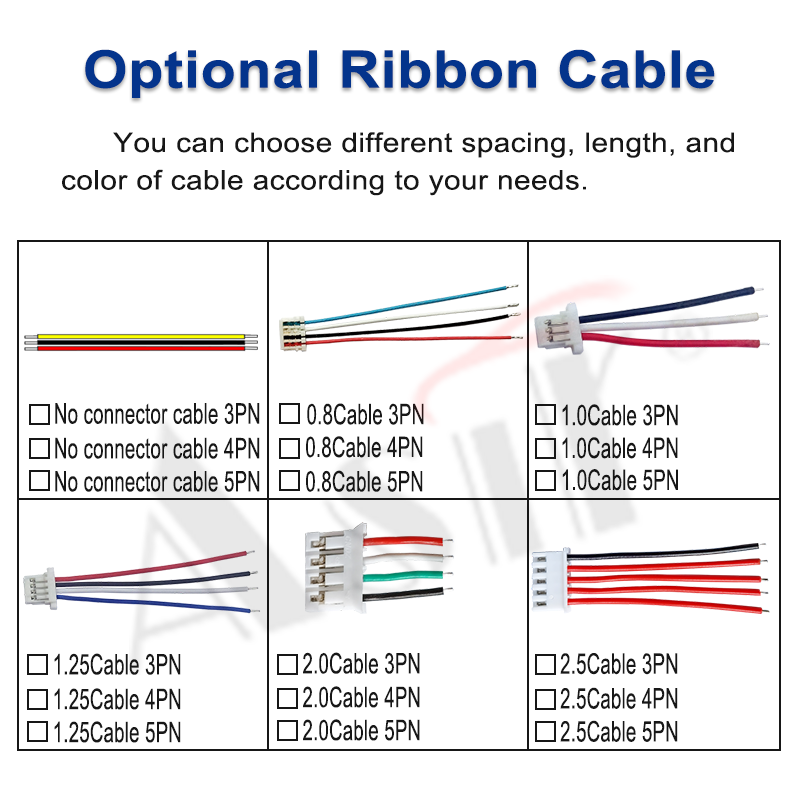

ASA-2825M3Z Series view 6

Quick Selection Notes

  • Main chip: MTK MT3333
  • Size: 28.0 mm x 25. 1mm x 9.1 mm
  • Supply voltage: 3.0V ~ 5.5V
  • Supports TTL/RS232/USB output
  • The PCB is optional with or without the connector socket
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK MT3333
Size28.0 mm x 25. 1mm x 9.1 mm
Supply voltage3.0V ~ 5.5V
FeatureSupports TTL/RS232/USB output
FeatureThe PCB is optional with or without the connector socket
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

ASA-2825M3Z Series technical detail 1
ASA-2825M3Z Series technical detail 2

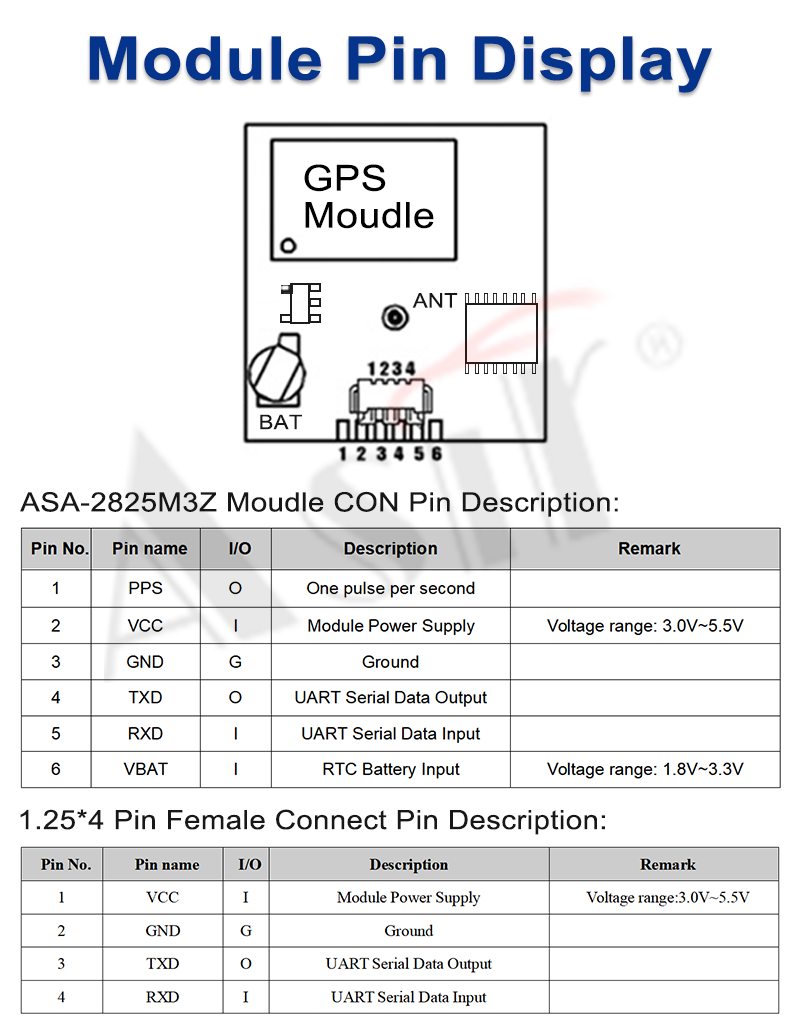

ASA-2825M3Z Series technical detail 3
ASA-2825M3Z Series technical detail 4

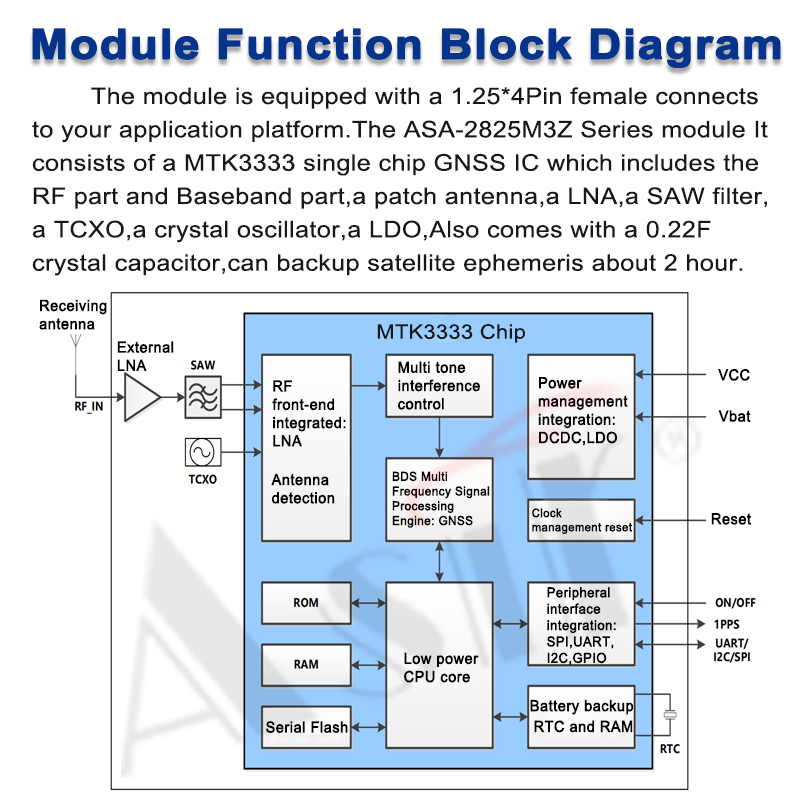

ASA-2825M3Z Series technical detail 5

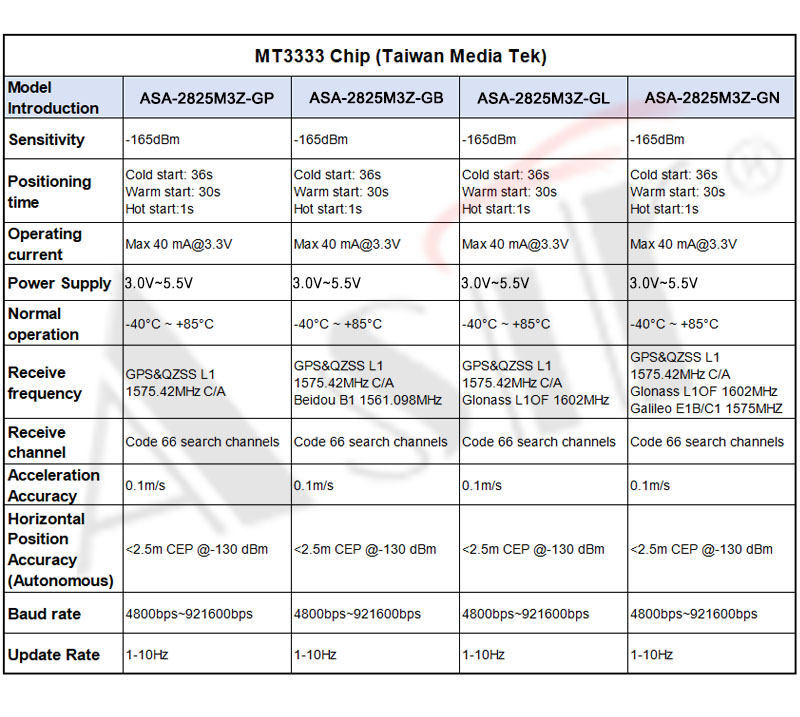

ASA-2825M3Z Series technical detail 6

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-2825M3Z Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
