GNSS Antenna Module

ASA-2828M5 Series

ASA-2828M5 Series in the ASA-2828 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
ASA-2828M5 Series

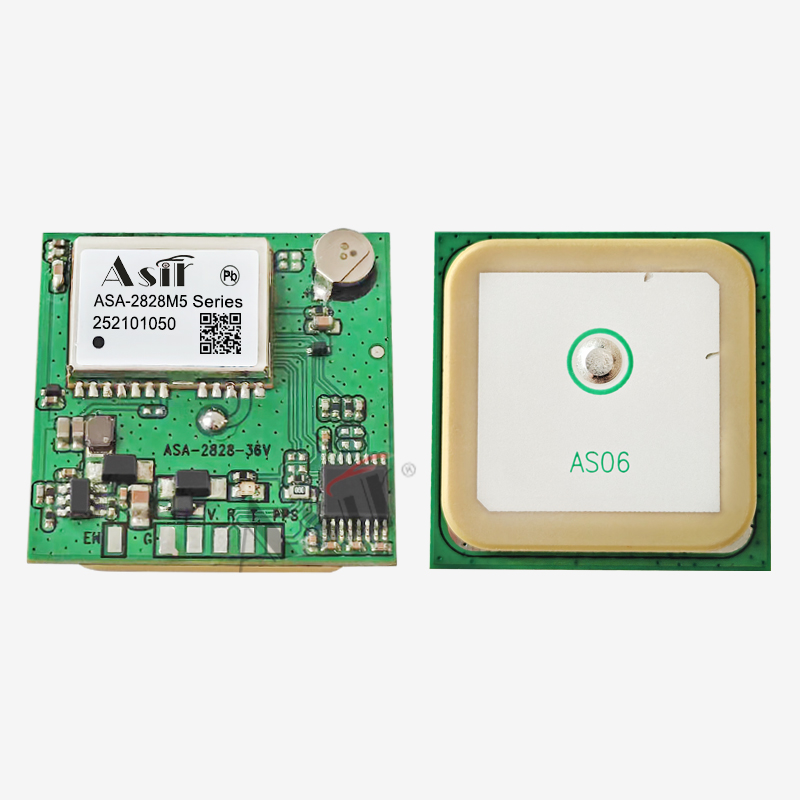

ASA-2828M5 Series view 1
ASA-2828M5 Series view 2
ASA-2828M5 Series view 3
ASA-2828M5 Series view 4

Quick Selection Notes

  • Main chip: MTK AG3335

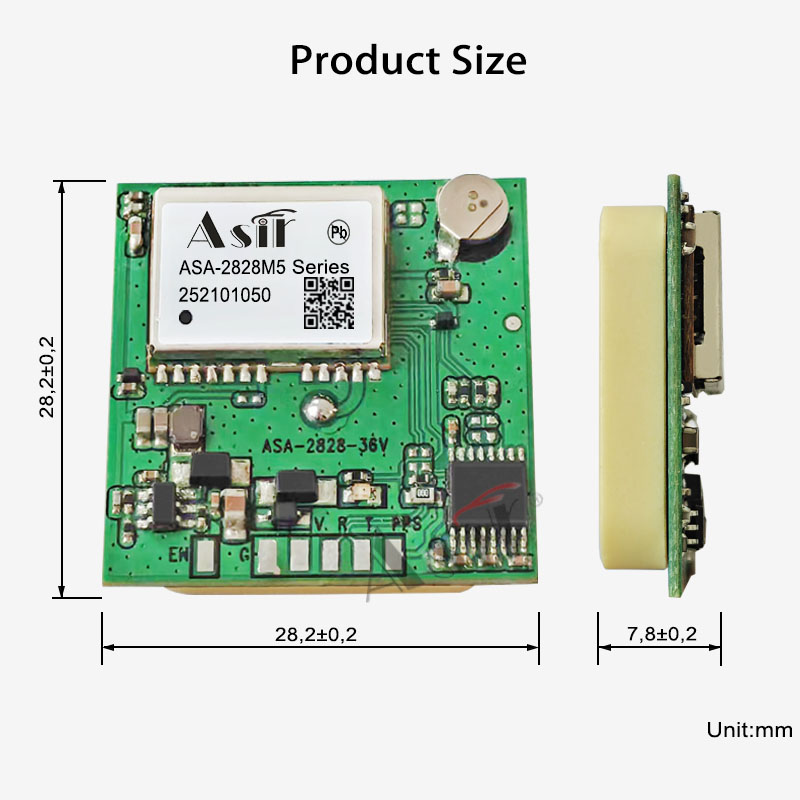

  • Size: 28.2 mm x 28.2 mm x 7.8 mm

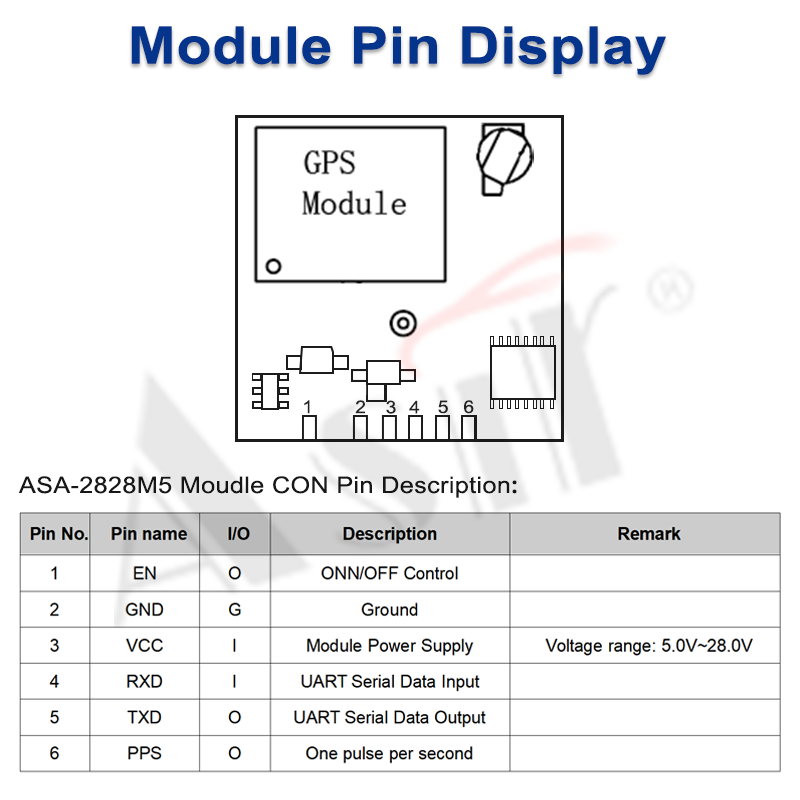

  • Supports TTL/RS232 output.
  • Supply voltage: 5.0V ~ 28.0V
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
  • 1 meter high precision, supporting L1 and L5 dual frequency concurrent reception

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

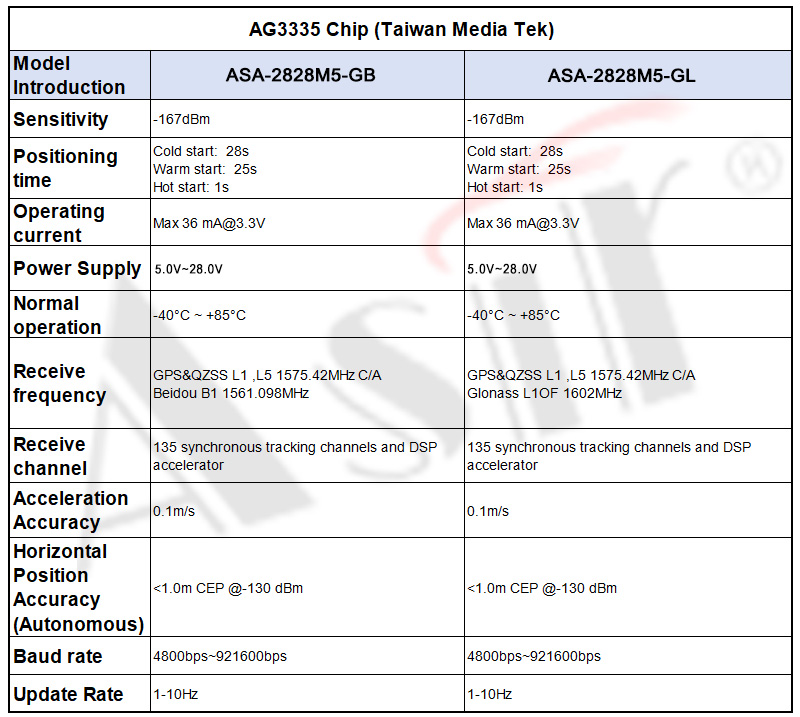

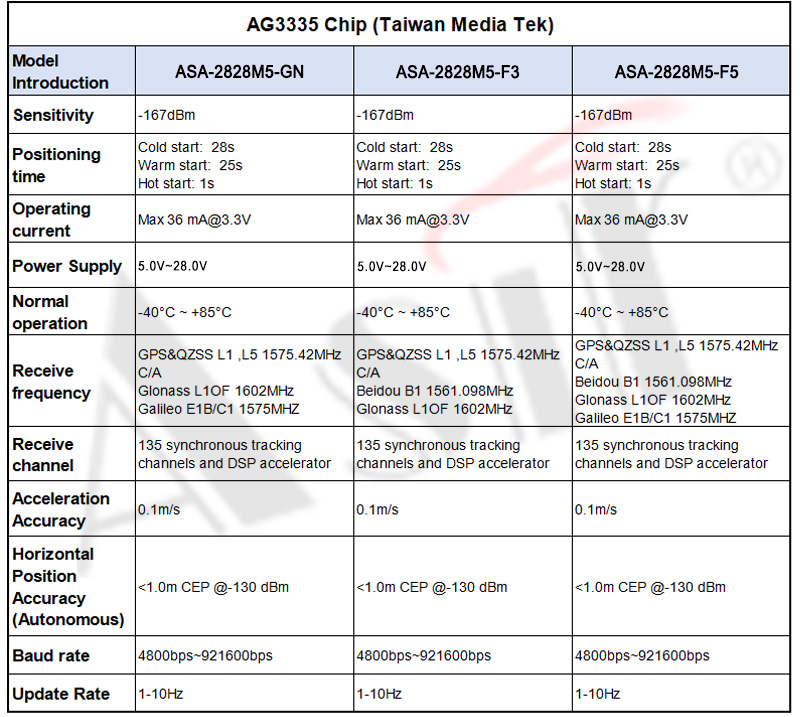

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK AG3335
Size28.2 mm x 28.2 mm x 7.8 mm
FeatureSupports TTL/RS232 output.
Supply voltage5.0V ~ 28.0V
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
Feature1 meter high precision, supporting L1 and L5 dual frequency concurrent reception

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

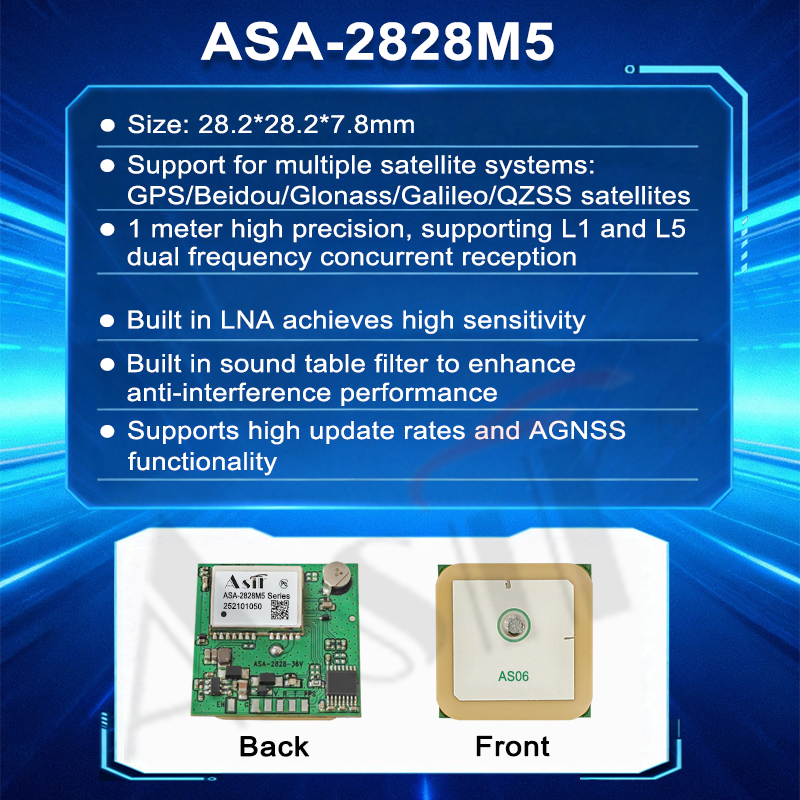

ASA-2828M5 Series technical detail 1
ASA-2828M5 Series technical detail 2
ASA-2828M5 Series technical detail 3
ASA-2828M5 Series technical detail 4

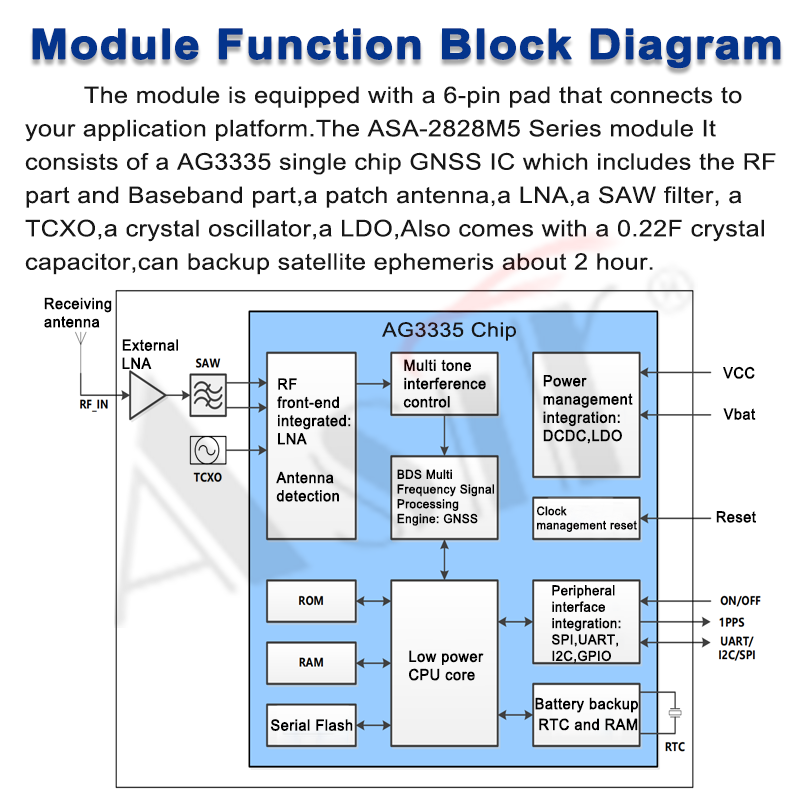

ASA-2828M5 Series technical detail 5
ASA-2828M5 Series technical detail 6
ASA-2828M5 Series technical detail 7

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-2828M5 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
