Products / GNSS Antenna Module

GNSS Antenna Module

ASA-2828U8 Series

ASA-2828U8 Series in the ASA-2828 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet

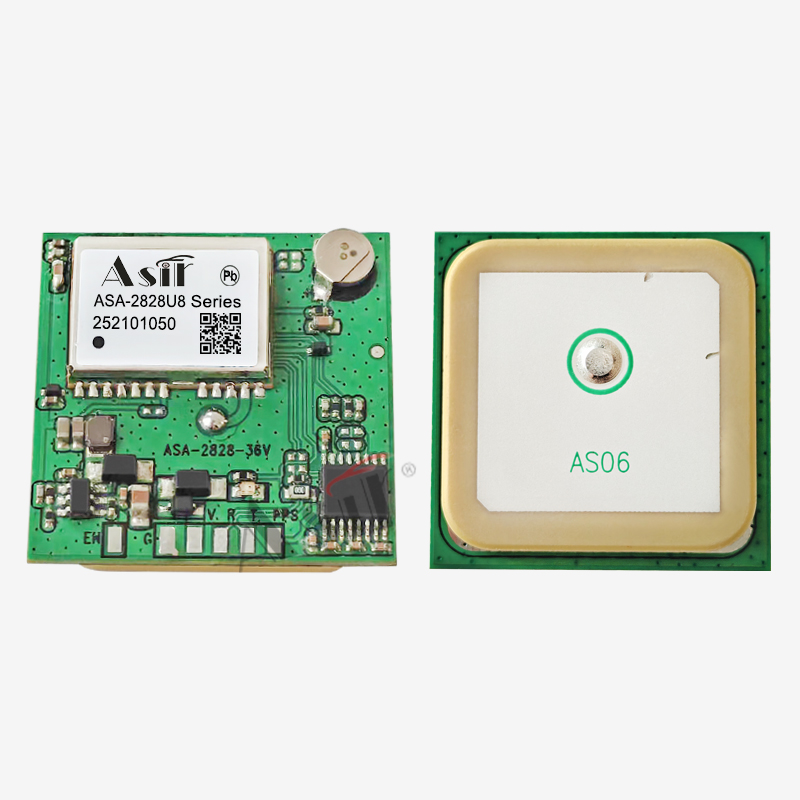

ASA-2828U8 Series
ASA-2828U8 Series view 1
ASA-2828U8 Series view 2
ASA-2828U8 Series view 3

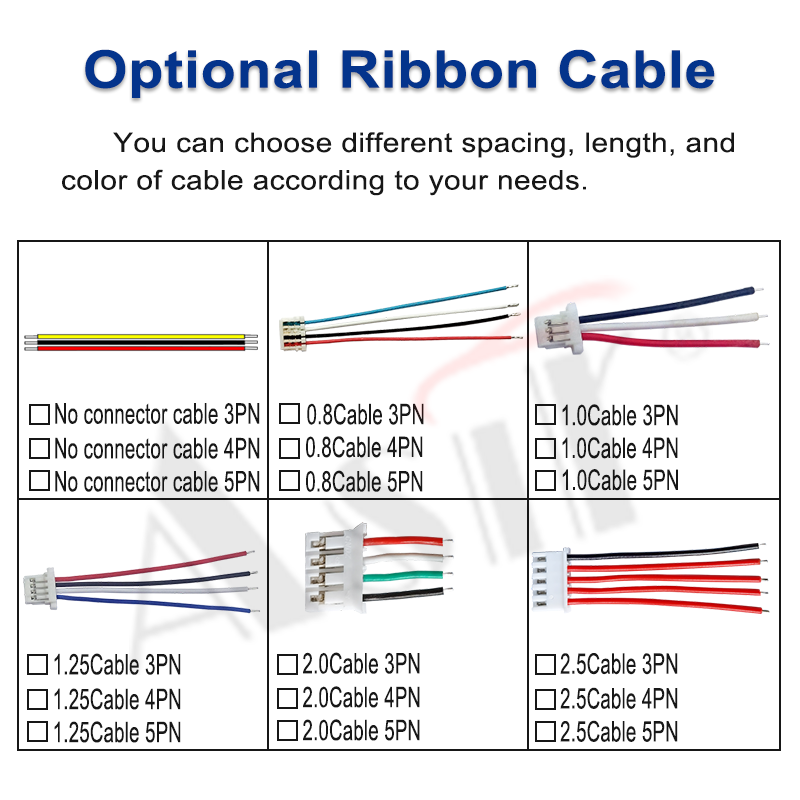

ASA-2828U8 Series view 4

Quick Selection Notes

  • Main chip: Ublox UBX-8030

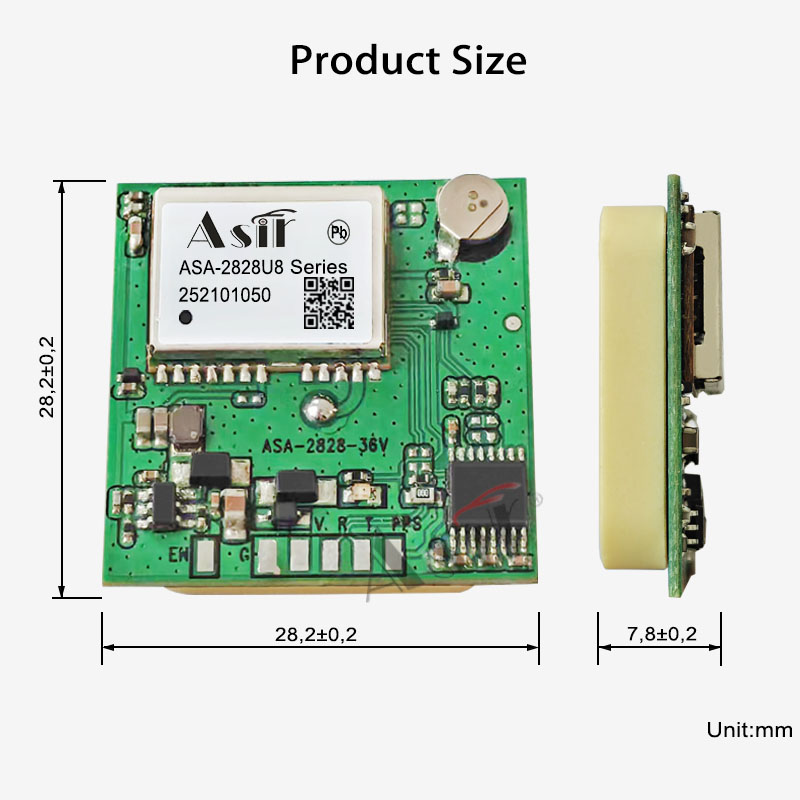

  • Size: 28.2 mm x 28.2 mm x 7.8 mm
  • Supply voltage: 5.0V ~ 28.0V
  • Supports TTL/RS232 output
  • Support for multiple satellite systems: GPS, Beidou , Glonass, QZSS satellites
  • Speed tracking, ultra fast and ultra low speed positioning are more accurate

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

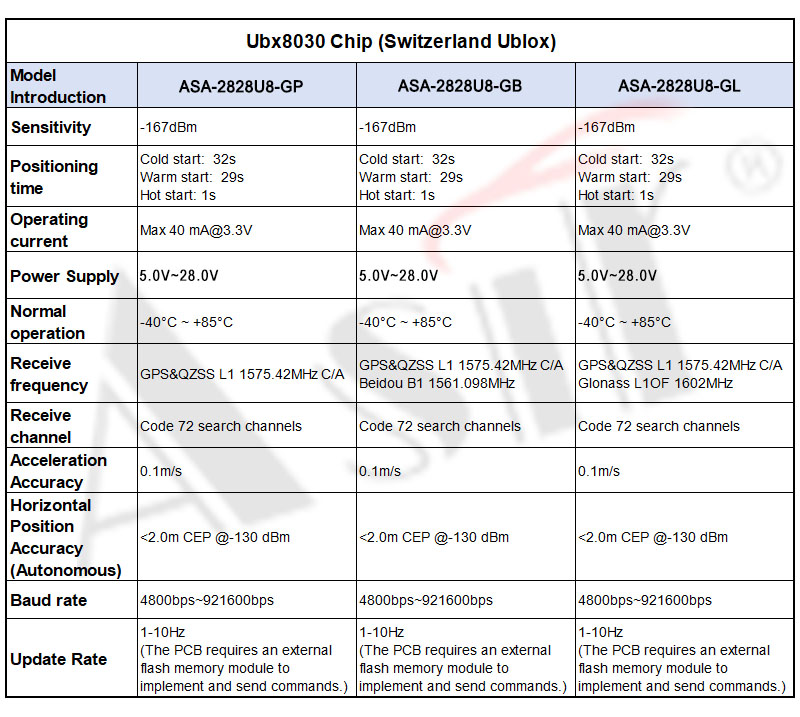

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipUblox UBX-8030
Size28.2 mm x 28.2 mm x 7.8 mm
Supply voltage5.0V ~ 28.0V
FeatureSupports TTL/RS232 output
Support for multiple satellite systemsGPS, Beidou , Glonass, QZSS satellites
FeatureSpeed tracking, ultra fast and ultra low speed positioning are more accurate

Product details

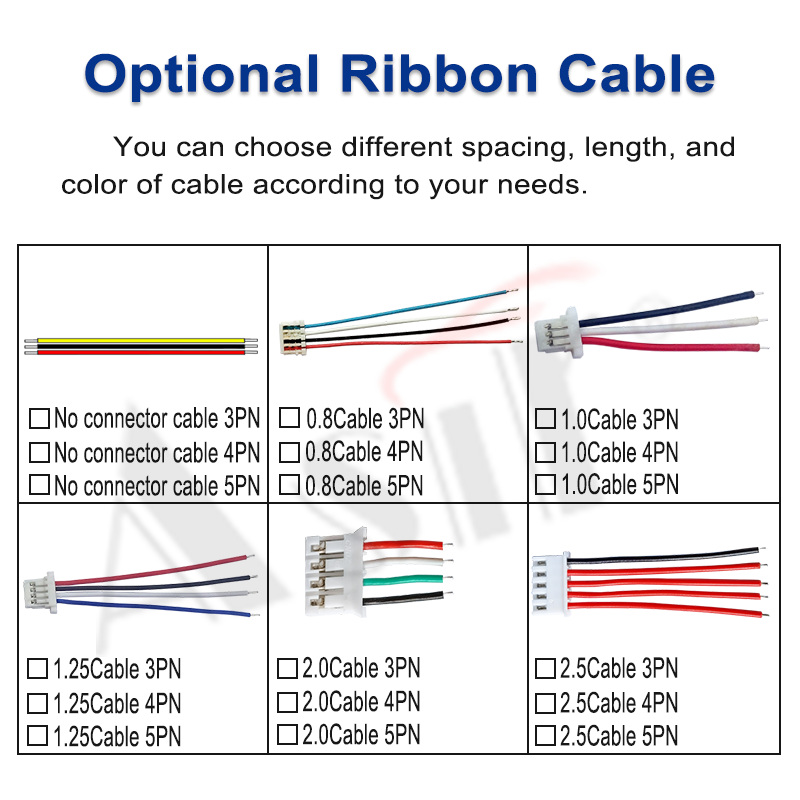

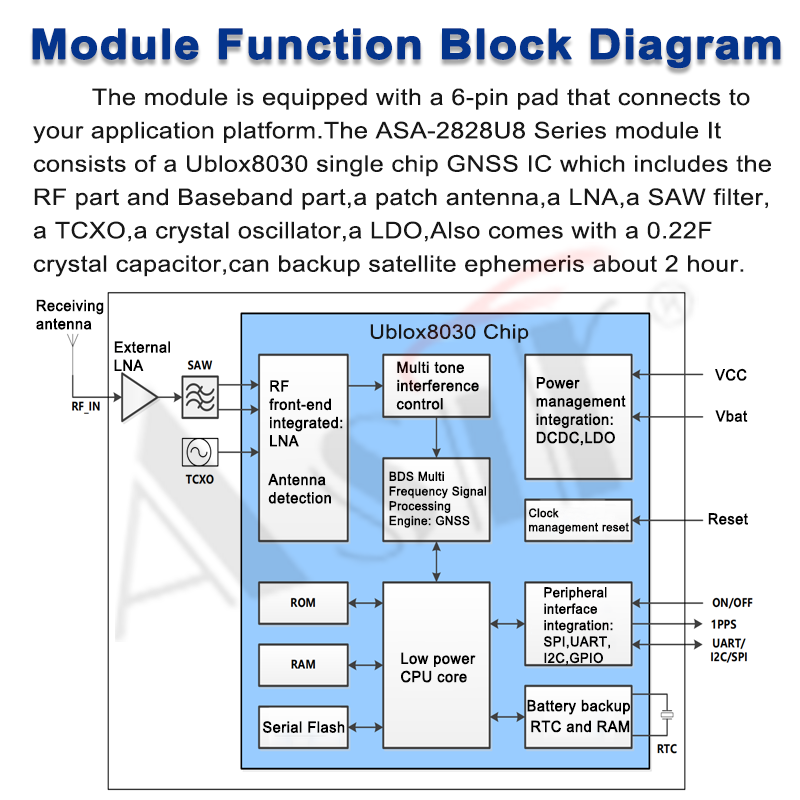

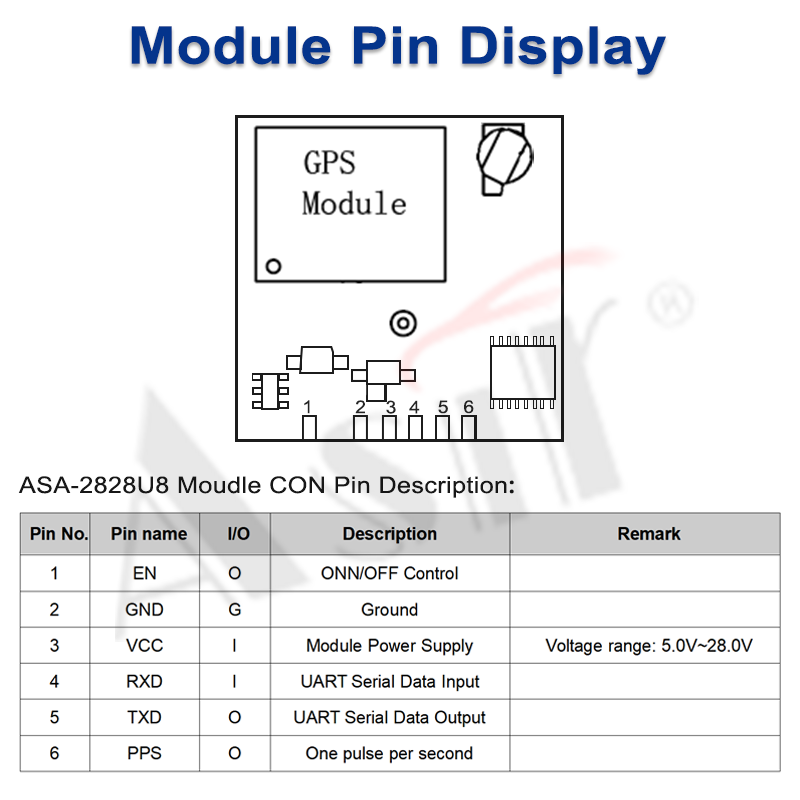

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

ASA-2828U8 Series technical detail 1
ASA-2828U8 Series technical detail 2
ASA-2828U8 Series technical detail 3
ASA-2828U8 Series technical detail 4
ASA-2828U8 Series technical detail 5
ASA-2828U8 Series technical detail 6

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-2828U8 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
