Products / GNSS Antenna Module

GNSS Antenna Module

ASA-2828U9 Series

ASA-2828U9 Series in the ASA-2828 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet

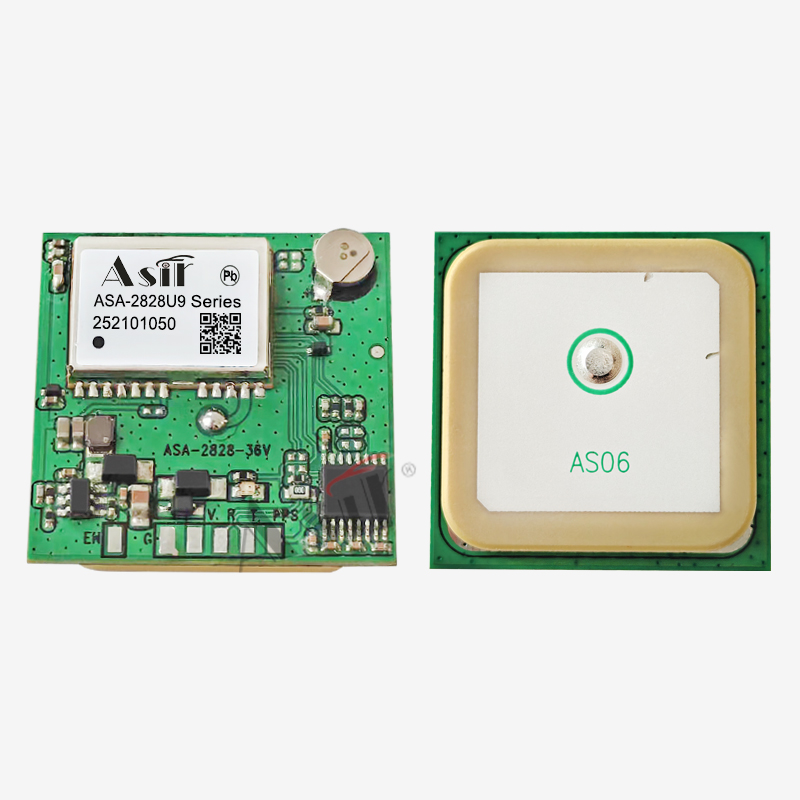

ASA-2828U9 Series
ASA-2828U9 Series view 1

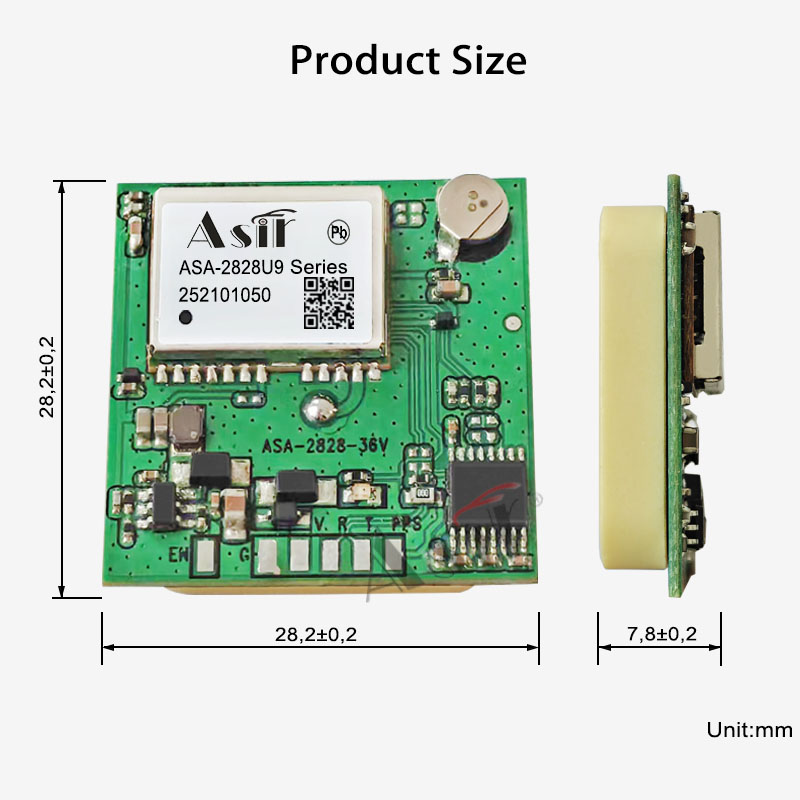

ASA-2828U9 Series view 2
ASA-2828U9 Series view 3
ASA-2828U9 Series view 4

Quick Selection Notes

  • Main chip: Ublox UBX-9140
  • Size: 28.2 mm x 28.2 mm x 7.8 mm
  • Supply voltage: 5.0V ~ 28.0V
  • Supports TTL/RS232 output
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
  • Built in sound table filter to enhance anti-interference performance

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipUblox UBX-9140
Size28.2 mm x 28.2 mm x 7.8 mm
Supply voltage5.0V ~ 28.0V
FeatureSupports TTL/RS232 output
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
FeatureBuilt in sound table filter to enhance anti-interference performance

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

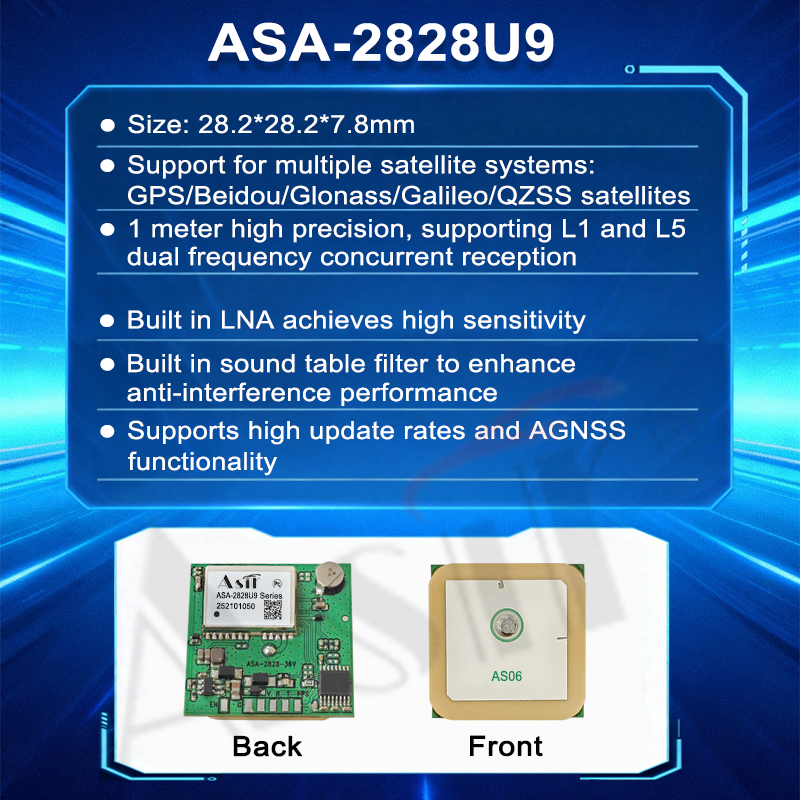

ASA-2828U9 Series technical detail 1
ASA-2828U9 Series technical detail 2

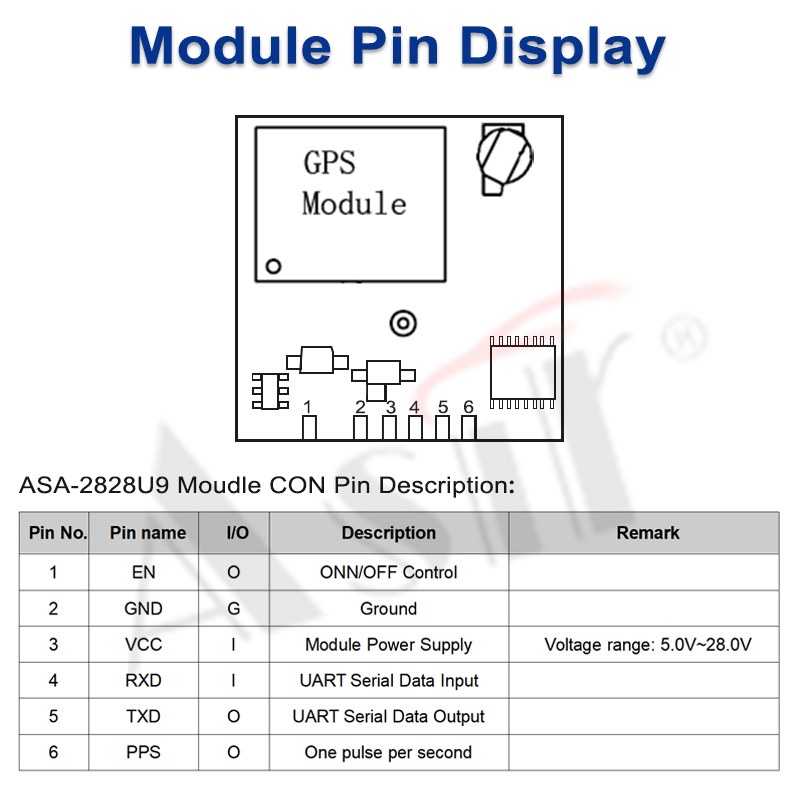

ASA-2828U9 Series technical detail 3

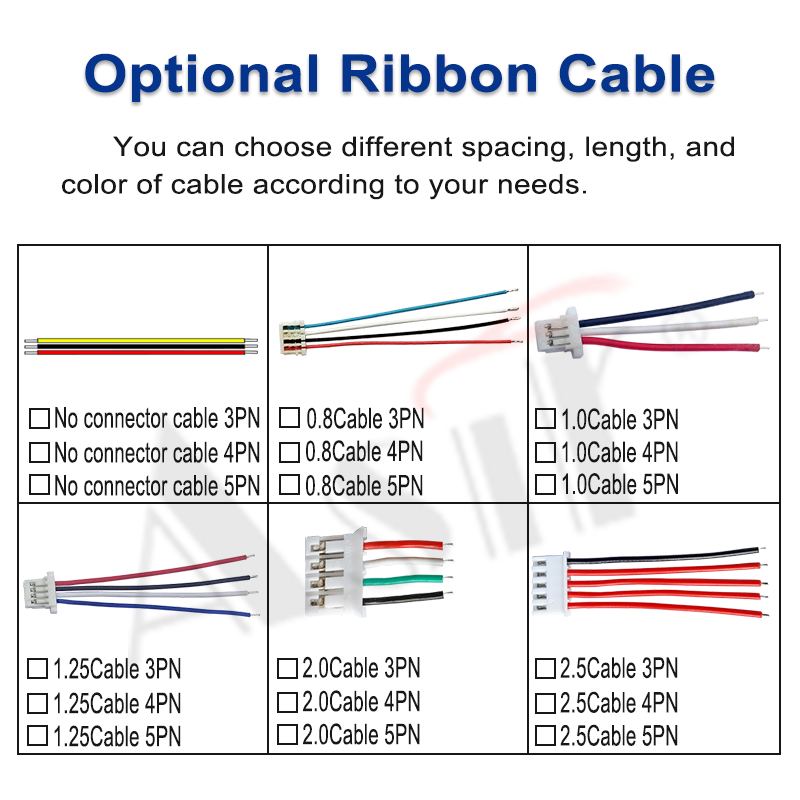

ASA-2828U9 Series technical detail 4

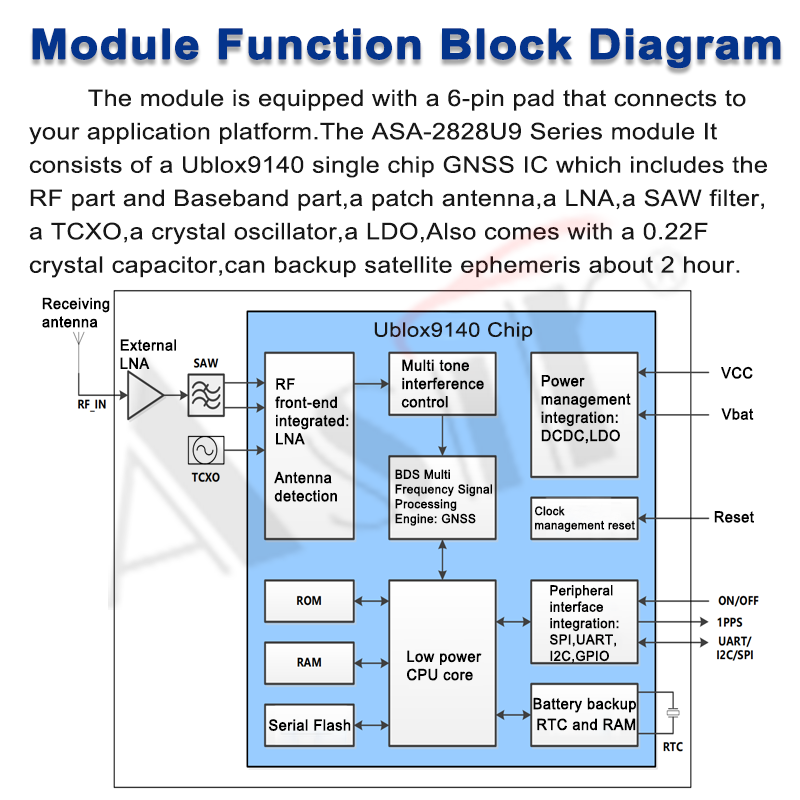

ASA-2828U9 Series technical detail 5

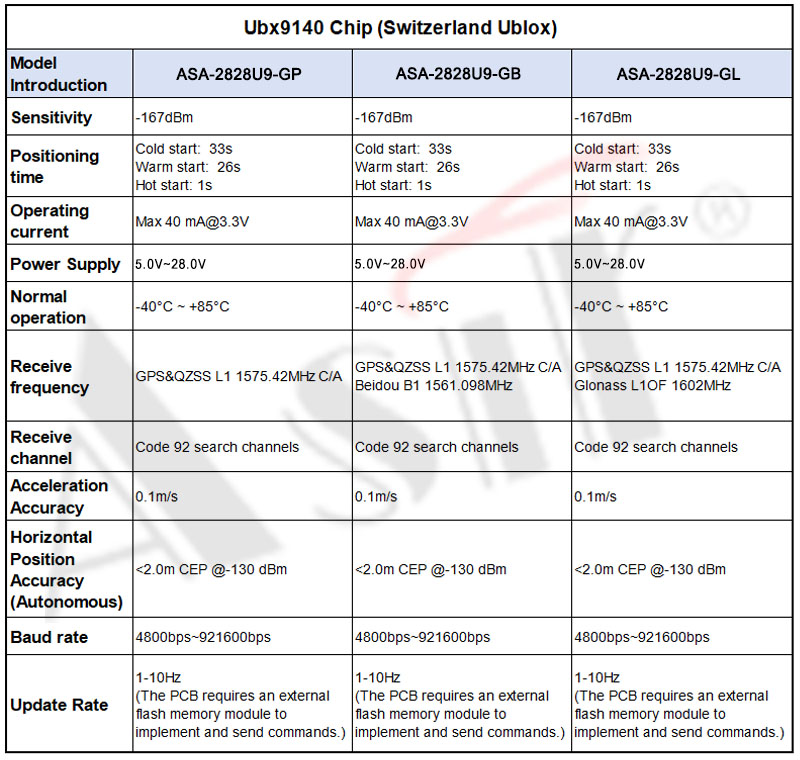

ASA-2828U9 Series technical detail 6

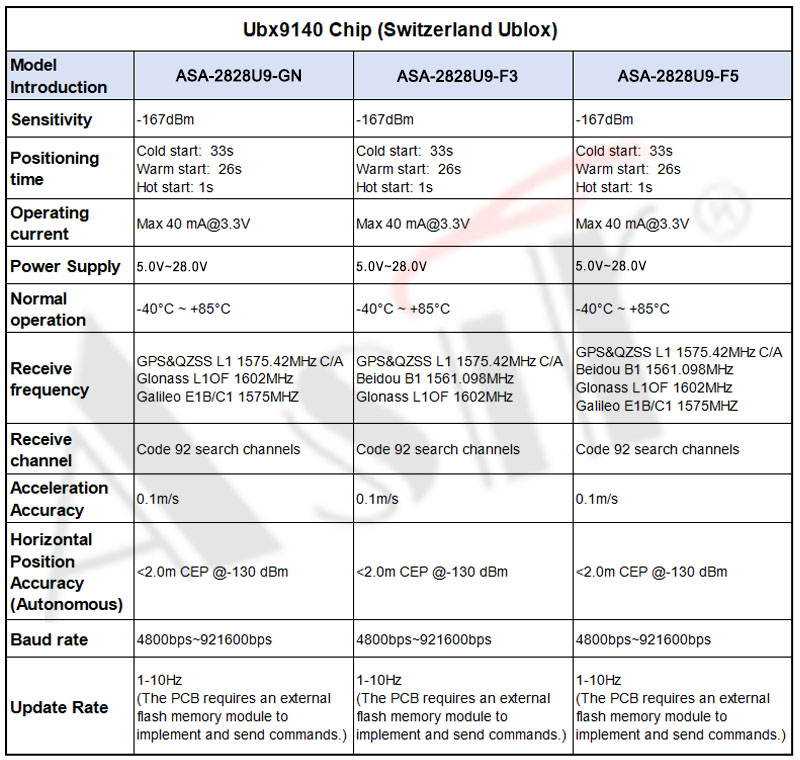

ASA-2828U9 Series technical detail 7

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-2828U9 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
