Products / GNSS Antenna Module

GNSS Antenna Module

ASA-4242MTZ Series

ASA-4242MTZ Series in the ASA-4242 Series line, listed under GNSS Antenna Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet

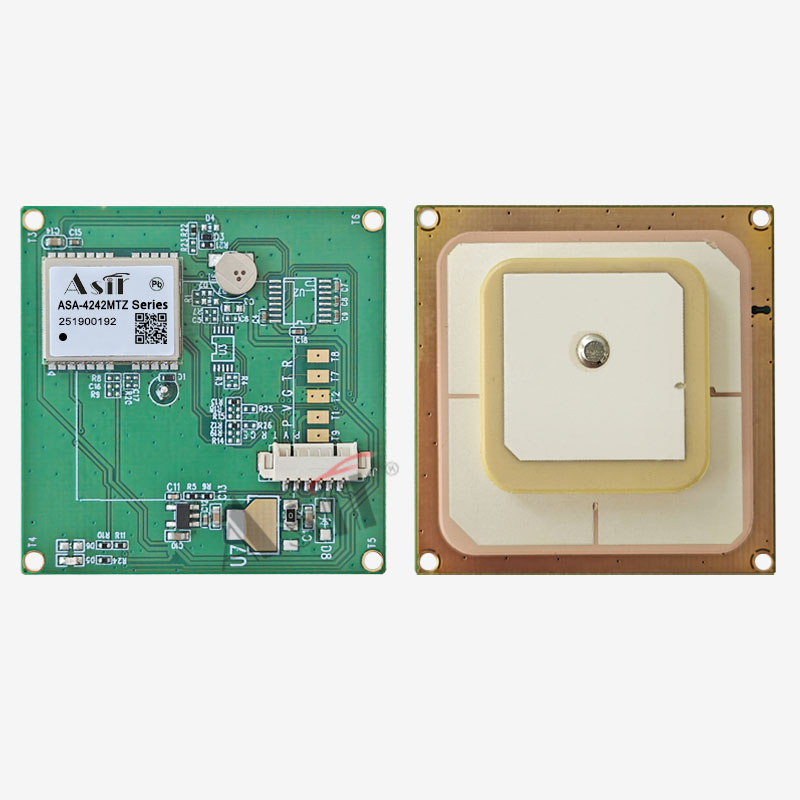

ASA-4242MTZ Series
ASA-4242MTZ Series view 1

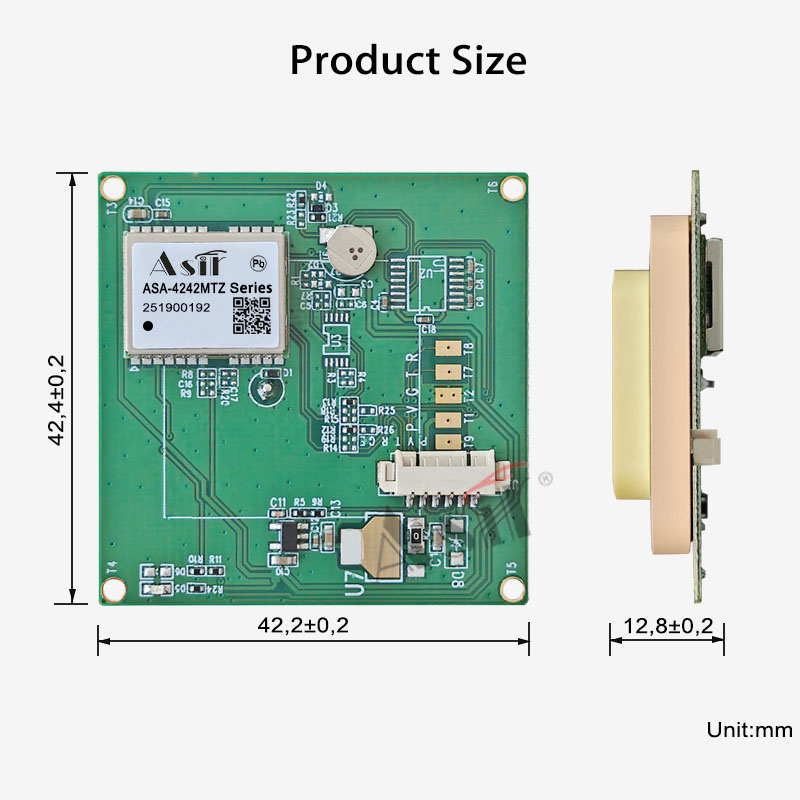

ASA-4242MTZ Series view 2

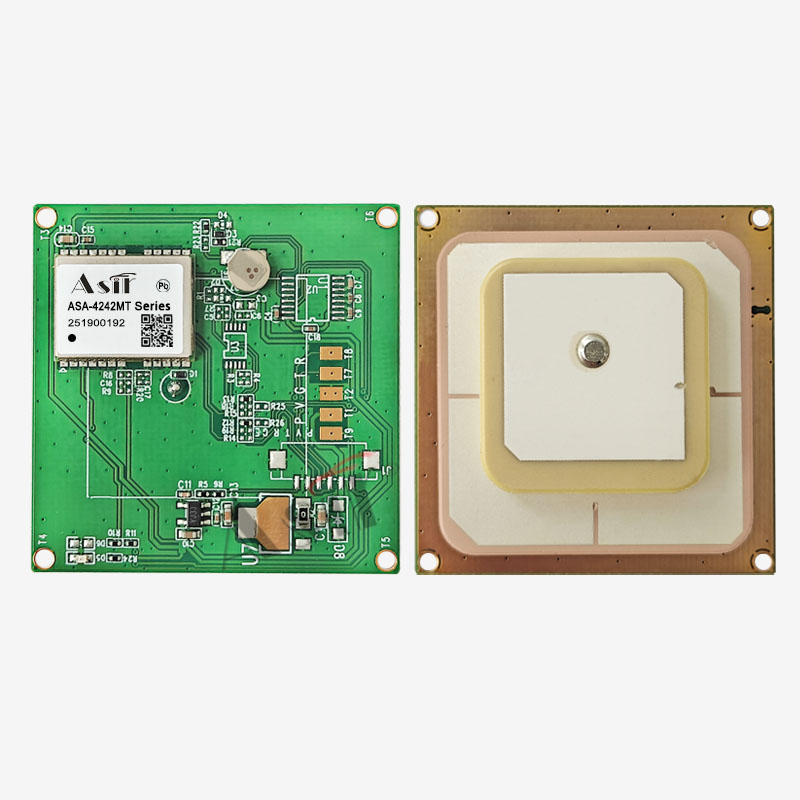

ASA-4242MTZ Series view 3
ASA-4242MTZ Series view 4
ASA-4242MTZ Series view 5
ASA-4242MTZ Series view 6

Quick Selection Notes

  • Main chip: MTK MT3337
  • Size: 42.4 mm x 42.2 mm x 12.8 mm
  • Supports TTL/RS232 output
  • Supply voltage: 3.0V ~ 5.5V
  • The PCB is optional with or without the connector socket
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites

Typical Applications

  • Vehicle terminals
  • Portable GNSS equipment
  • Asset trackers
  • Navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK MT3337
Size42.4 mm x 42.2 mm x 12.8 mm
FeatureSupports TTL/RS232 output
Supply voltage3.0V ~ 5.5V
FeatureThe PCB is optional with or without the connector socket
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

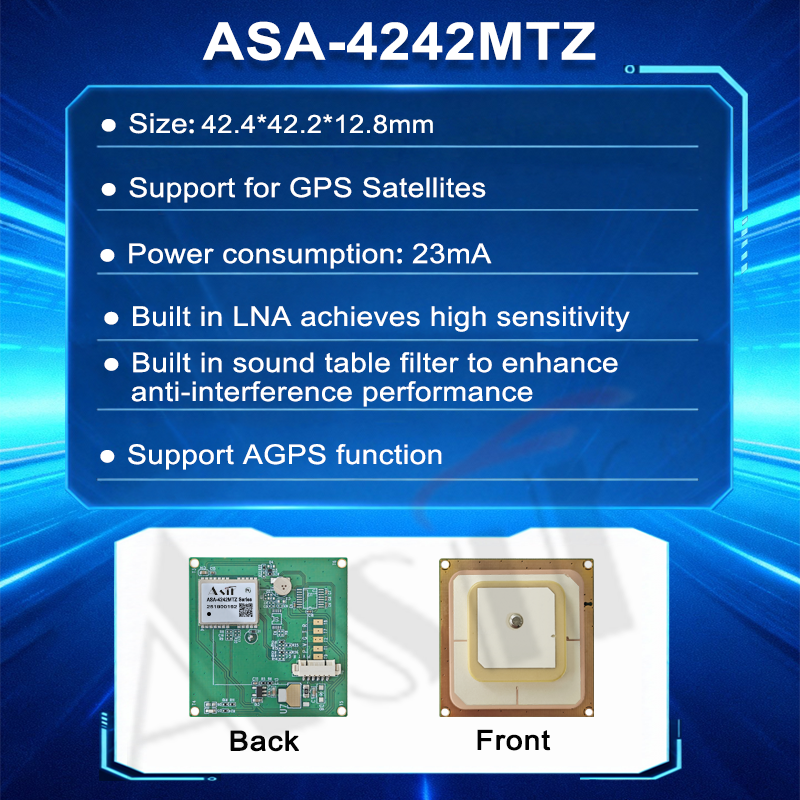

ASA-4242MTZ Series technical detail 1
ASA-4242MTZ Series technical detail 2
ASA-4242MTZ Series technical detail 3

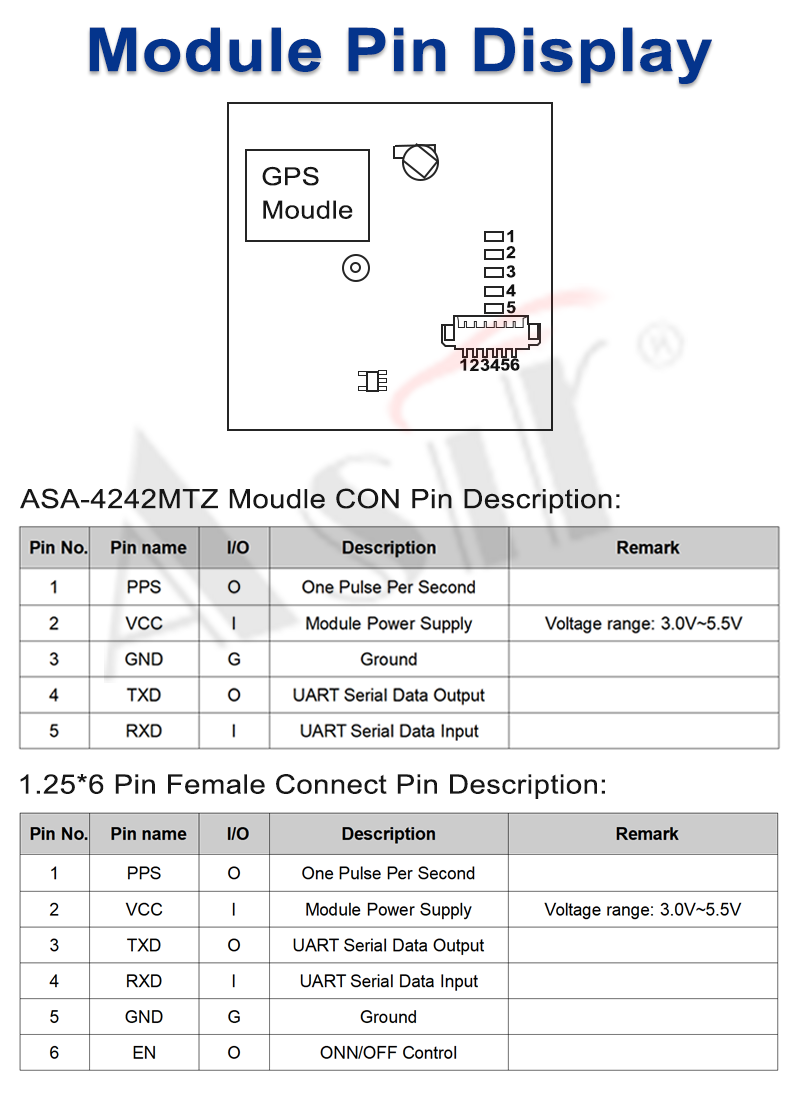

ASA-4242MTZ Series technical detail 4

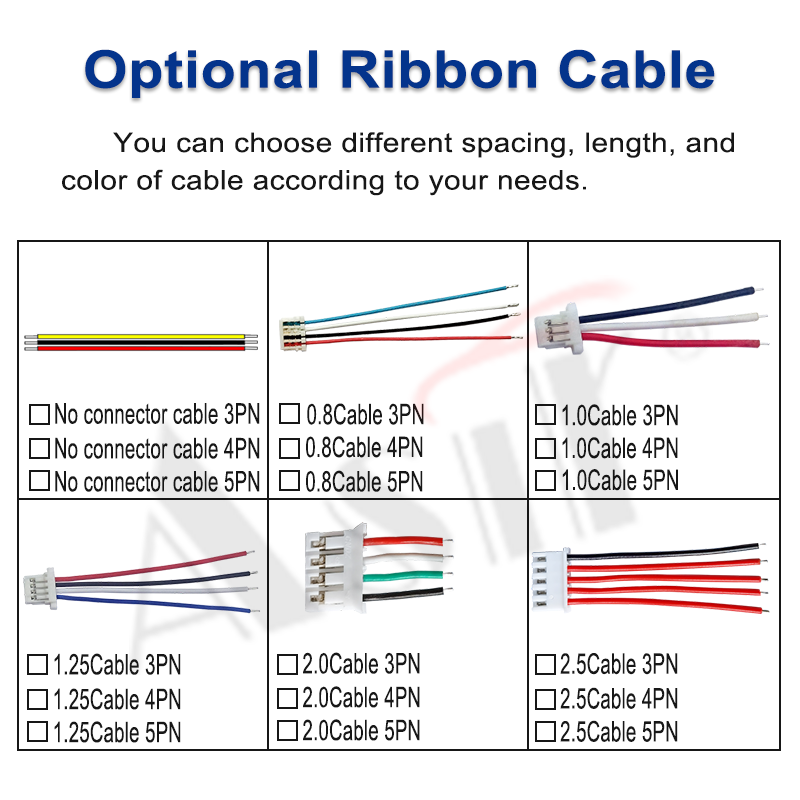

ASA-4242MTZ Series technical detail 5

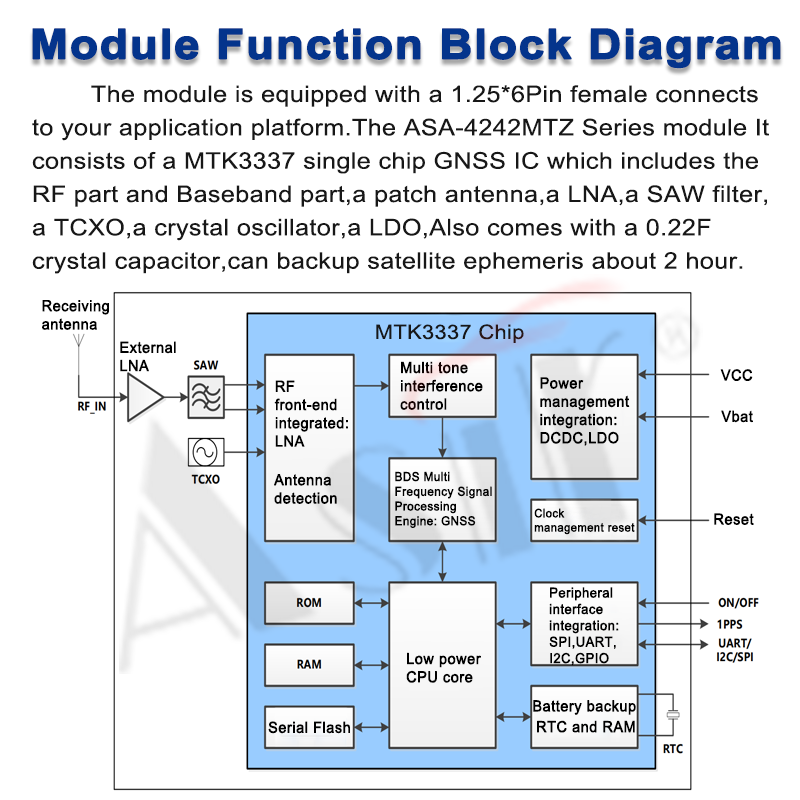

ASA-4242MTZ Series technical detail 6

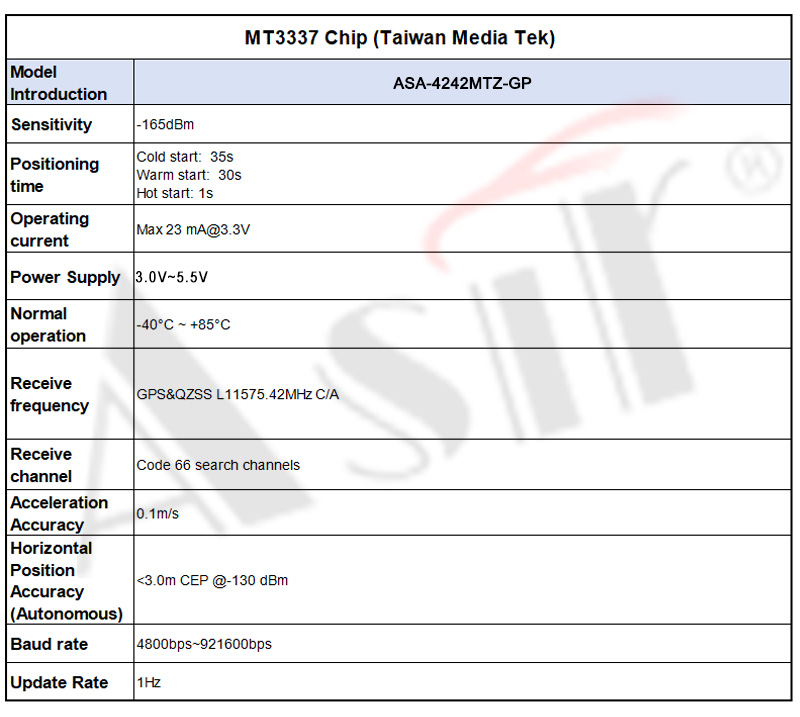

ASA-4242MTZ Series technical detail 7

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for ASA-4242MTZ Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
