GNSS Gmouse Module

AGM-33M5 Series

AGM-33M5 Series in the AGM-33 Series line, listed under GNSS Gmouse Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
AGM-33M5 Series

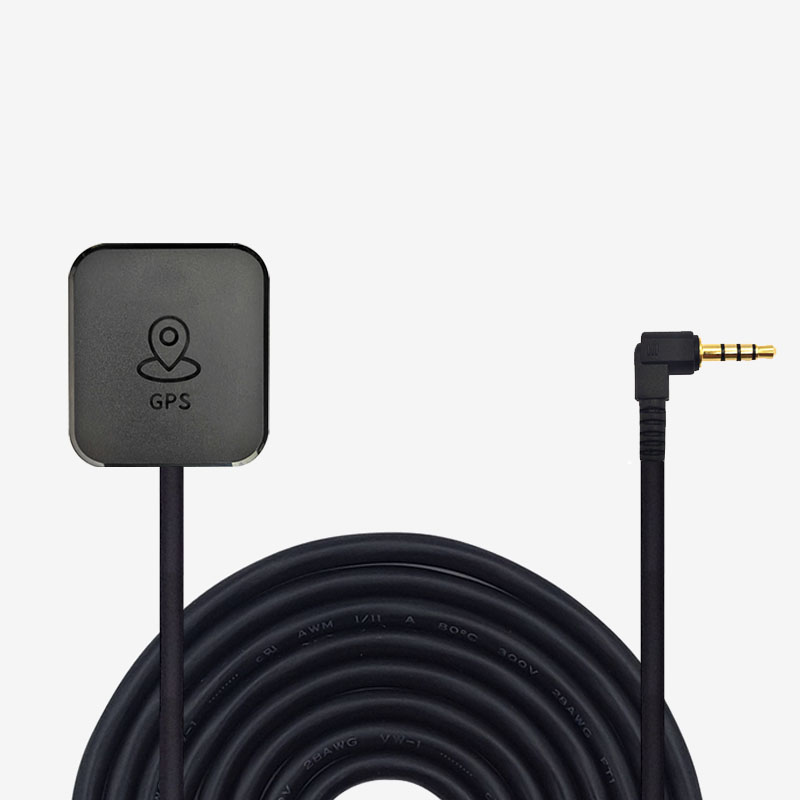

AGM-33M5 Series view 1
AGM-33M5 Series view 2
AGM-33M5 Series view 3
AGM-33M5 Series view 4

Quick Selection Notes

  • Main chip: MTK AG3335

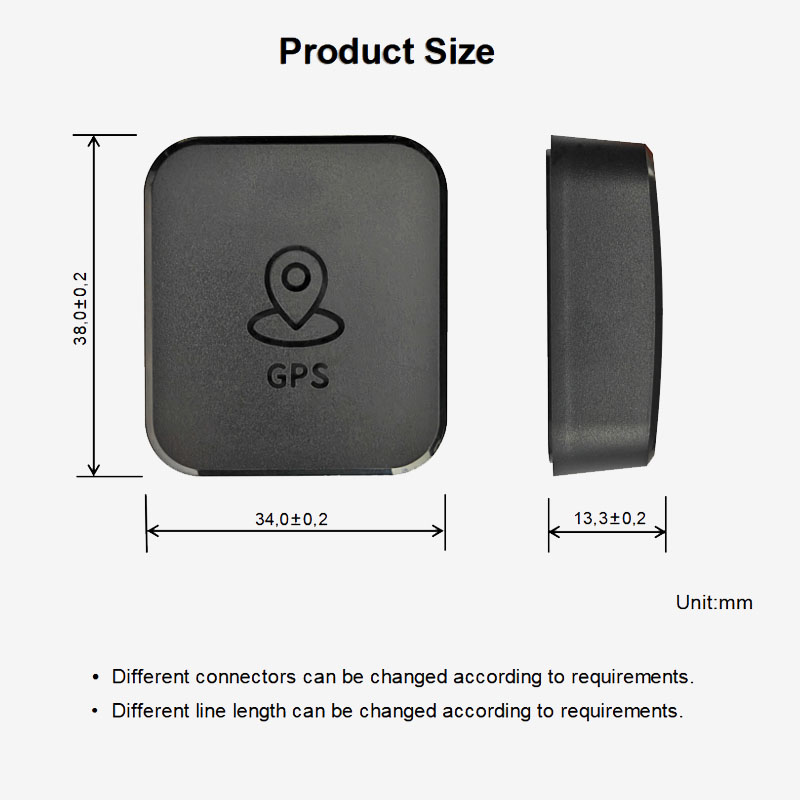

  • Size: 38.0 mm x 34.0 mm x 13.3 mm
  • Supply voltage: 3.0V ~ 5.5V
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
  • Different connectors can be changed according to requirements
  • Different line length can be changed according to requirements

Typical Applications

  • Car tracker
  • Dash cam / DVR
  • Fleet management
  • Marine and industrial devices

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK AG3335
Size38.0 mm x 34.0 mm x 13.3 mm
Supply voltage3.0V ~ 5.5V
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
FeatureDifferent connectors can be changed according to requirements
FeatureDifferent line length can be changed according to requirements

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

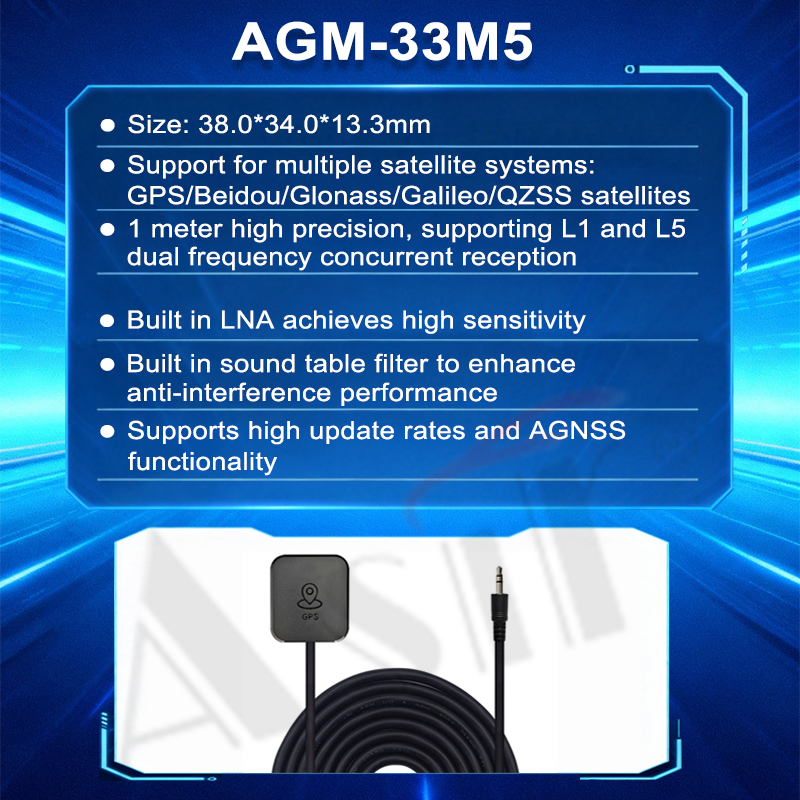

AGM-33M5 Series technical detail 1
AGM-33M5 Series technical detail 2

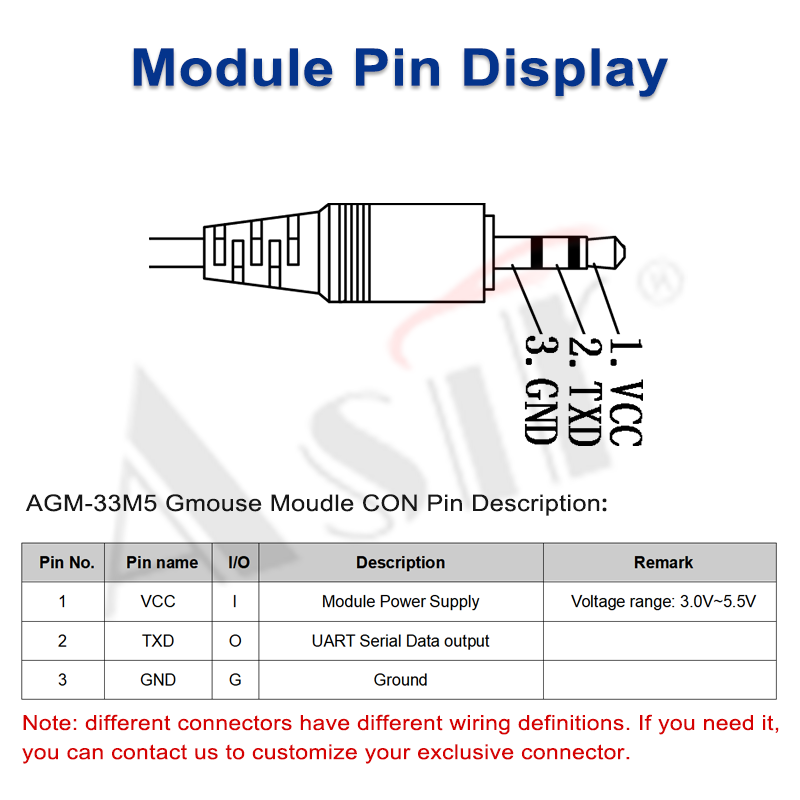

AGM-33M5 Series technical detail 3

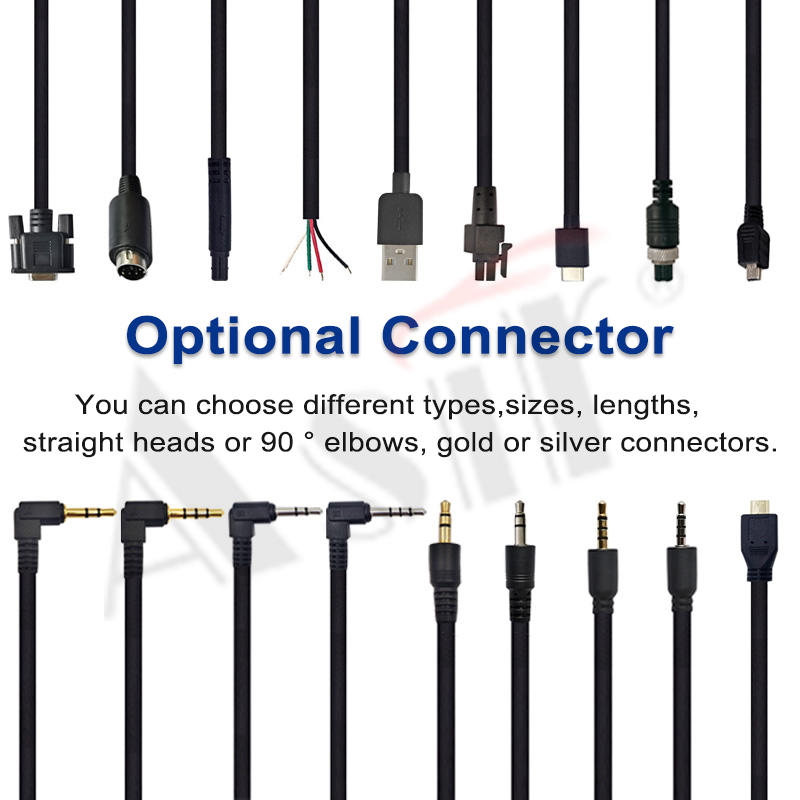

AGM-33M5 Series technical detail 4

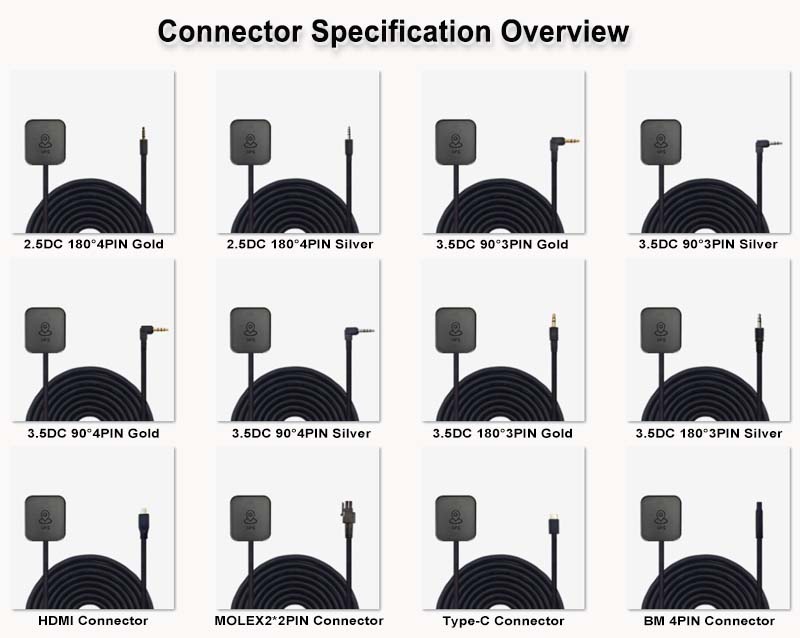

AGM-33M5 Series technical detail 5

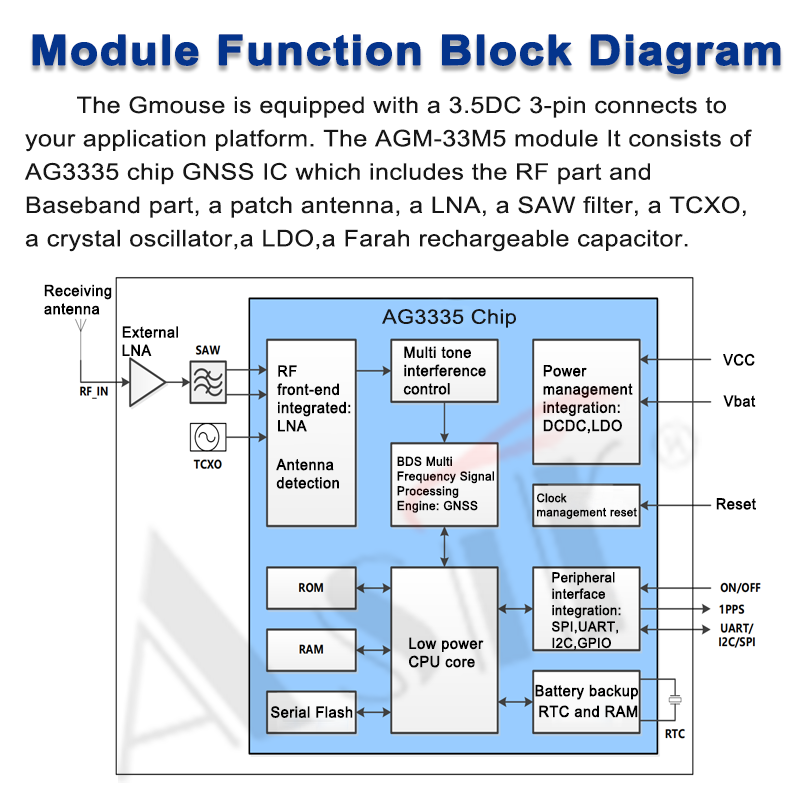

AGM-33M5 Series technical detail 6

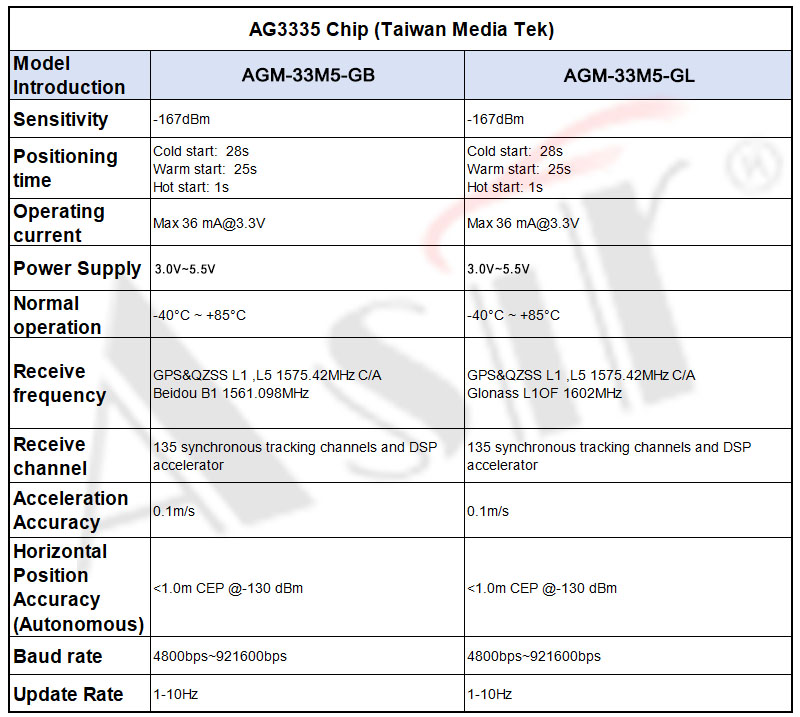

AGM-33M5 Series technical detail 7

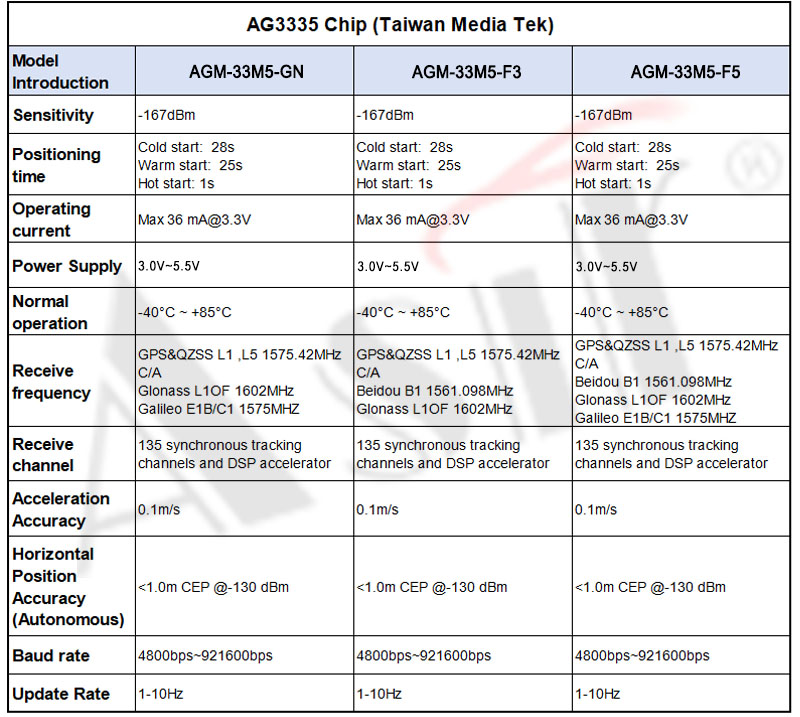

AGM-33M5 Series technical detail 8

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for AGM-33M5 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
