Products / GNSS Gmouse Module

GNSS Gmouse Module

AGM-38Z Series

AGM-38Z Series in the AGM-38 Series line, listed under GNSS Gmouse Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
AGM-38Z Series

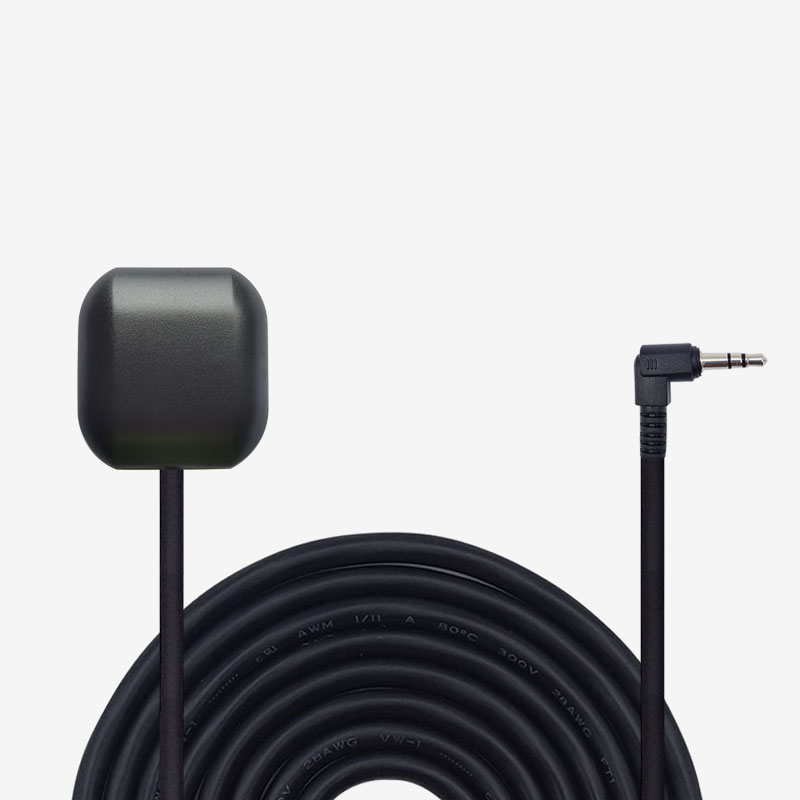

AGM-38Z Series view 1
AGM-38Z Series view 2
AGM-38Z Series view 3
AGM-38Z Series view 4

Quick Selection Notes

  • Main chip: AT6558

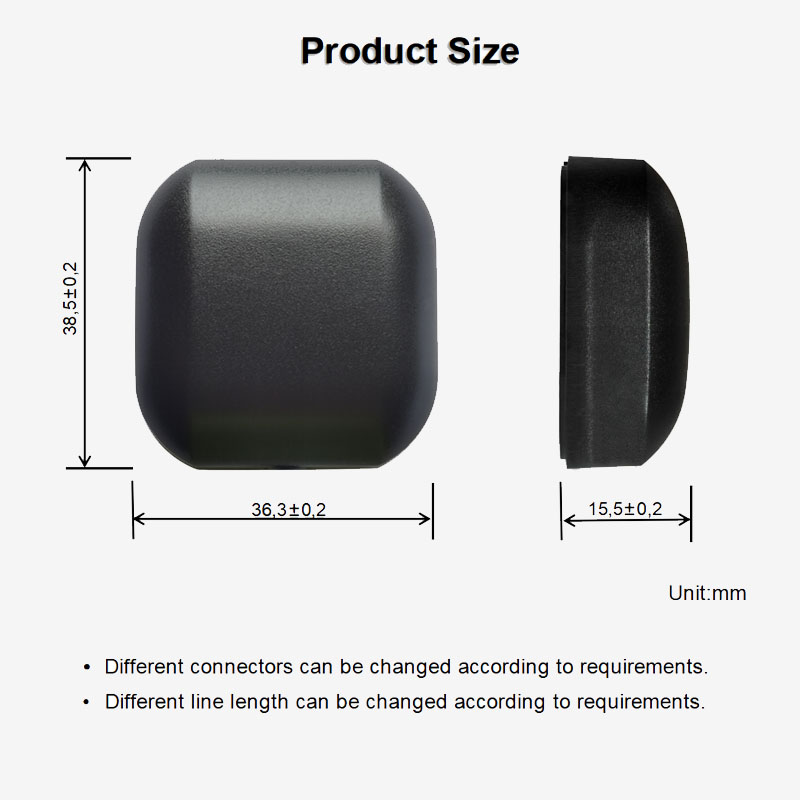

  • Size: 38.5 mm x 36.3 mm x 15.5 mm
  • Supply voltage: 3.0V ~ 5.5V
  • Laser-engraved patterns can be designed on the front of the shell
  • Different connectors can be changed according to requirements
  • Different line length can be changed according to requirements

Typical Applications

  • Car tracker
  • Dash cam / DVR
  • Fleet management
  • Marine and industrial devices

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipAT6558
Size38.5 mm x 36.3 mm x 15.5 mm
Supply voltage3.0V ~ 5.5V
FeatureLaser-engraved patterns can be designed on the front of the shell
FeatureDifferent connectors can be changed according to requirements
FeatureDifferent line length can be changed according to requirements

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

AGM-38Z Series technical detail 1
AGM-38Z Series technical detail 2

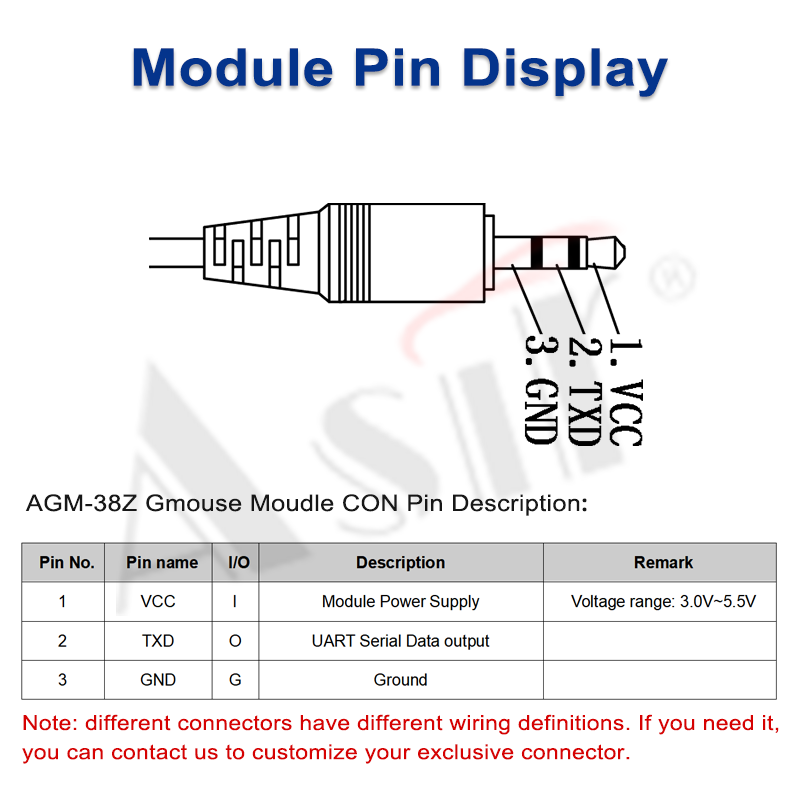

AGM-38Z Series technical detail 3

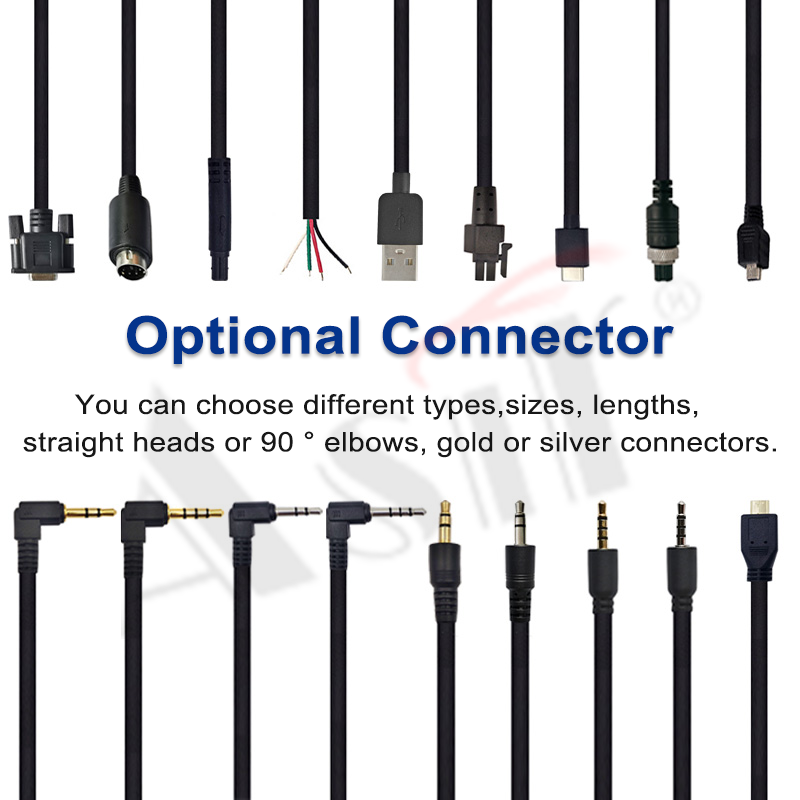

AGM-38Z Series technical detail 4

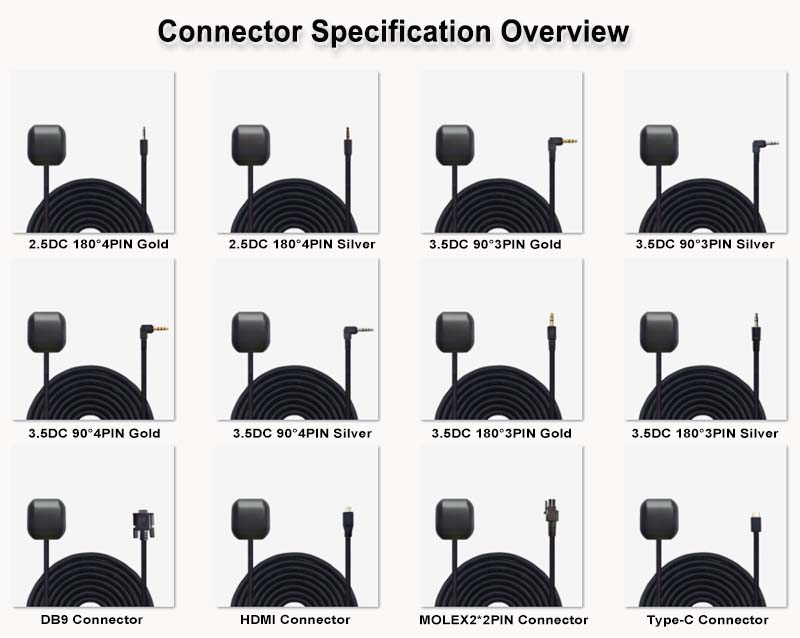

AGM-38Z Series technical detail 5

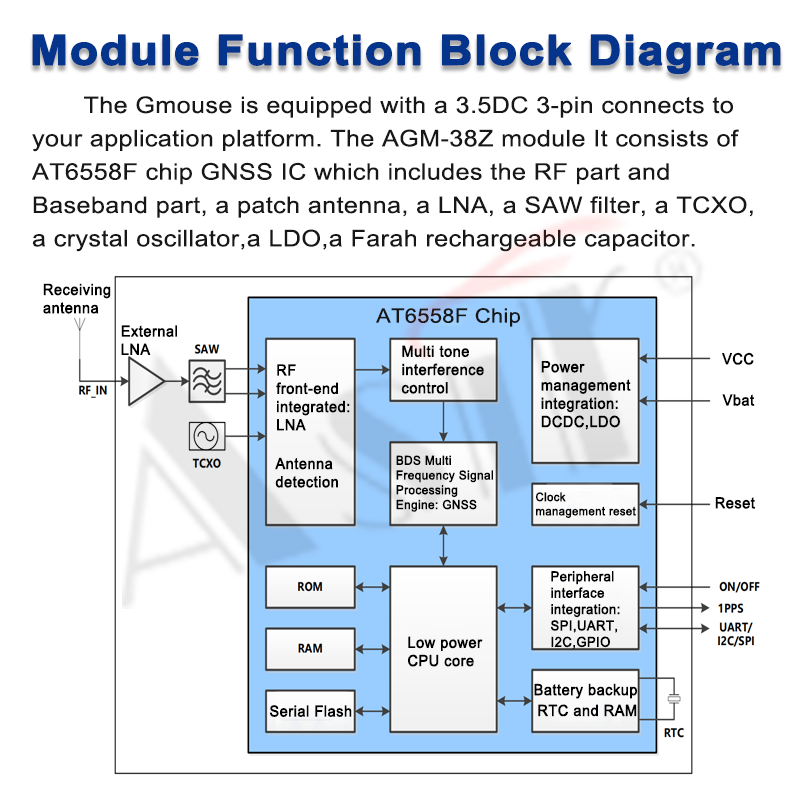

AGM-38Z Series technical detail 6

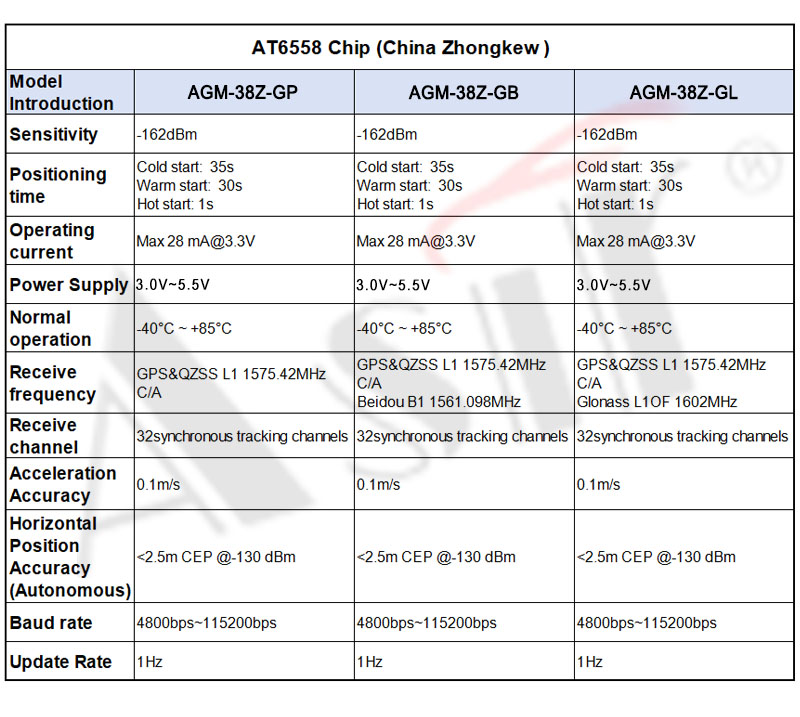

AGM-38Z Series technical detail 7

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for AGM-38Z Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.
