Products / GNSS Gmouse Module

GNSS Gmouse Module

AGM-50M3 Series

AGM-50M3 Series in the AGM-50 Series line, listed under GNSS Gmouse Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet

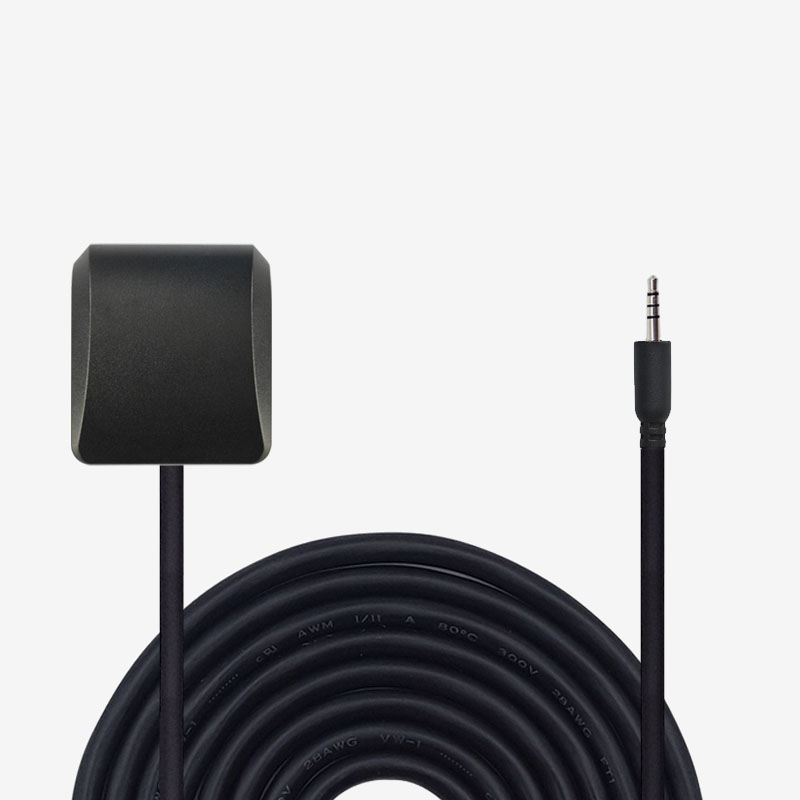

AGM-50M3 Series
AGM-50M3 Series view 1
AGM-50M3 Series view 2
AGM-50M3 Series view 3
AGM-50M3 Series view 4

Quick Selection Notes

  • Main chip: MTK MT3333

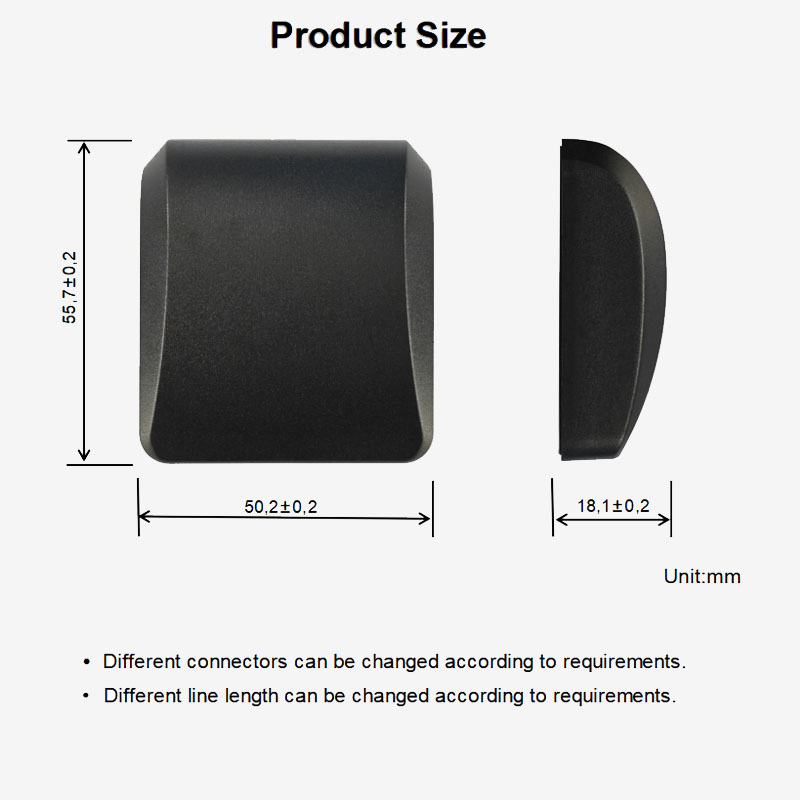

  • Size: 55.7mm x 50.2 mm x 18.1 mm
  • Supply voltage: 3.0V ~ 5.5V

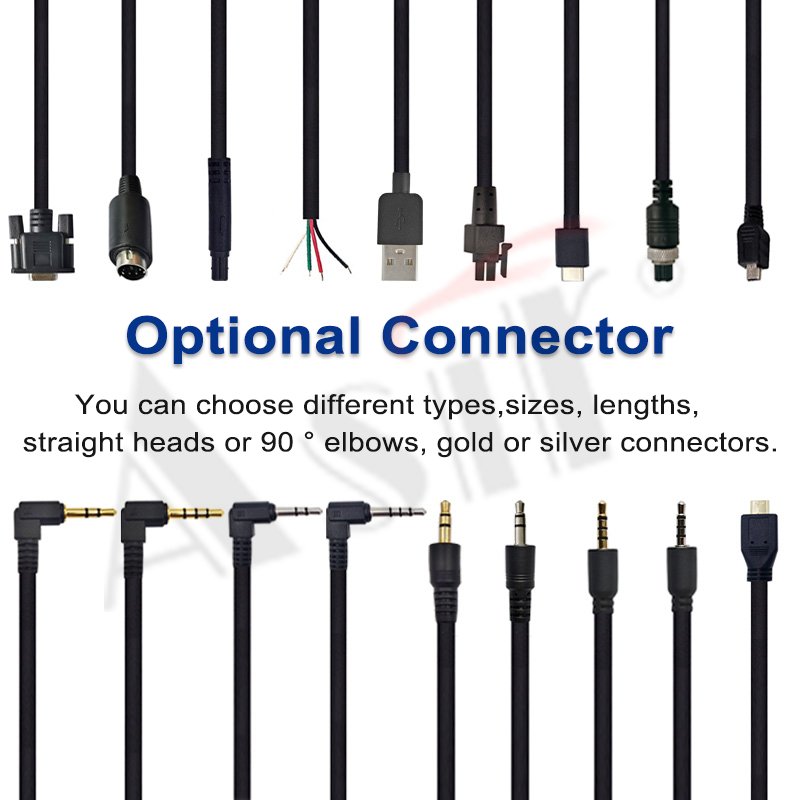

  • Different connectors can be changed according to requirements
  • Different line length can be changed according to requirements
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites

Typical Applications

  • Car tracker
  • Dash cam / DVR
  • Fleet management
  • Marine and industrial devices

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK MT3333
Size55.7mm x 50.2 mm x 18.1 mm
Supply voltage3.0V ~ 5.5V
FeatureDifferent connectors can be changed according to requirements
FeatureDifferent line length can be changed according to requirements
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

AGM-50M3 Series technical detail 1
AGM-50M3 Series technical detail 2
AGM-50M3 Series technical detail 3
AGM-50M3 Series technical detail 4
AGM-50M3 Series technical detail 5
AGM-50M3 Series technical detail 6
AGM-50M3 Series technical detail 7

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for AGM-50M3 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
