Products / GNSS Gmouse Module

GNSS Gmouse Module

AGM-59M2 Series

AGM-59M2 Series in the AGM-59 Series line, listed under GNSS Gmouse Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
AGM-59M2 Series

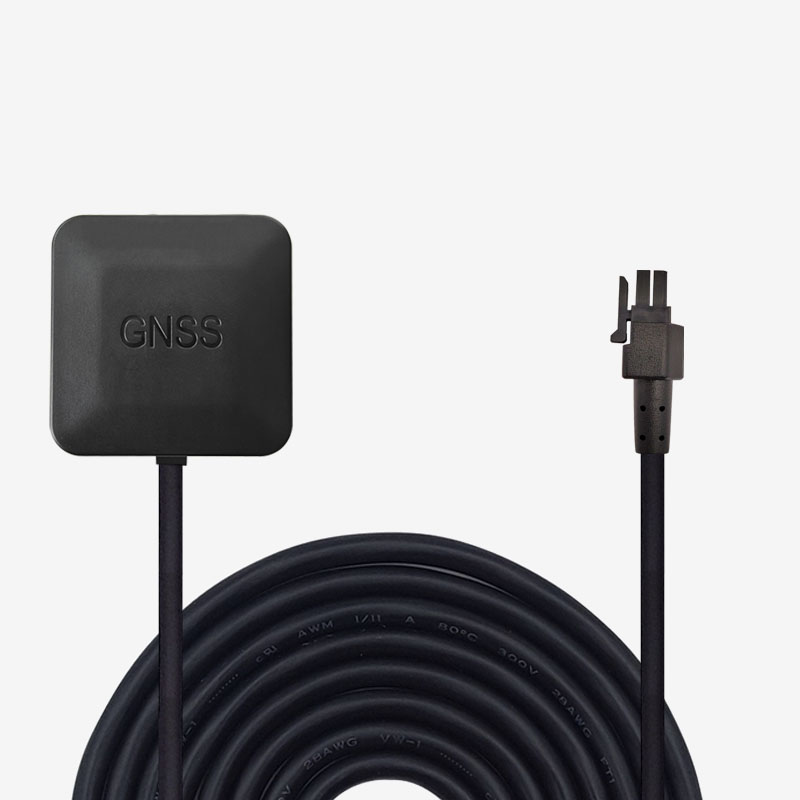

AGM-59M2 Series view 1
AGM-59M2 Series view 2
AGM-59M2 Series view 3
AGM-59M2 Series view 4

Quick Selection Notes

  • Main chip: MTK AG3352

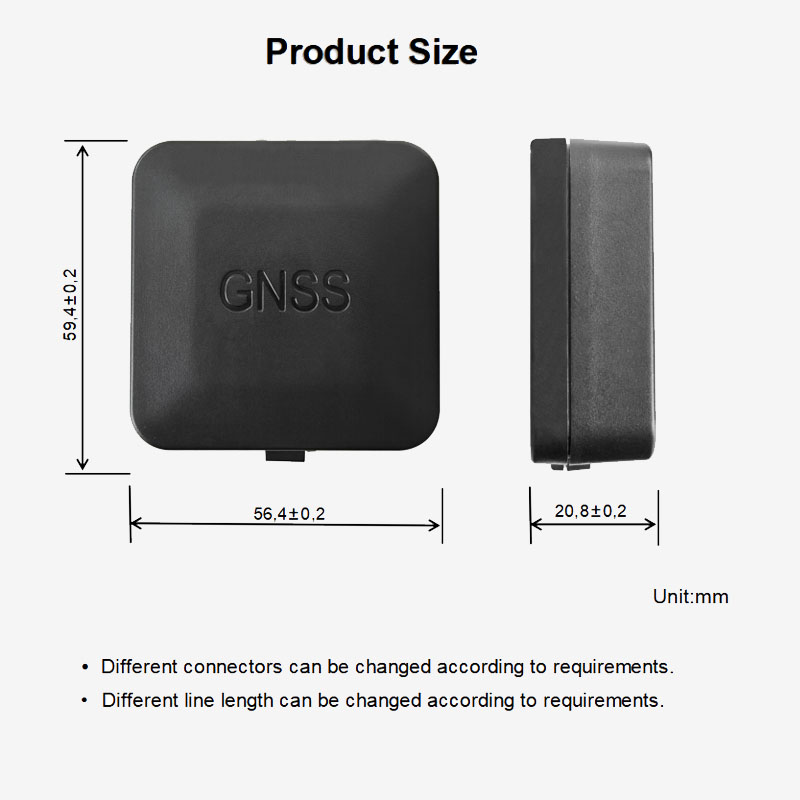

  • Size: 59.4 mm x 56.4 mm x 20.8 mm
  • Supply voltage: 3.0V ~ 5.5V
  • Different connectors can be changed according to requirements
  • Different line length can be changed according to requirements
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites

Typical Applications

  • Car tracker
  • Dash cam / DVR
  • Fleet management
  • Marine and industrial devices

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipMTK AG3352
Size59.4 mm x 56.4 mm x 20.8 mm
Supply voltage3.0V ~ 5.5V
FeatureDifferent connectors can be changed according to requirements
FeatureDifferent line length can be changed according to requirements
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

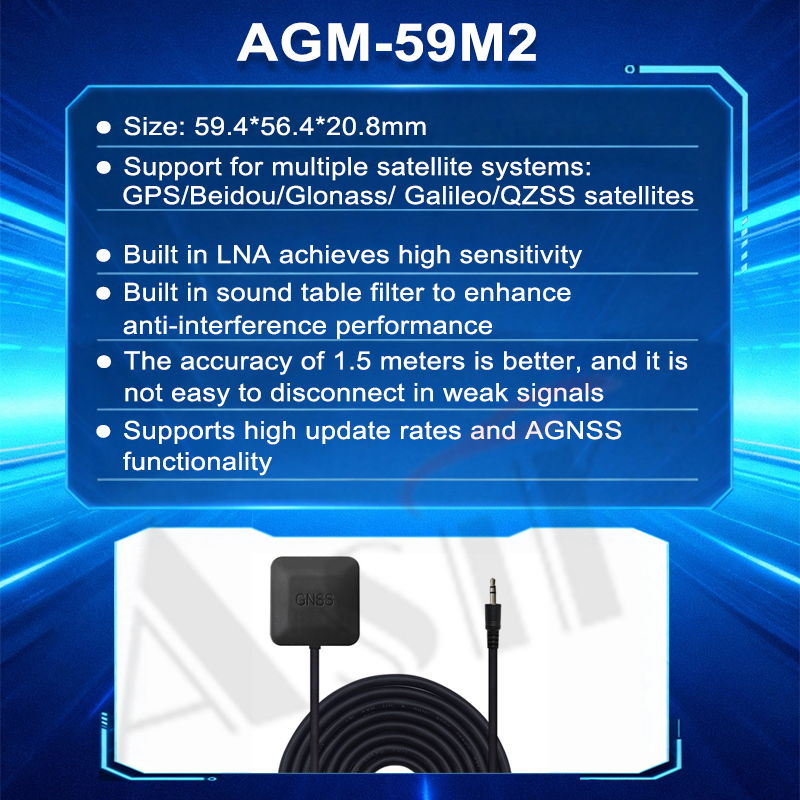

AGM-59M2 Series technical detail 1
AGM-59M2 Series technical detail 2

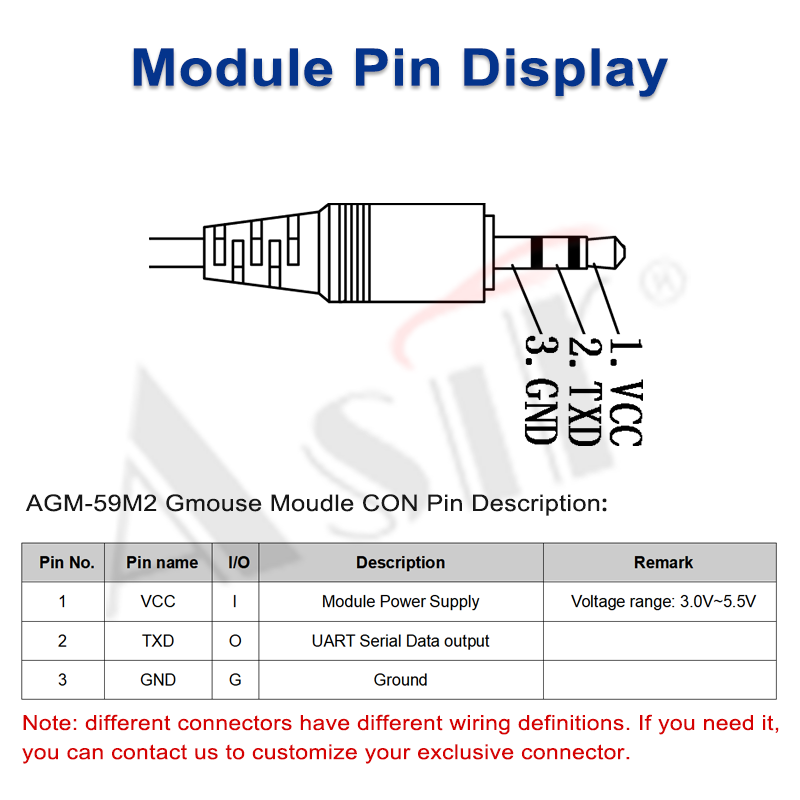

AGM-59M2 Series technical detail 3

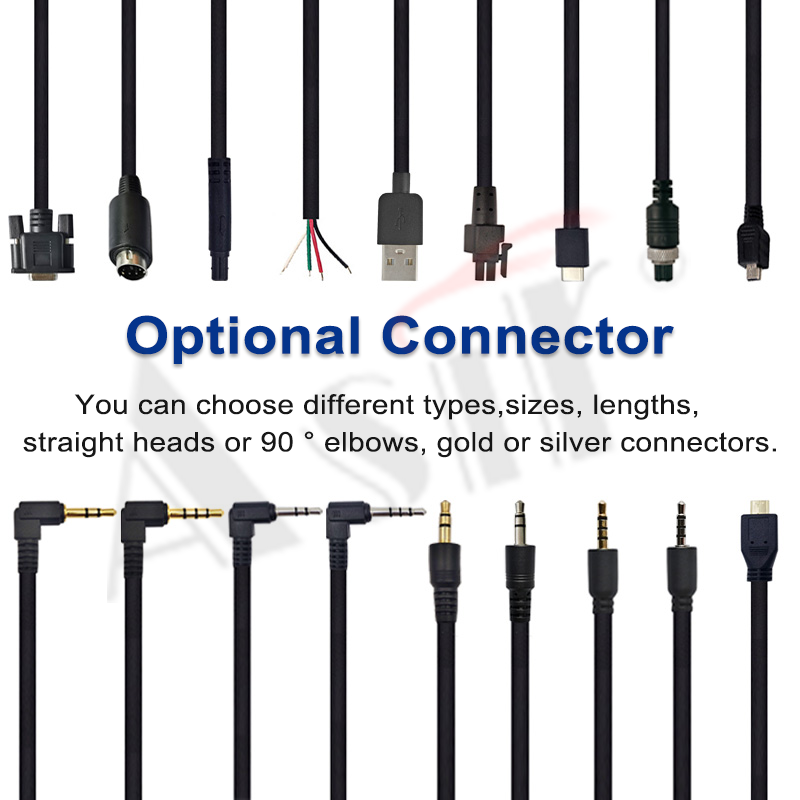

AGM-59M2 Series technical detail 4

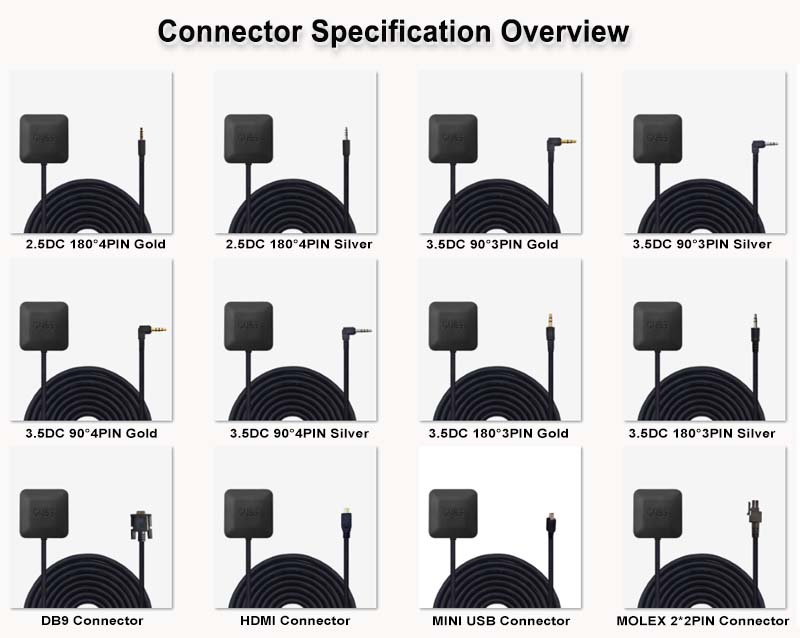

AGM-59M2 Series technical detail 5

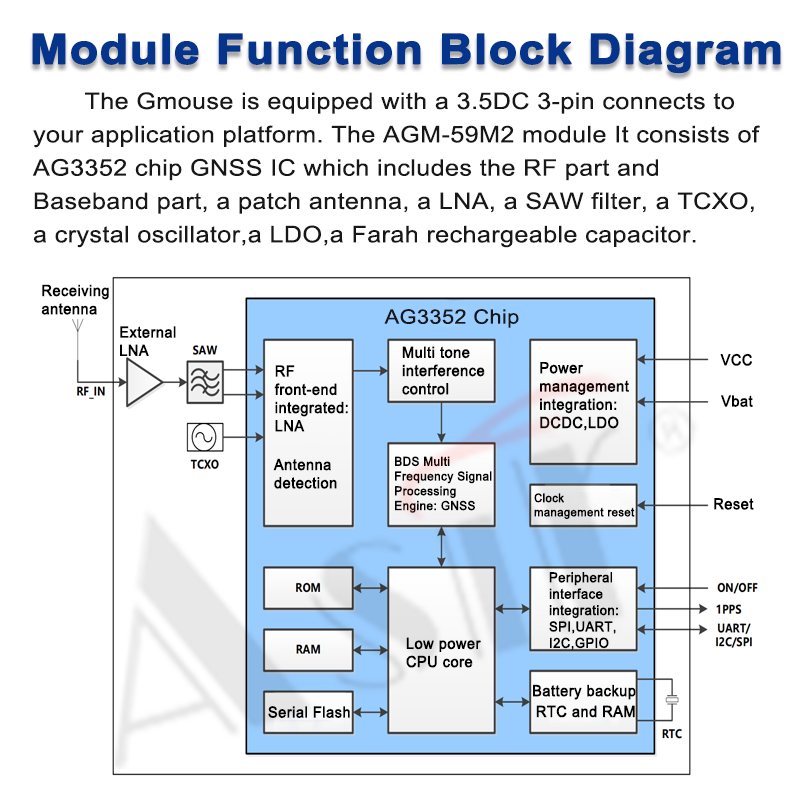

AGM-59M2 Series technical detail 6

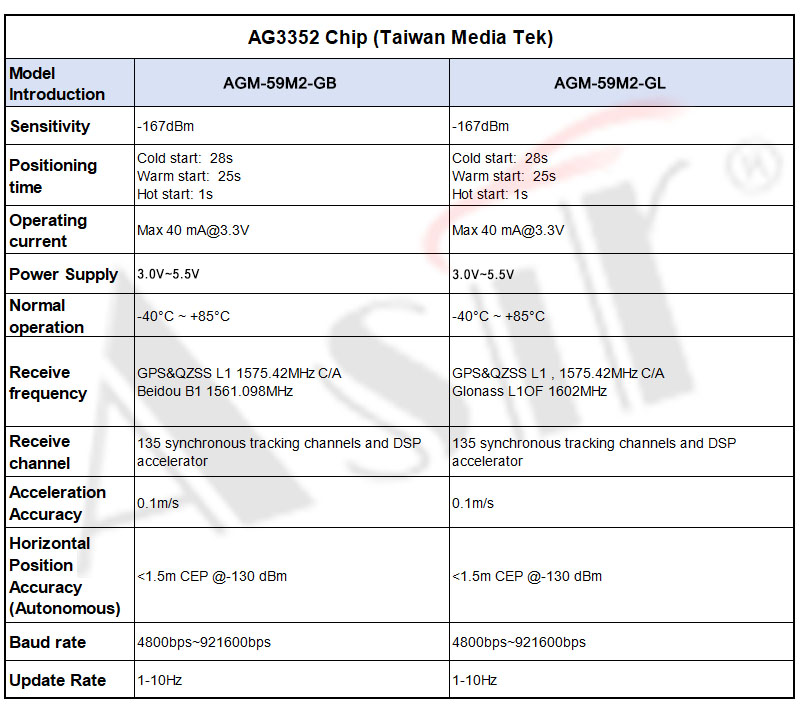

AGM-59M2 Series technical detail 7

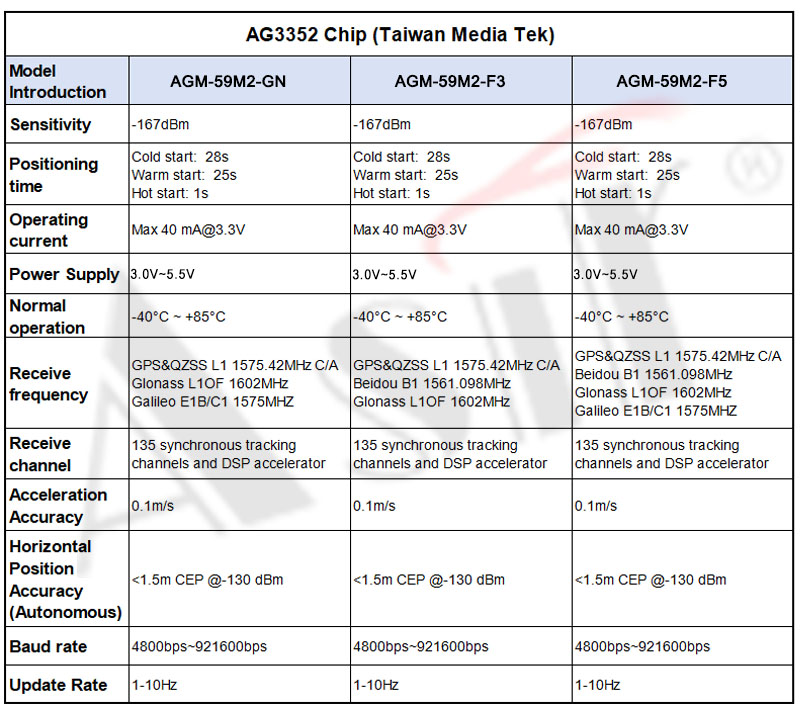

AGM-59M2 Series technical detail 8

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for AGM-59M2 Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.
