Quick Selection Notes
- Main chip: Ublox UBX-10050
- 10.1 x 9.7 x 2.2 mm
- Supply voltage: 3.0V ~ 3.6V
Authorized Export DistributorProducts / GNSS SMD Module
GNSS SMD Module
AS-101US Series

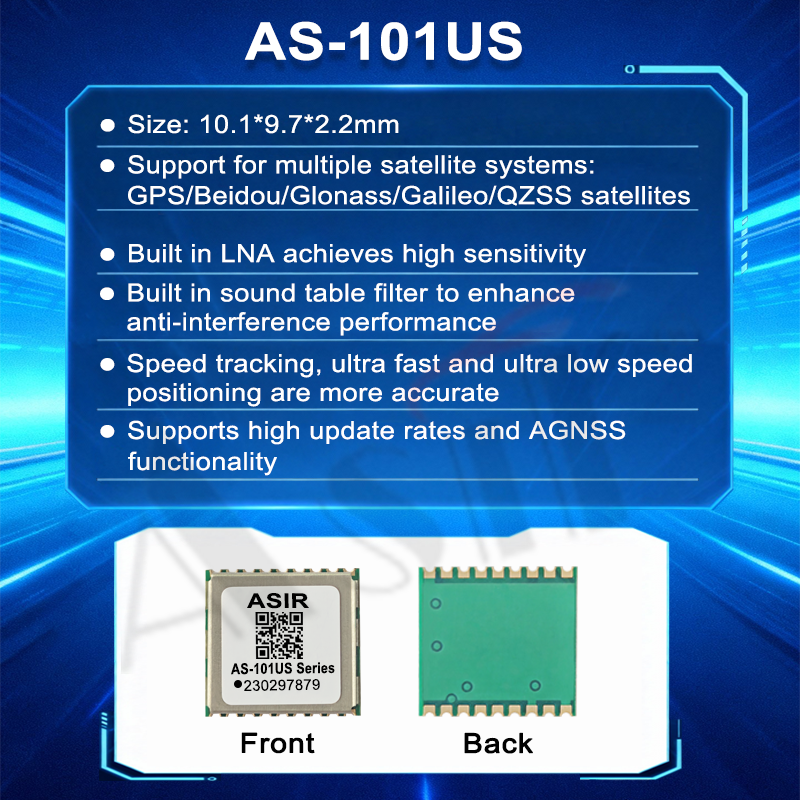

AS-101US Series GNSS SMD module with Ublox UBX-10050 main chip for compact trackers, IoT terminals, and embedded positioning devices.
Typical Applications
- Vehicle trackers
- Asset tracking terminals
- IoT devices
- Portable navigation products

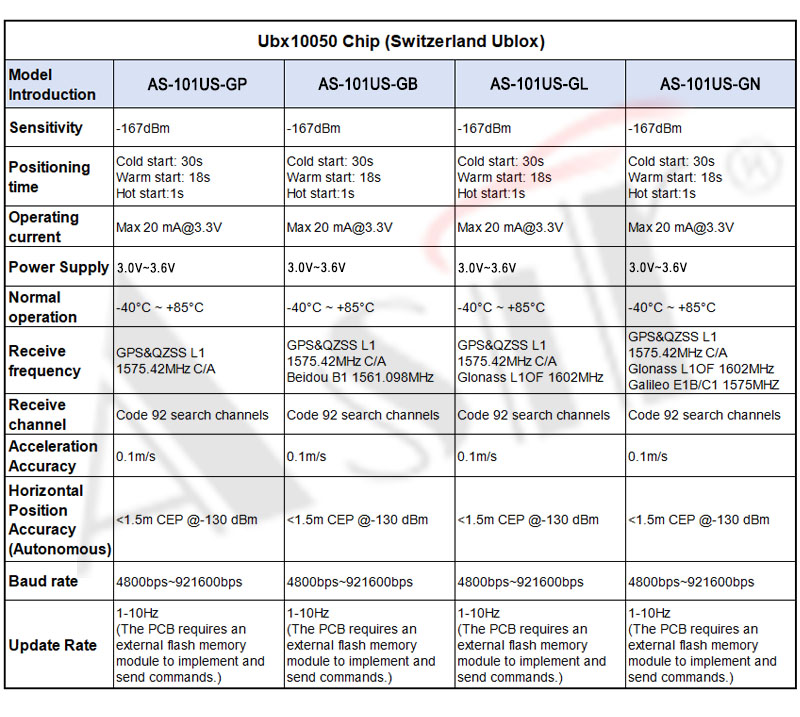

Technical details
Specifications to confirm before order
Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.
Main chipUblox UBX-10050

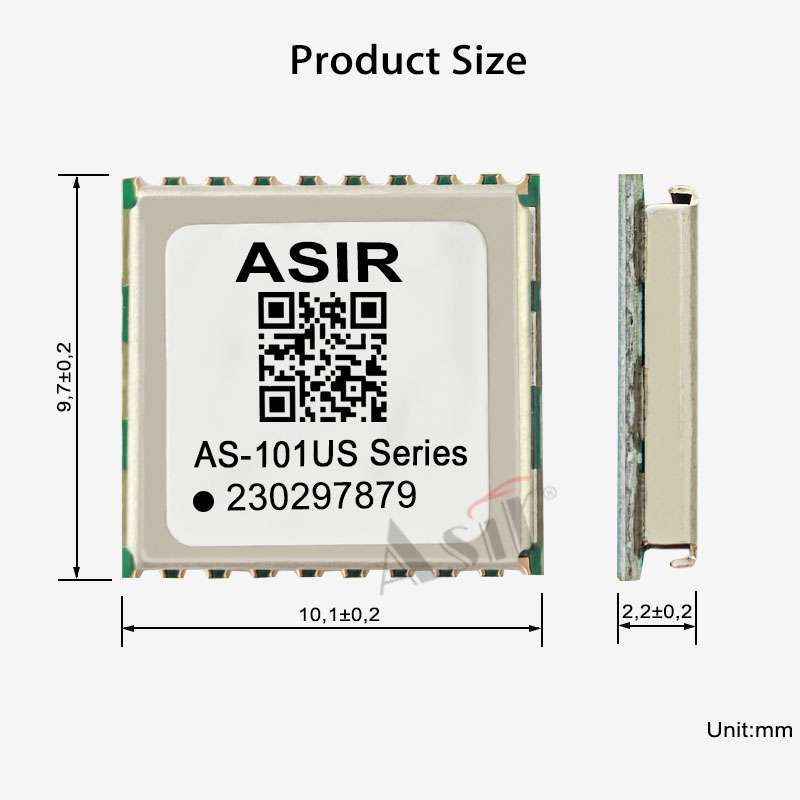

Dimensions10.1 x 9.7 x 2.2 mm
Supply voltage3.0V ~ 3.6V
Satellite systemsGPS, Beidou, Glonass, Galileo, QZSS
Anti-interferenceBuilt-in sound table filter to enhance anti-interference performance
AGNSSSupport AGNSS function
Product details

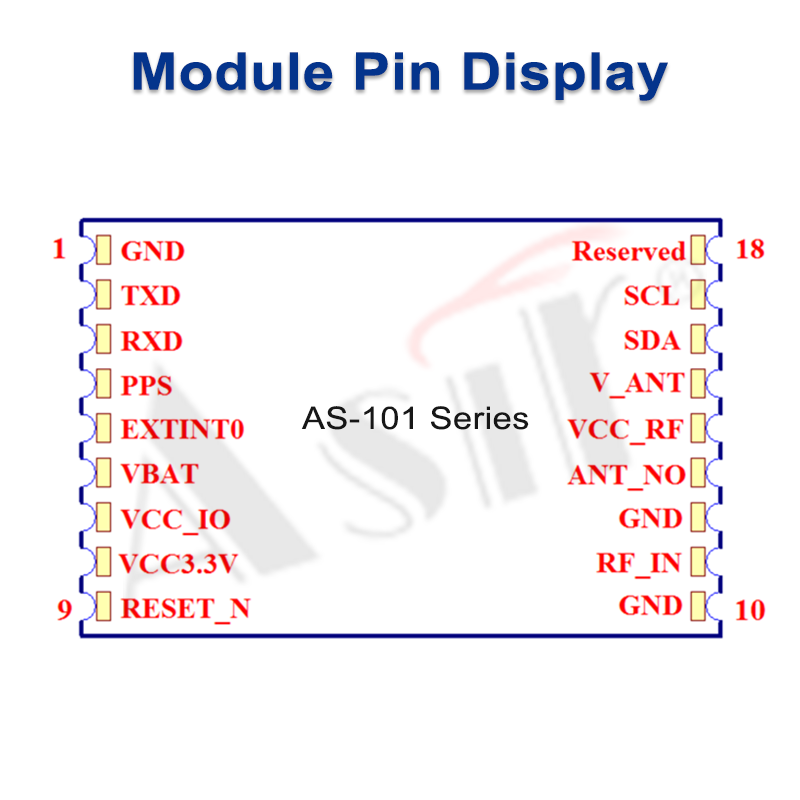

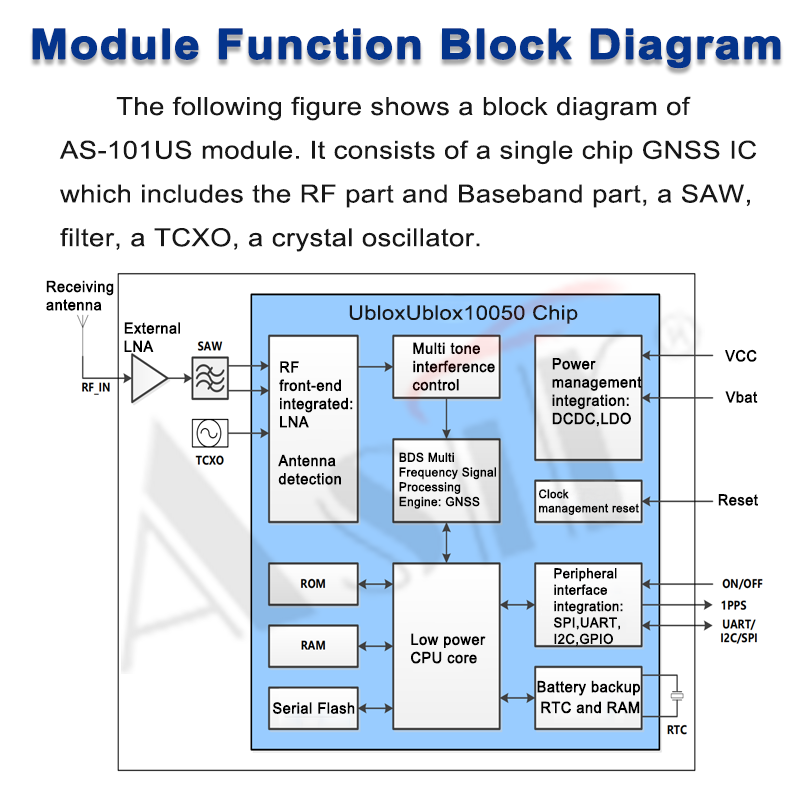

Additional images and drawings
Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.
Procurement checklist
What to include in your inquiry
Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request
RFQ for AS-101US Series
Ask for price, sample, stock and datasheet
Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.
