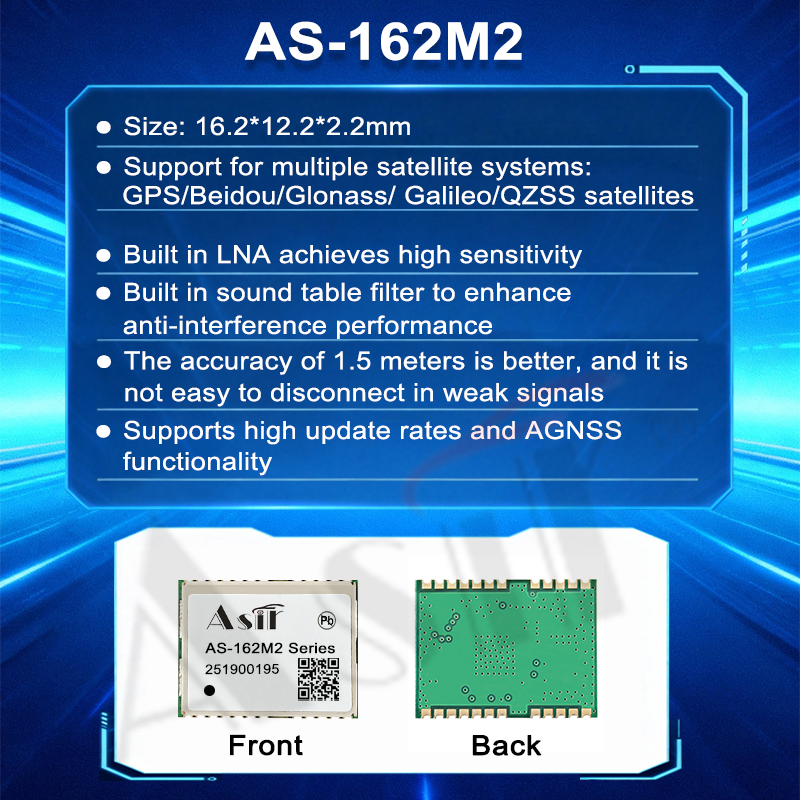

Quick Selection Notes
- Main chip: MTK AG3352
- Size: 16.2 mm x 12.2 mm x 2.2 mm
- Supply voltage: 3.0V ~ 3.6V
- Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
- Support high update rate
- Support AGNSS function
Authorized Export DistributorProducts / GNSS SMD Module
GNSS SMD Module

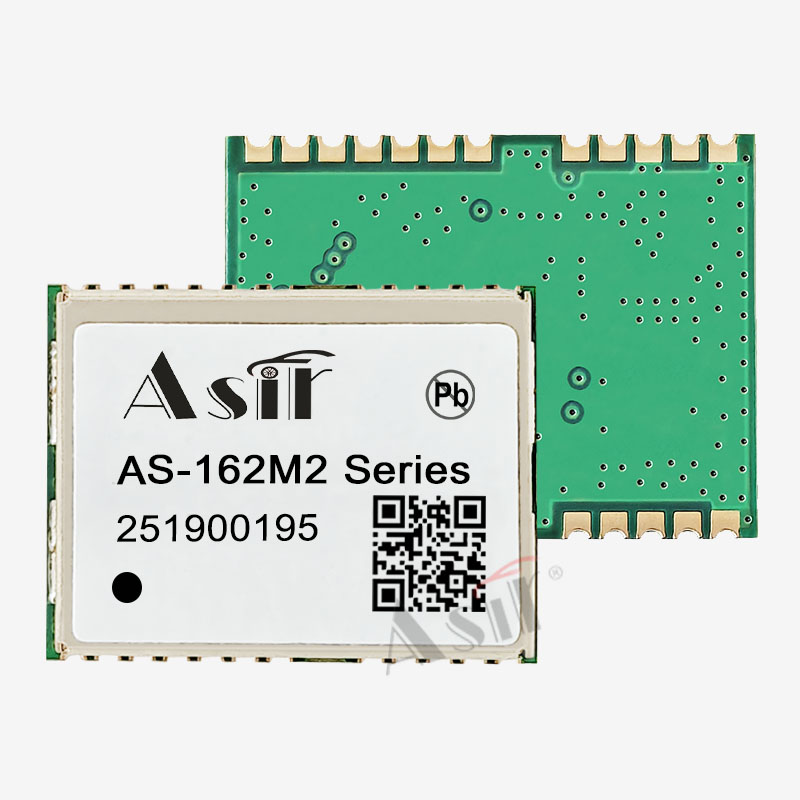

AS-162M2 Series
AS-162M2 Series in the AS-162 Series line, listed under GNSS SMD Module, for export RFQ, sample confirmation, and OEM project sourcing.
Typical Applications
- Vehicle trackers
- Asset tracking terminals
- IoT devices
- Portable navigation products

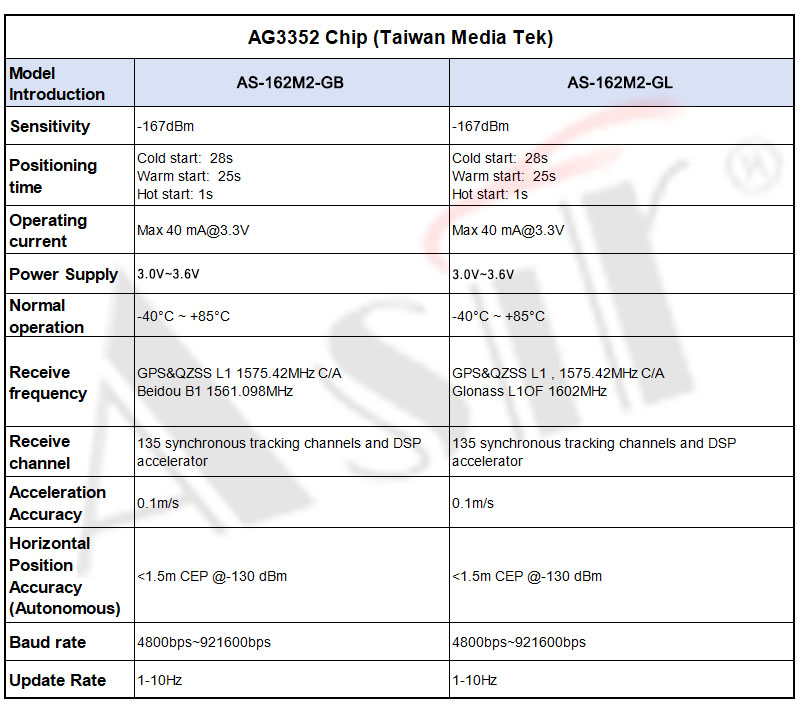

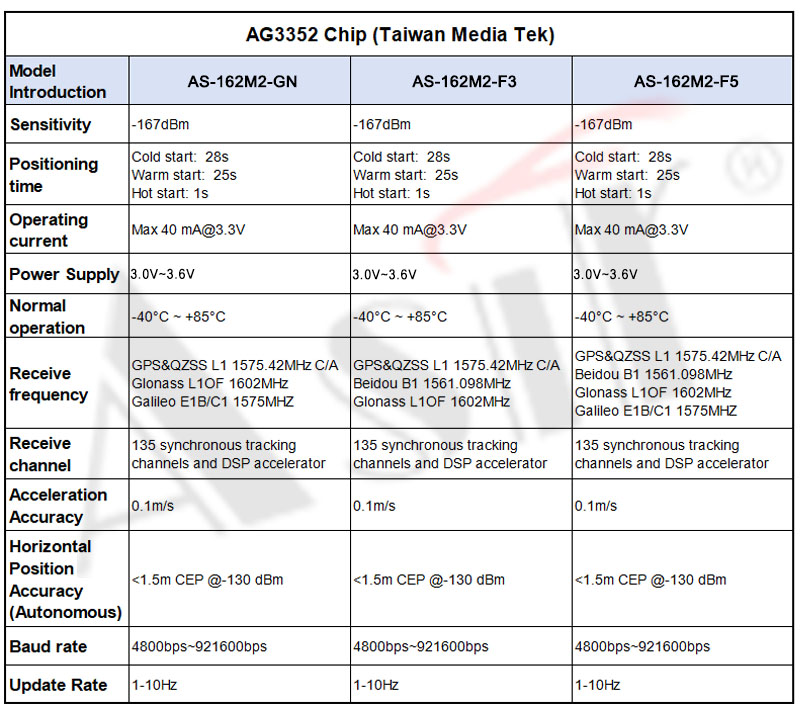

Technical details
Specifications to confirm before order
Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.
Main chipMTK AG3352
Size16.2 mm x 12.2 mm x 2.2 mm
Supply voltage3.0V ~ 3.6V
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
FeatureSupport high update rate
FeatureSupport AGNSS function
Product details

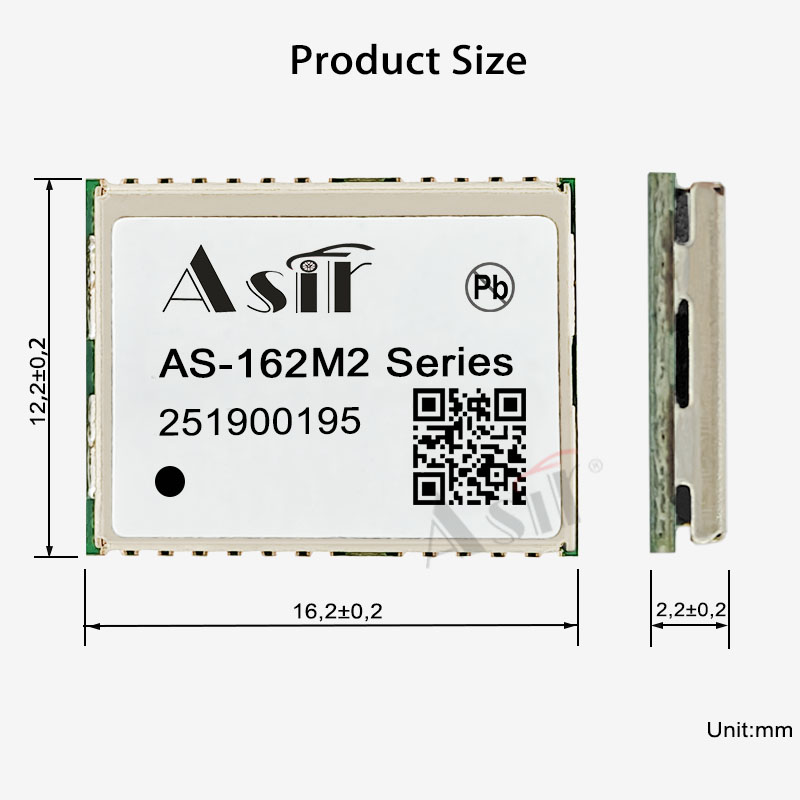

Additional images and drawings
Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.
Procurement checklist
What to include in your inquiry
Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request
RFQ for AS-162M2 Series
Ask for price, sample, stock and datasheet
Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.
