Products / GNSS SMD Module

GNSS SMD Module

AS-101Z Series

AS-101Z Series in the AS-101 Series line, listed under GNSS SMD Module, for export RFQ, sample confirmation, and OEM project sourcing.

Request QuoteRequest Datasheet
AS-101Z Series

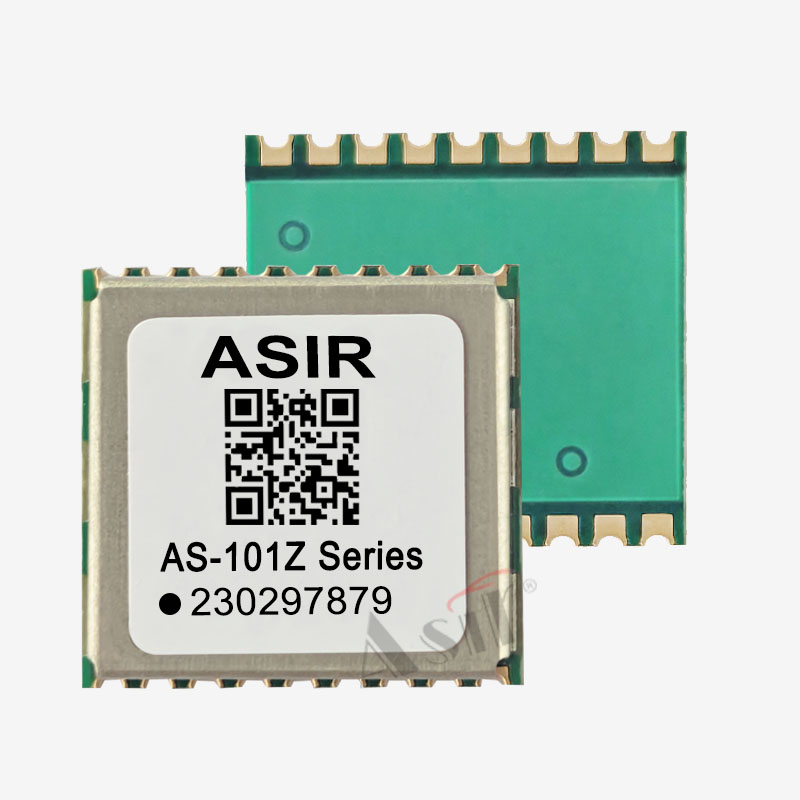

AS-101Z Series view 1

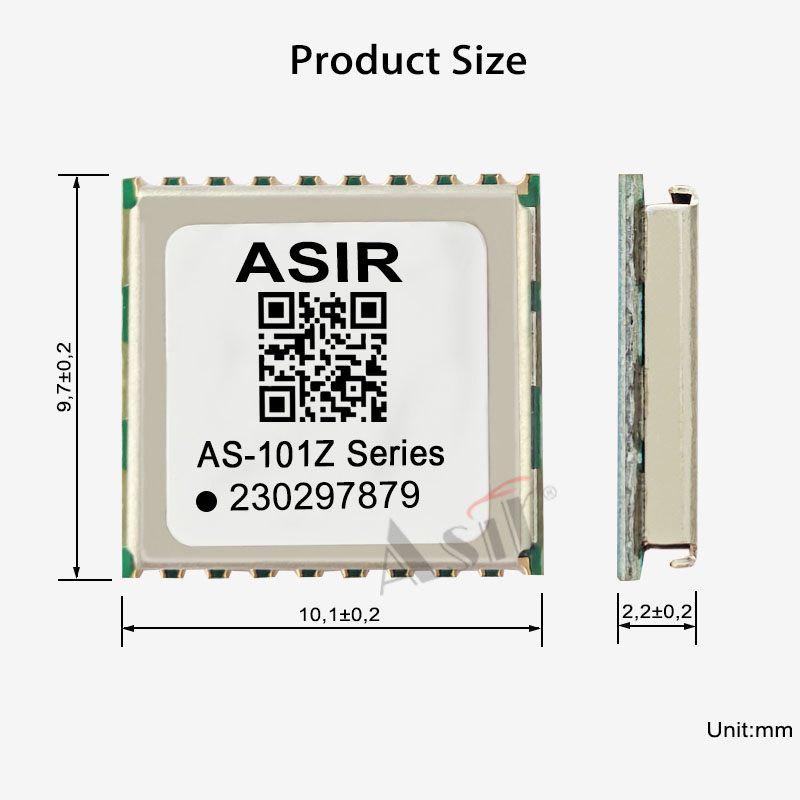

AS-101Z Series view 2
AS-101Z Series view 3

Quick Selection Notes

  • Main chip: AT6558
  • Size: 10.1 mm x 9.7 mm x 2.2 mm
  • Supply voltage: 3.0V ~ 3.6V
  • Built in sound table filter to enhance anti-interference performance
  • Support for multiple satellite systems: GPS, Beidou , Glonass, Galileo, QZSS satellites
  • Support high update rate

Typical Applications

  • Vehicle trackers
  • Asset tracking terminals
  • IoT devices
  • Portable navigation products

Technical details

Specifications to confirm before order

Exact chipset, constellation, interface, protocol and electrical values can vary by sub-model. Send your application and we will match the correct datasheet before quotation.

Main chipAT6558
Size10.1 mm x 9.7 mm x 2.2 mm
Supply voltage3.0V ~ 3.6V
FeatureBuilt in sound table filter to enhance anti-interference performance
Support for multiple satellite systemsGPS, Beidou , Glonass, Galileo, QZSS satellites
FeatureSupport high update rate

Product details

Additional images and drawings

Review available product views, dimensions and technical drawings, then contact us to confirm the current datasheet before ordering.

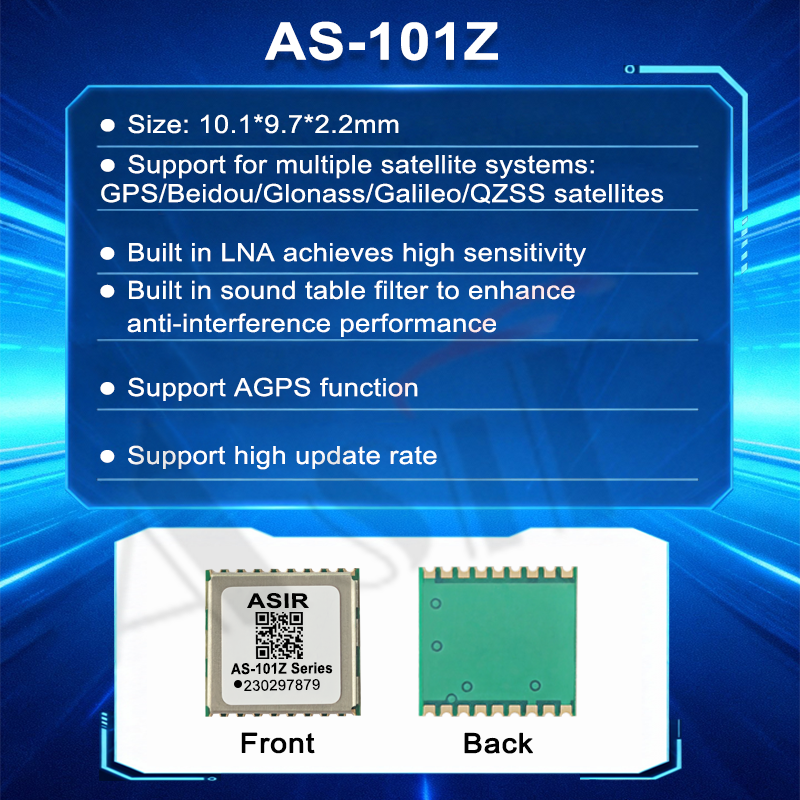

AS-101Z Series technical detail 1
AS-101Z Series technical detail 2

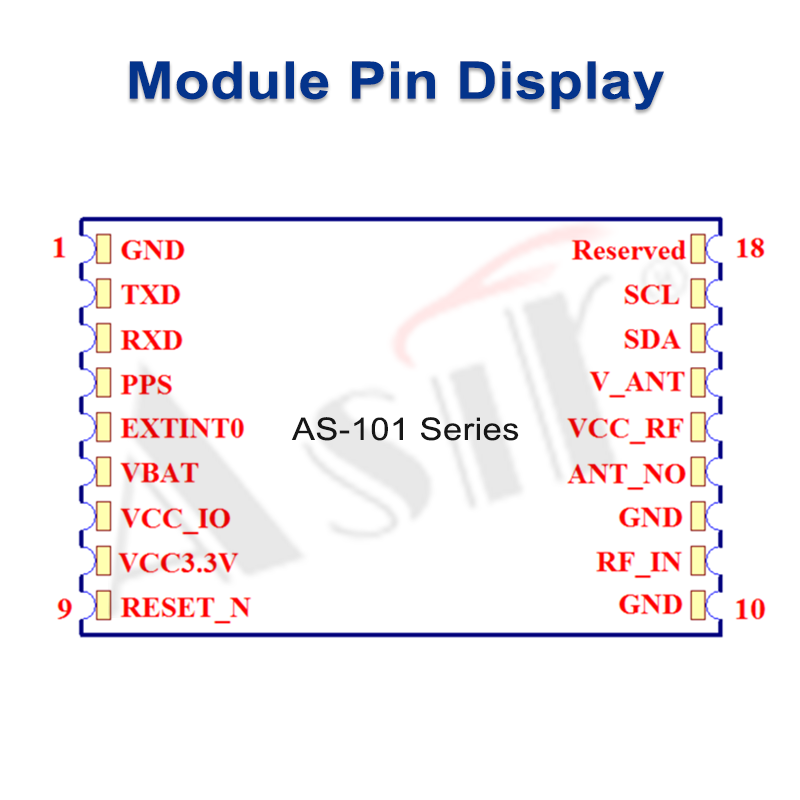

AS-101Z Series technical detail 3

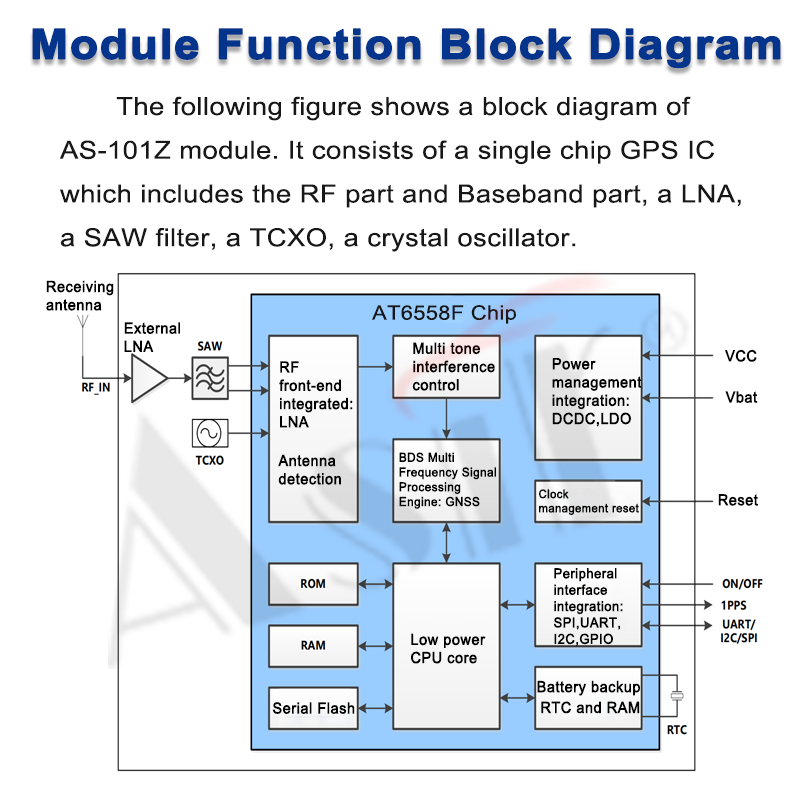

AS-101Z Series technical detail 4

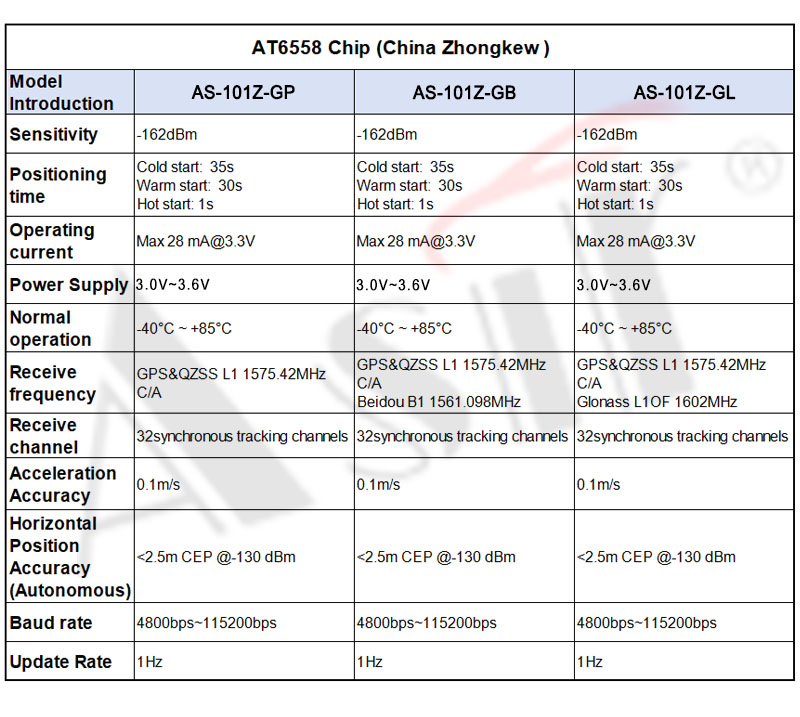

AS-101Z Series technical detail 5

Procurement checklist

What to include in your inquiry

Target model or seriesEstimated order quantitySample and testing planApplication and device typeDestination countryInterface, protocol, connector or packing request

RFQ for AS-101Z Series

Ask for price, sample, stock and datasheet

Send your requirement with quantity, destination country and application details. We can help confirm the model, documents, packing and shipment option.

17687571375@sina.cn17687571375WhatsApp: 176875713745Shenzhen, China
